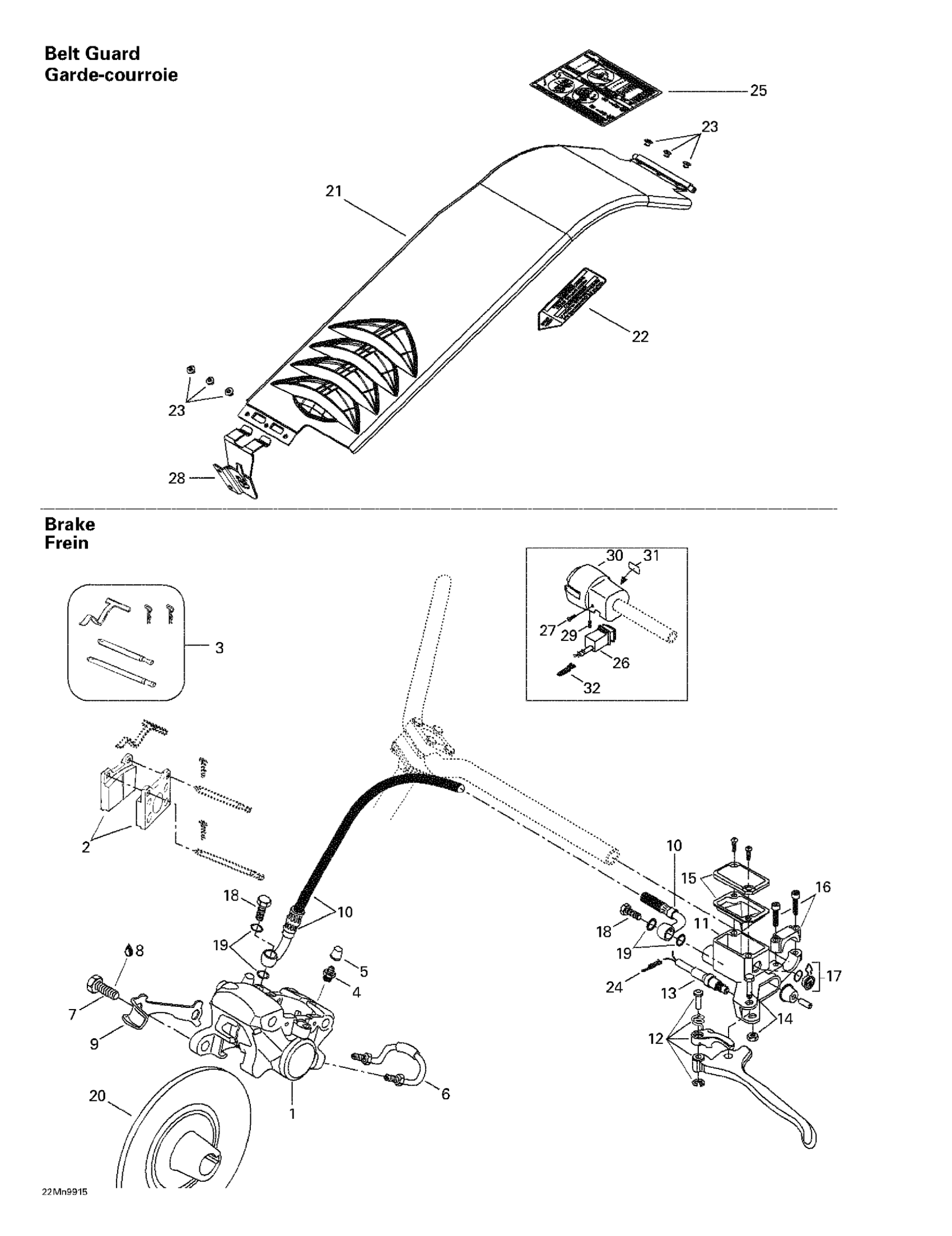

Ski-Doo MX Z 700, 1999 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

Loctite 243, 10 ml

293800060

$21.49

9

Locking Tab

507029900

Unavailable

10

HOSE - Call your local BRP dealership

507032237

Unavailable

11

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

12

LEVER - Call your local BRP dealership

507032428

Unavailable

13

Microswitch Ass'y | MX-Z 600 SB. MX-Z 600 SB Black.

415127696

Unavailable

14

Pin Ass'y

415030000

$19.99

15

Cap

415029900

$41.49

16

Clamp And Screw Kit

507032477

$23.99

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

21

Belt Guard Ass'y | Includes 2 - 4.

417300002

Unavailable

22

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

23

Pop Rivet 3/16"

390402200

$0.35

24

Male Terminal

515175232

$1.58

25

Adjustment Decal | MXZ 600.

516000252

Unavailable

26

Switch

515175393

Unavailable

27

Screw

414473200

Unavailable

28

Bracket

417300001

Unavailable

29

Socket Set Screw M8 X 10

414440800

$4.12

30

Brake Housing

515175307

Unavailable

31

Switch Decal

415025500

Unavailable

32

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable
