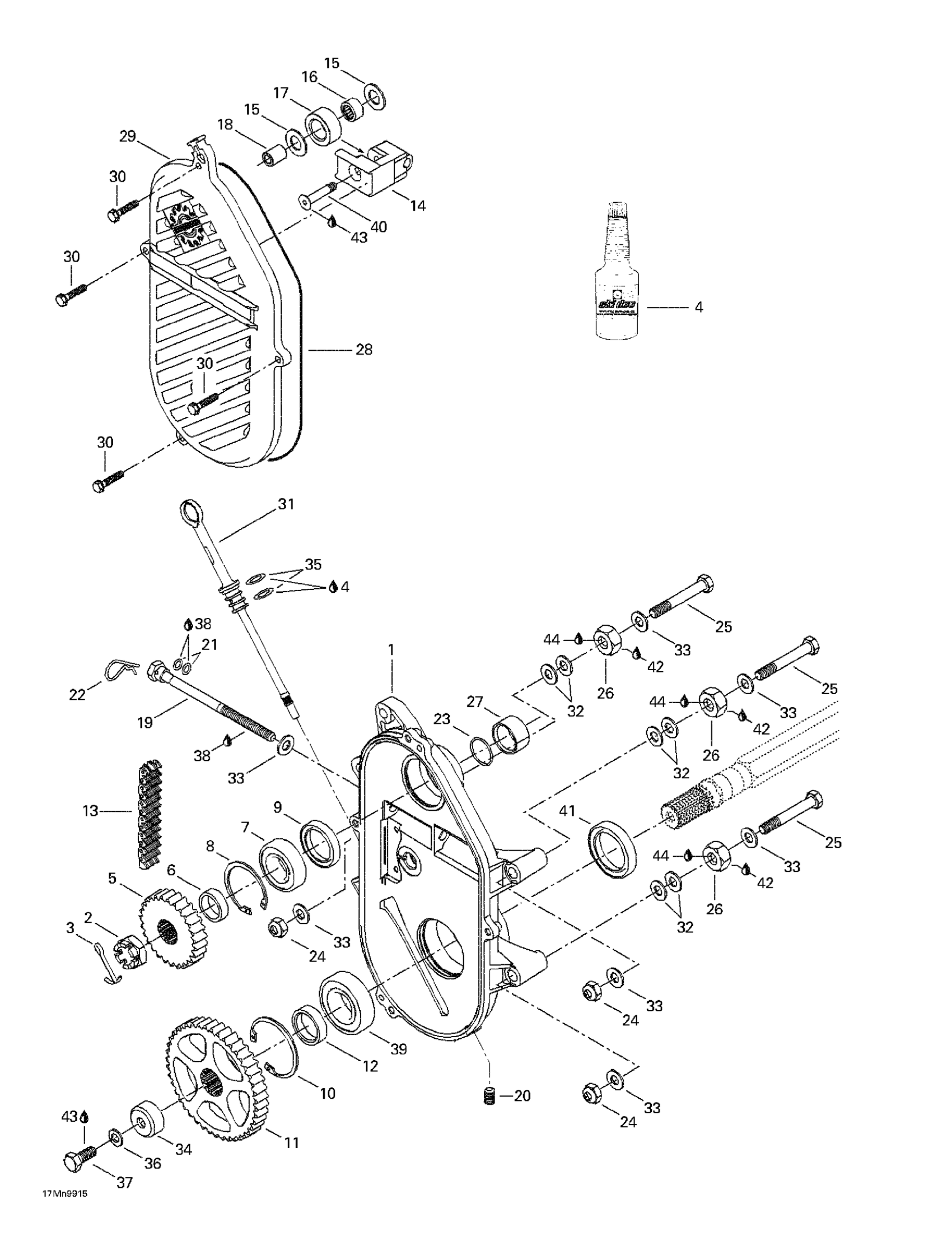

Ski-Doo MX Z 700, 1999 05- Chaincase Diagram
#
Description
Price
1
CHAINCASE - Call your local BRP dealership
504151776
Unavailable
2
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
3
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
4
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
6
Shim
504151903
Unavailable
8
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
10
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
11
43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe
504148500
Unavailable
12
Inner Shim
501021800
Unavailable
13
Drive Chain Large, (76 Links)
412107600
Unavailable
14
MACHINED TENSIONER - Call your local BRP dealership
504081000
Unavailable
15
WASHER - Call your local BRP dealership
504080300
Unavailable
16
NEEDLE BEARING - Call your local BRP dealership
405403000
Unavailable
17
ROLLER - Call your local BRP dealership
414531300
Unavailable
18
SPACER - Call your local BRP dealership
504080200
Unavailable
19
ADJUSTMENT SCREW - Call your local BRP dealership
732601314
Unavailable
23
O-RING - Call your local BRP dealership
414876700
Unavailable
25
HEX. SCREW M10 X 80 - Call your local BRP dealership
207108044
Unavailable
26
Spacer
504083800
Unavailable
27
SPACER - Call your local BRP dealership
507031500
Unavailable
29
Chaincase Cover
080044000
Unavailable
31
FILLER CAP ASS'Y - Call your local BRP dealership
504151703
Unavailable
32
WASHER - Call your local BRP dealership
504073700
Unavailable
34
Cap
501022400
Unavailable
35
O-RING - Call your local BRP dealership
414969400
Unavailable
36
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
38
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
40
SCREW - Call your local BRP dealership
732601144
Unavailable
42
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
