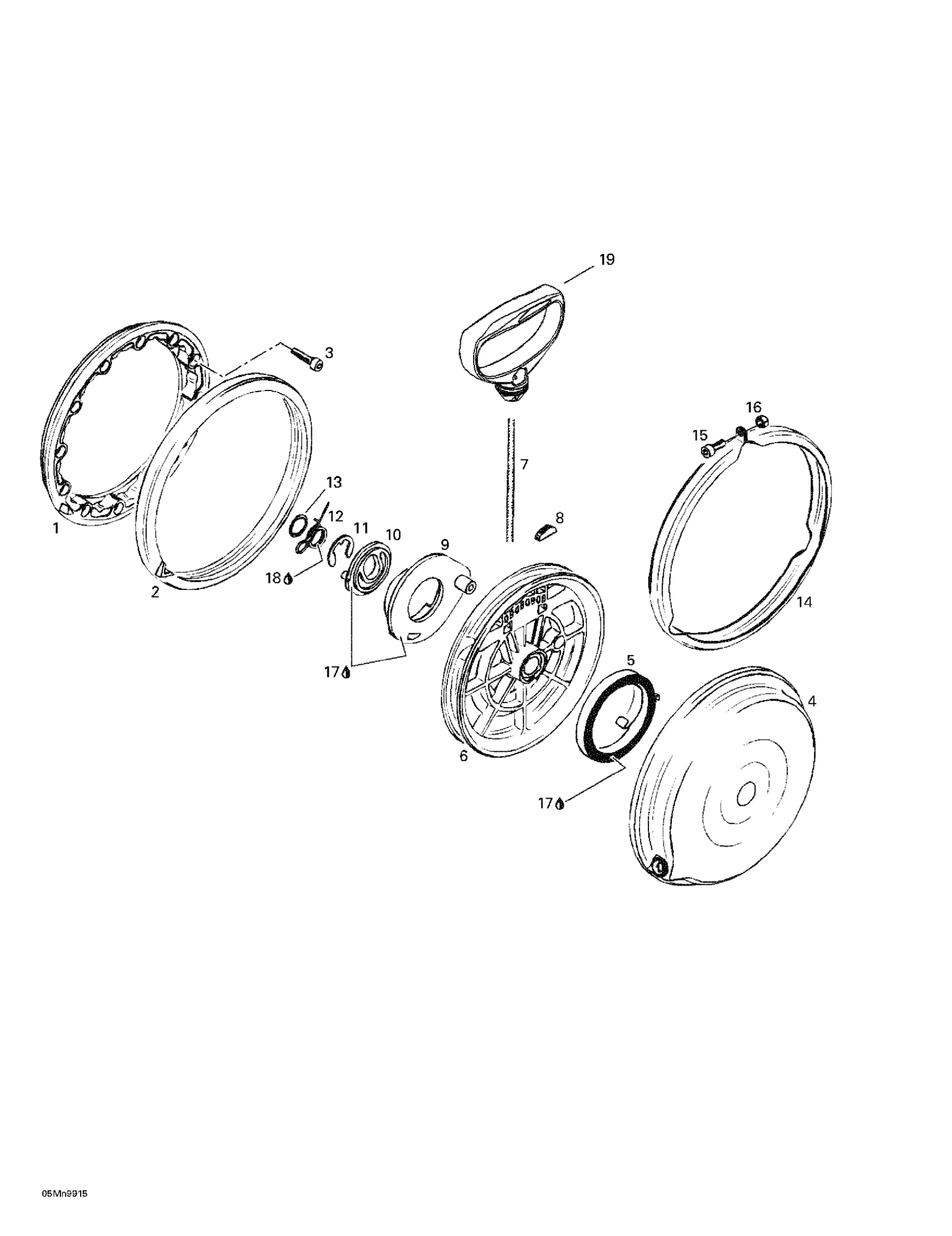

Ski-Doo MX Z 700, 1999 04- Rewind Starter Diagram

#

Description
Price

1

Connecting Flange | Skandic 600.

420810860

Unavailable

2

DAMPER RING - Call your local BRP dealership | Skandic 600.

420860950

Unavailable

3

Socket Head Screw M6 X 25

205062544

$1.15

4

Rewind Starter Ass'y | Includes 4 - 13. Formula 500 LC.

420887442

Unavailable

4

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$270.49

5

Rewind Spring

420939115

$30.49

6

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

420852284

Unavailable

7

Was 412500100 Rope-Starter

219704403

$158.99

8

Key Clamp

420852070

$4.23

9

Pawl

420852296

$20.99

10

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

11

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

12

Pawl Spring

420938986

$9.27

13

LOCK RING - Call your local BRP dealership

420945770

Unavailable

14

Clamp | Skandic 600.

420851330

Unavailable

15

Socket Head Screw M6 x 16

420241237

$2.22

16

Elastic Stop Nut M6

232561414

$0.55

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Starter Grip

572084400

$14.83
