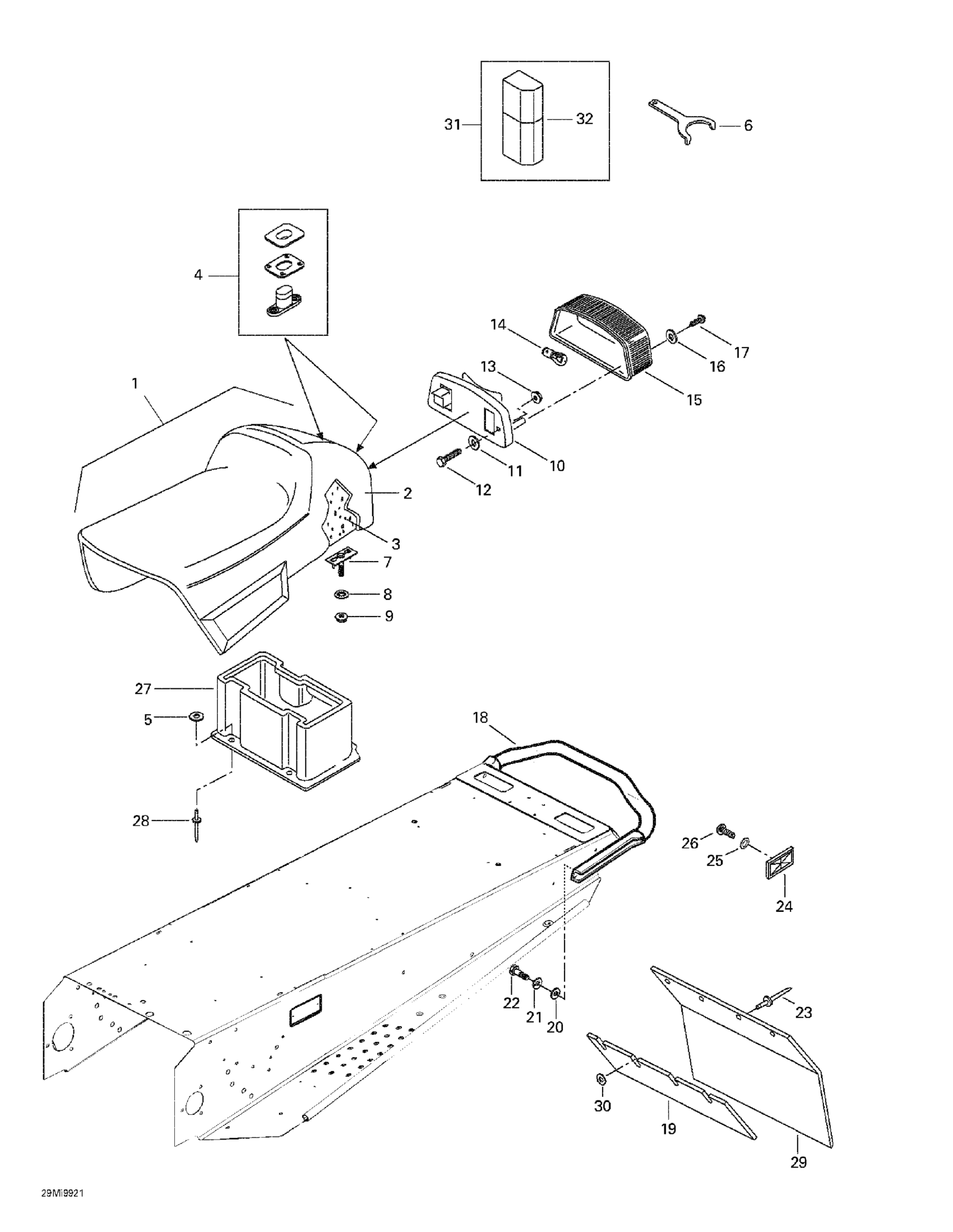

Ski-Doo MX Z 670 HO T.H., 1999 09- Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover

510003652

Unavailable

3

Foam Seat (1 pass.)

414891300

Unavailable

4

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

REAR BUMPER - Call your local BRP dealership

518318200

Unavailable

19

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

Rivet (Black) 3/16 | Formula 500 LC.

390909600

Unavailable

24

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

25

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

26

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

27

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

28

Pop Rivet 3/16"

293150100

$1.09

29

Snow Gard (Yellow)

572101500

Unavailable

30

Flat Washer

517225900

$0.18

31

Tool Kit

529027900

Unavailable

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

Socket Wrench 10/13 mm

529014900

$0.94

Socket Wrench 21/26 mm

529014800

Unavailable

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

Was 412500100 Rope-Starter

219704403

$158.99

Starter Grip

529000060

$14.15

Spacing Tool

529035501

$4.72

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

32

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
