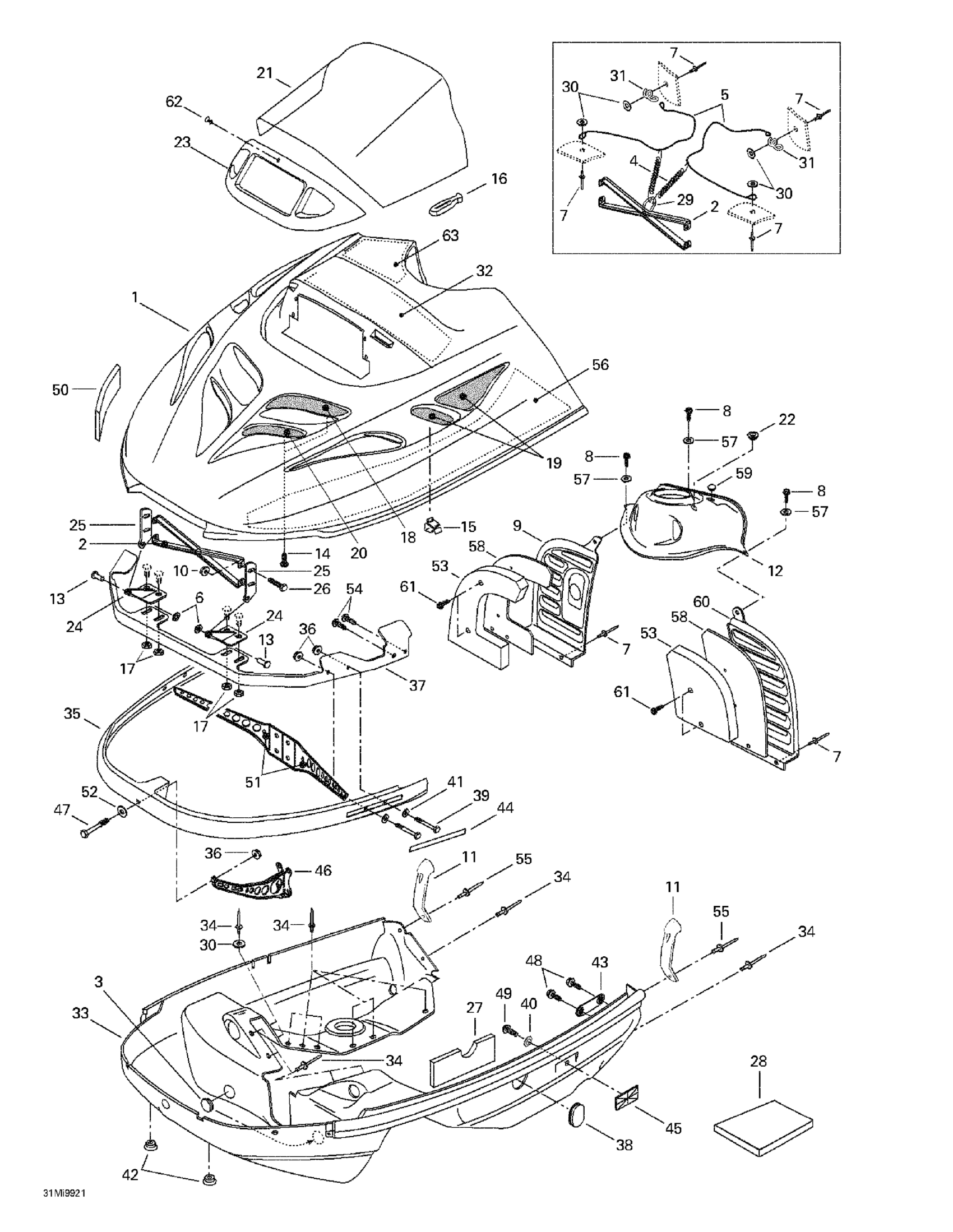

Ski-Doo MX Z 670 HO T.H., 1999 09- Cab, Console Diagram

#

Description
Price

1

Hood (Yellow)

517302097

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Rubber Cover

570041600

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.53

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Forming Screw M5 x 16

250000676

$1.01

9

RH Console

517302163

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.04

11

Hood Latch

570027100

$13.49

12

Switch Dash | MX Z 670 HO.

517302161

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Edge Clip

517302785

$0.88

16

Windshield Latch

570023800

$4.49

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

RH Upper Grill Ass'y

517298400

Unavailable

LH Upper Grill Ass'y

517298500

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Lower Grill

517298600

Unavailable

LH Lower Grill

517298700

Unavailable

21

Low Windshield

415057700

Unavailable

22

Bumper Plug, Black

291000339

$2.99

23

Lamp Moulding

572079200

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Foam

415028100

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

$0.19

31

Bracket

517262800

Unavailable

32

Center Foam

414985100

Unavailable

33

Bottom Pan | MX Z 670 HO.

502006534

Unavailable

34

Pop Rivet 3/16"

390906800

$0.93

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hinge Bracket

517296600

Unavailable

38

Bottom Pan Cap (Yellow) | MX Z 380 F.

570053704

Unavailable

39

Hex. Screw M6 X 30

207063044

$1.26

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.53

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

Hex. Screw M6 X 40

207064044

$1.48

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Reflection Sheet (In Hood) | Formula Deluxe 583. Formula Deluxe 670.

415049100

Unavailable

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

$1.37

53

RH Console Foam

415100100

Unavailable

LH Console Foam

415100200

Unavailable

54

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

55

Pop Rivet 3/16"

390906800

$0.93

56

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

57

Washer | DS 650 X

391301600

$0.48

58

RH Console Plate

517297300

Unavailable

LH Console Plate

517297400

Unavailable

59

Cap | MX Z 670 HO.

572096200

Unavailable

60

LH Console

572103000

Unavailable

61

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

62

Black, Dart

414644300

$0.98

63

Upper Foam

414975000

Unavailable
