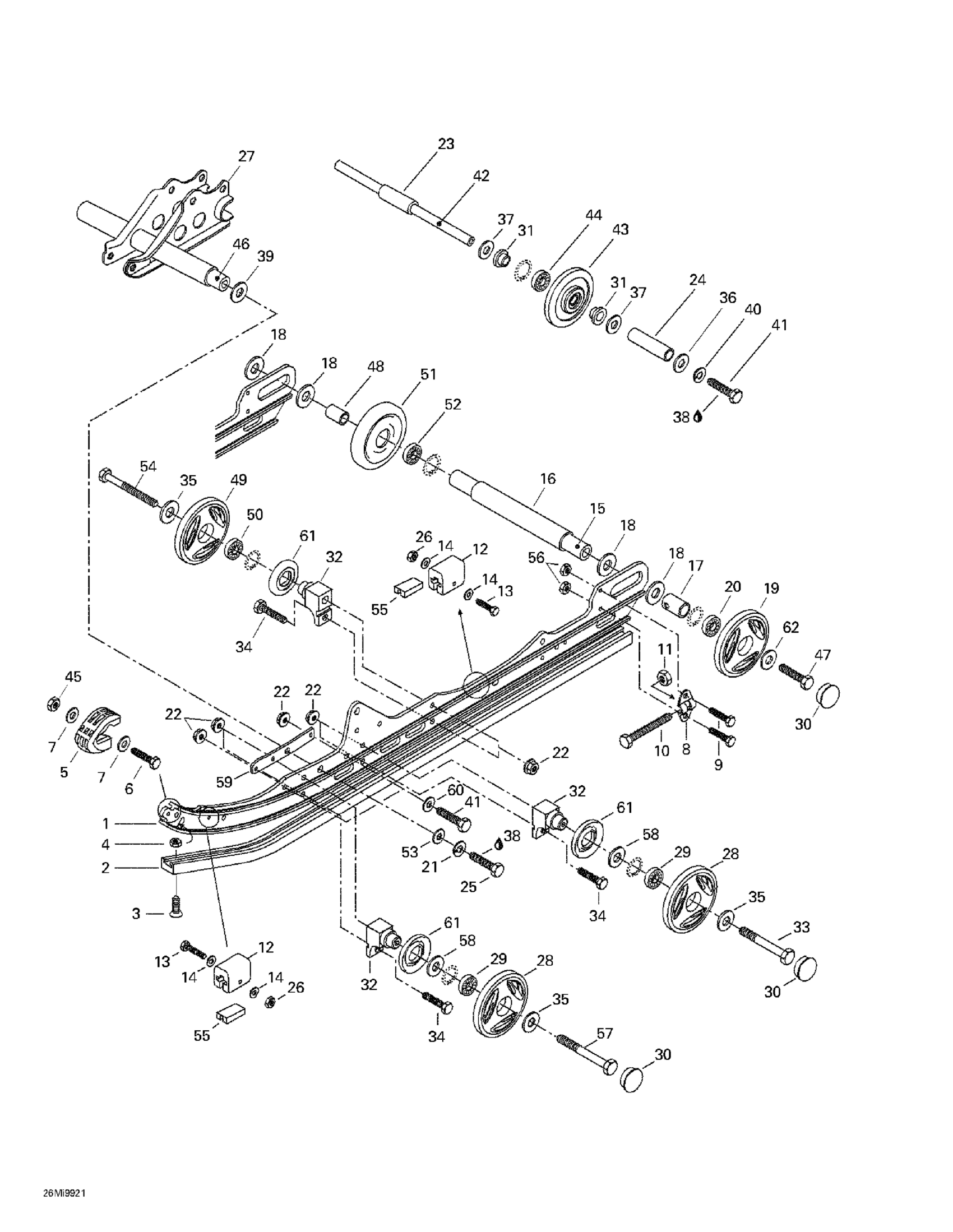

Ski-Doo MX Z 670 HO T.H., 1999 08- Rear Suspension Diagram

#

Description
Price

1

Runner (121")

503188960

Unavailable

2

Runner Shoe

560103300

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$139.99

16

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

17

Outer Spacer

503189809

$18.89

18

Washer

503180400

$3.49

19

Wheel 165" | Includes 670 to 670b

503194127

$51.99

20

Ball Bearing

293350115

$12.11

21

Lock Washer 12 mm

224721218

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Spacer

503153100

Unavailable

24

External Spacer

503188951

Unavailable

25

Hex. Screw M12 x 40

222024065

Unavailable

26

Elastic Stop Nut M5

232551414

$0.87

27

Welded Shock Support

503188976

Unavailable

28

Wheel 135

503191029

$33.99

29

Ball Bearing

293350115

$12.11

30

Wheel Cap

570063600

$3.49

31

Cushion

503189534

$4.76

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

34

Hex. Screw M8 X 25

207182544

$0.90

35

Washer

503183100

$3.17

36

Yellow, Washer

503183200

$3.19

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Loctite 243, 10 ml

293800060

$21.49

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

$0.92

41

Hex. Screw M8 X 30

207183044

$1.15

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

$12.11

45

Elastic Stop Nut M5

232551414

$0.87

46

Lower Axle

503174900

Unavailable

47

Hex. Screw With Nylon

250000019

$1.69

48

Inner Spacer

503182900

$12.58

49

Wheel 135

503191029

$33.99

50

Ball Bearing

293350115

$12.11

51

Wheel 165" | Includes 670 to 670b

503194127

$51.99

52

Ball Bearing

293350115

$12.11

53

Flat Washer 12 mm

234021410

$0.72

54

Hex. Screw M8 X 80

207088044

$1.68

55

Reinforcement Stopper

572084800

$12.99

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

57

Hex. Screw M8 X 90

207089044

$3.48

58

WASHER - Call your local BRP dealership

503173700

Unavailable

59

Reinforcement Plate

503189060

Unavailable

60

Flat Washer 8 mm

234081410

$0.83

61

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

62

Washer

503183300

$5.82
