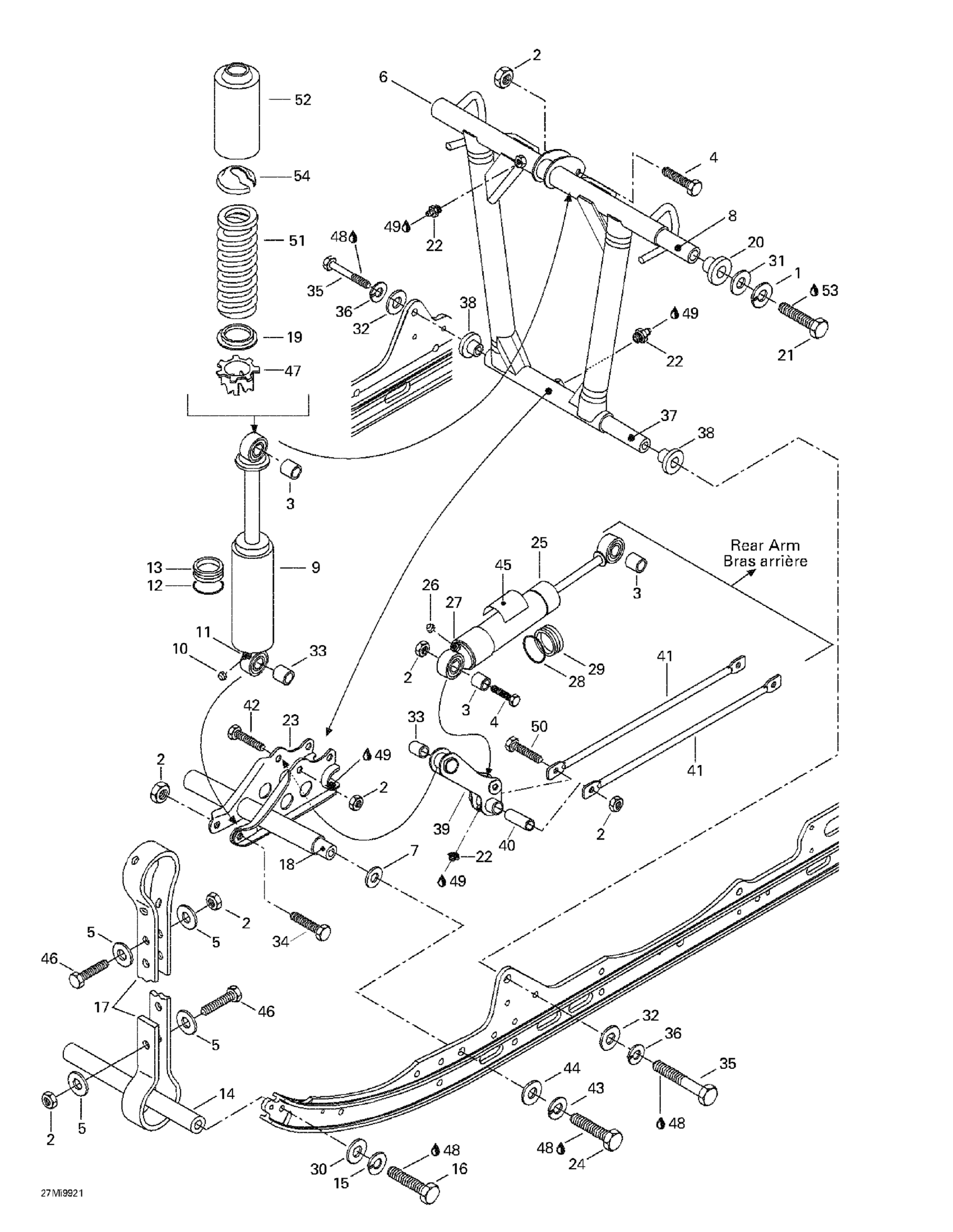

Ski-Doo MX Z 670 HO T.H., 1999 08- Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Bushing

414936000

$13.99

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503171100

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Center Shock

503188916

Unavailable

10

Air Valve Cap

415127405

Unavailable

11

AIR VALVE - Call your local BRP dealership

414888314

Unavailable

12

O-Ring

414888312

$17.29

13

Free Piston

415097900

Unavailable

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap

570069300

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Guide

503191872

$2.29

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support

503188976

Unavailable

24

Hex. Screw M12 x 40

222024065

Unavailable

25

Shock

503188915

Unavailable

26

Air Valve Cap

415127405

Unavailable

27

AIR VALVE - Call your local BRP dealership

414888314

Unavailable

28

O-Ring

414888312

$17.29

29

Free Piston

415097900

Unavailable

30

Flat Washer 8 mm

234081410

$0.83

31

Flat Washer 10 mm

234001410

$1.26

32

Flat Washer 12 mm

234021410

$0.72

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.68

35

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion

503188940

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

41

Tie Rod

503187100

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.48

43

Lock Washer 12 mm

224721218

Unavailable

44

Flat Washer 12 mm

234021410

$0.72

45

Shock Decal

516000183

Unavailable

46

Hex. Screw M8 X 25

207182544

$0.90

47

Adjustment Cam

505073625

$12.99

48

Loctite 271, 10 ml

293800005

$26.99

49

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

50

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

51

Spring | Touring 500 F.

415103600

Unavailable

52

Protector

503193663

$37.99

53

Loctite 243, 10 ml

293800060

$21.49

54

Spring Stopper

706200881

$12.99
