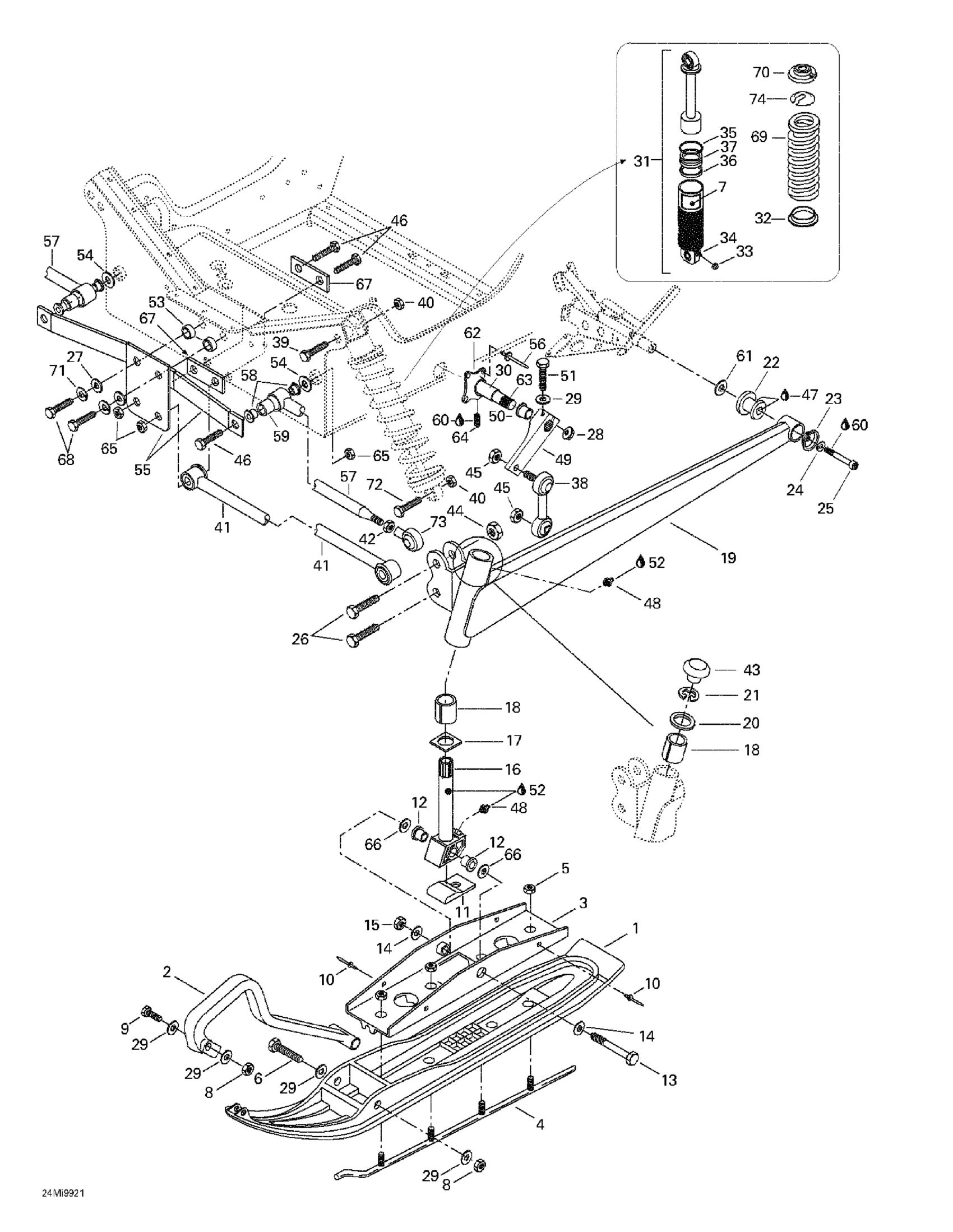

Ski-Doo MX Z 670 HO T.H., 1999 07- Front Suspension And Ski Diagram

Ski-Liner Flex

505070189

$127.99

Black, Handle

505070963

$35.99

Bridge Ass'y

505070251

Unavailable

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

Shock Decal

516000183

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

Hex. Screw M8 X 50

207085044

$1.48

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

Ski Stopper

570053300

Unavailable

CUSHION - Call your local BRP dealership

414530600

Unavailable

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

Ski Leg | Includes 15 - 16.

506144500

Unavailable

Wear Plate

506081200

Unavailable

Cushion

572069900

Unavailable

LH Swing Arm (Yellow)

505070195

Unavailable

RH Swing Arm (Yellow)

505070193

Unavailable

Thrust Washer

506080900

Unavailable

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

DAMPER - Call your local BRP dealership

570062200

Unavailable

CUP - Call your local BRP dealership

506079600

Unavailable

Lock Washer 8 mm

234181401

$0.92

Socket Head Screw M8 X 25

205082544

$1.15

Hex. Screw M12 x 55

222025565

Unavailable

Flat Washer 8 mm

234082410

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Flat Washer 8 mm

234081410

$0.83

Main Tube

506136200

Unavailable

Front Shock | Includes 31 - 35.

505070180

Unavailable

Spring Seat | MX Z 700.

505070306

Unavailable

Air Valve Cap

415127405

Unavailable

AIR VALVE - Call your local BRP dealership

414888314

Unavailable

O-Ring

414888312

$17.29

Piston Ring

503189308

$79.49

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

Double Ball Joint

415042300

Unavailable

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Arm Ass'y

580650800

Unavailable

Hex. Jam Nut M14

232170411

$1.48

Cap

572091300

$12.99

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Hex. Screw M12 x 100

230020044

Unavailable

Grease, Super Lube

293550030

$28.99

Grease Fitting

408200700

$3.49

Lever-Stabilizer

506145600

Unavailable

Lever-Stabilizer

506141100

Unavailable

CUSHION - Call your local BRP dealership

415039500

Unavailable

Cushion

561723300

Unavailable

Cushion

486073900

Unavailable

Bushing

486074100

Unavailable

Hex. Screw M8 X 45

207084544

$1.48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

Spacer

506146300

Unavailable

WASHER - Call your local BRP dealership | GT 550F

732900050

Unavailable

Plate Link

415065300

Unavailable

Rivet pop 1/4"

390404900

Unavailable

Arm Ass'y | Formula Z 583. Formula Z 670.

580665900

Unavailable

CUSHION - Call your local BRP dealership

506149100

$14.49

Bushing | 600 SUV

506149200

Unavailable

Loctite 243, 10 ml

293800060

$21.49

WASHER - Call your local BRP dealership

503146700

Unavailable

Housing

506139000

Unavailable

Stabilizator

506134300

Unavailable

Stabilisator

486073600

Unavailable

Stabilisator

486073800

Unavailable

Stabilisator

486074000

Unavailable

Socket Set Screw M8 X 10

414440800

$4.12

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

Washer

732900048

Unavailable

Link Low Plate

415061100

Unavailable

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

Shock Spring (Yellow)

505070233

Unavailable

Spring Stopper

706200881

$12.99

Lock Washer 8 mm

234181401

$0.92

Hex. Screw M10 X 55

207005544

$2.22

RH Ball Joint | Formula Z 583. Formula Z 670.

415042500

Unavailable

Cap

706200785

$4.69
