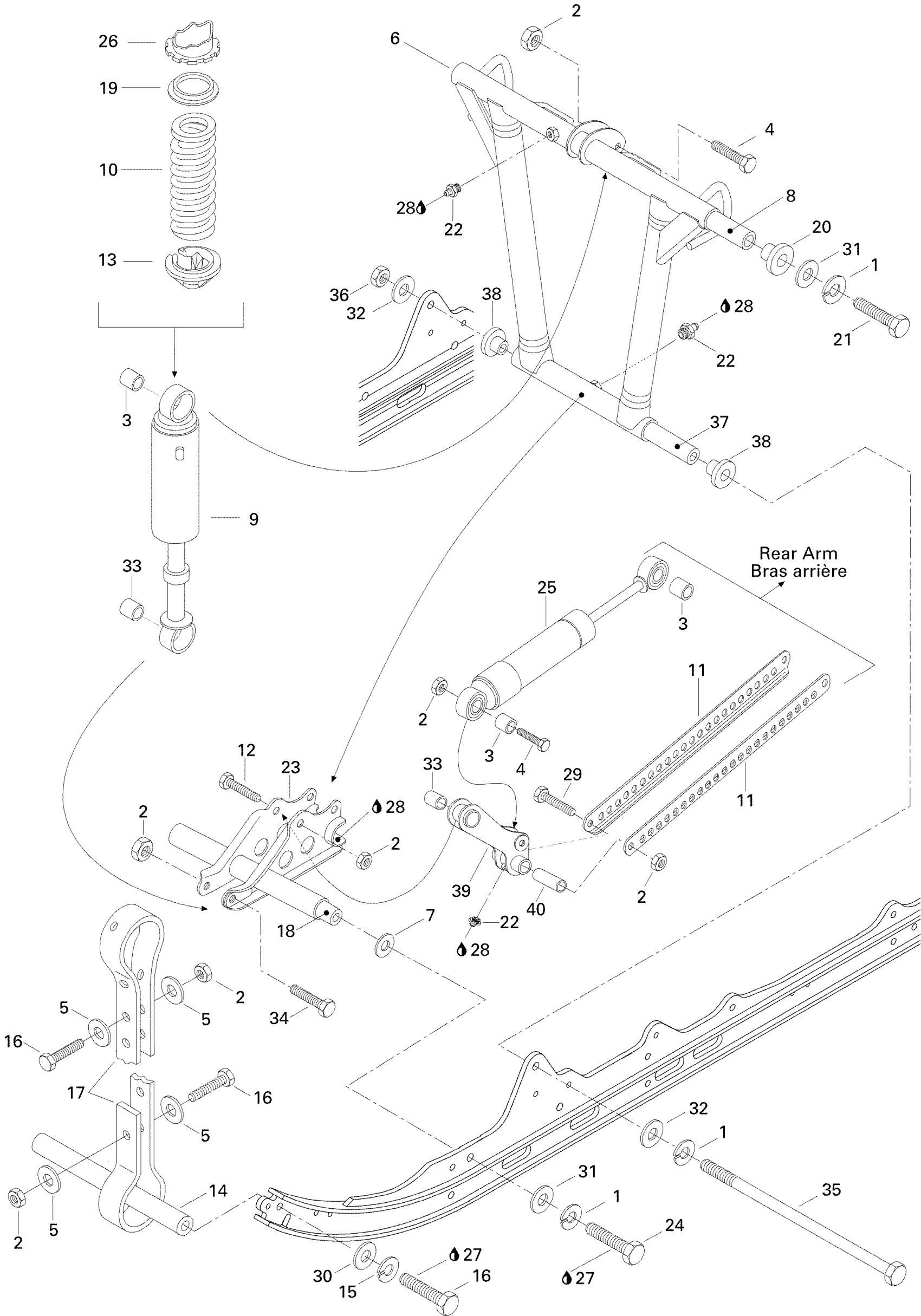

Ski-Doo MX Z 670, 1996 08- Front Arm Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Bushing

414936000

$13.99

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503158800

Unavailable

7

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock

414917000

Unavailable

10

Center Spring

414895100

Unavailable

11

Tie Rod | Formula Z 583. Formula 583 Deluxe.

503158700

Unavailable

12

Hex. Screw M8 X 50

207085044

$1.48

13

Spring Stopper

503149700

Unavailable

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

18

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

19

Spring Guide

503191872

$2.29

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support | Formula Z.

503158300

Unavailable

24

Hex. Screw M10 X 35

207103544

$1.58

25

Shock (Canada, U.S.A. Only) | MX Z 500.

414894700

Unavailable

26

Adjustment Cam

505073625

$12.99

27

Loctite 271, 10 ml

293800005

$26.99

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Flat Washer 8 mm

234081410

$0.83

31

Flat Washer 10 mm

234001410

$1.26

32

Flat Washer 12 mm

234021410

$0.72

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.68

35

Bolt M12 | Formula Z.

503140800

Unavailable

36

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

37

Lower Axle (Front Arm) | Formula Z.

503158900

Unavailable

38

Cushion | Formula Z 583. Formula 583 Deluxe.

415026300

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable
