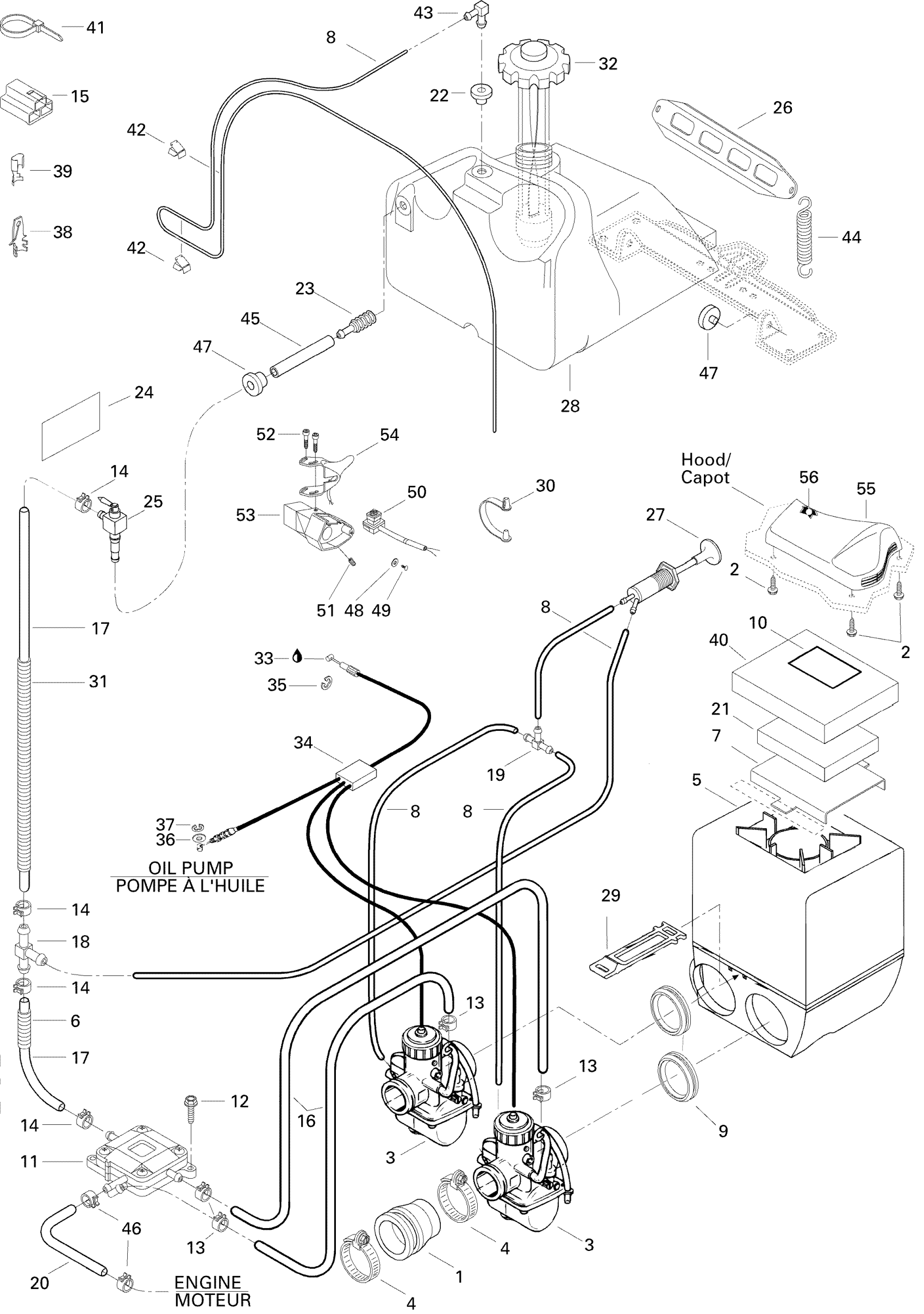

Ski-Doo MX Z 670, 1996 02- Fuel System Diagram

#

Description
Price

1

Adaptor Caburetor | MX Z 583. MX Z 670.

570049200

Unavailable

2

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

3

VM 40-84 Carburetor (PTO) | Includes 1 to 32

403127700

Unavailable

3

VM 40-85 Carburetor (MAG) | Includes 1 to 32

403127800

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | Formula Z.

580638603

Unavailable

6

Tubing

414942900

Unavailable

7

Grill Intake

517283900

Unavailable

8

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

9

Intake Adaptor VM 40 | Formula Deluxe 670.

570049000

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

12

Hexagonal Head Screw

210262050

$2.11

13

Spring Clamp

414554800

$0.88

14

Spring Clamp

414655700

$0.72

15

Female Terminal Housing (3 circuits)

409008500

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

17

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

18

T-Fitting

415119300

$3.17

19

T-Fitting

414222400

$1.69

20

Hose

219704549

$50.99

21

Air Filter

415014800

$12.49

22

Grommet

709200285

$9.69

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

Shutoff Valve

415018400

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$34.99

28

Fuel Tank (Black)

572077700

Unavailable

29

LATCH - Call your local BRP dealership

570069700

Unavailable

30

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

31

Tubing 16 Mm 1000Mm Long

219704408

$7.49

32

Cap

414971000

Unavailable

33

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

34

Throttle Cable and Housing (40 mm) | Formula Deluxe 670.

414966201

Unavailable

35

Circlip

414274500

$0.90

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Circlip

414753500

$0.71

38

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

39

Female Terminal PACKARD

561503200

Unavailable

40

Exterior Foam | Formula 500. Formula 500 Deluxe.

415012700

Unavailable

41

Tie-Rap 180 mm

414115200

$0.11

42

Clip

414227300

$1.67

43

Male Connector

414814100

$2.22

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Hose

414976300

Unavailable

46

Spring Clamp

414415200

$0.88

47

Grommet | Europe

707800347

$10.49

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

51

Socket Set Screw M8 X 10

414440800

$4.12

52

Flange Screw

732601143

$4.12

53

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

54

Heat Throttle Handle Ass'y (40 mm) | Formula Deluxe 670.

572057000

Unavailable

55

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

56

Air Filter

414972600

$63.99
