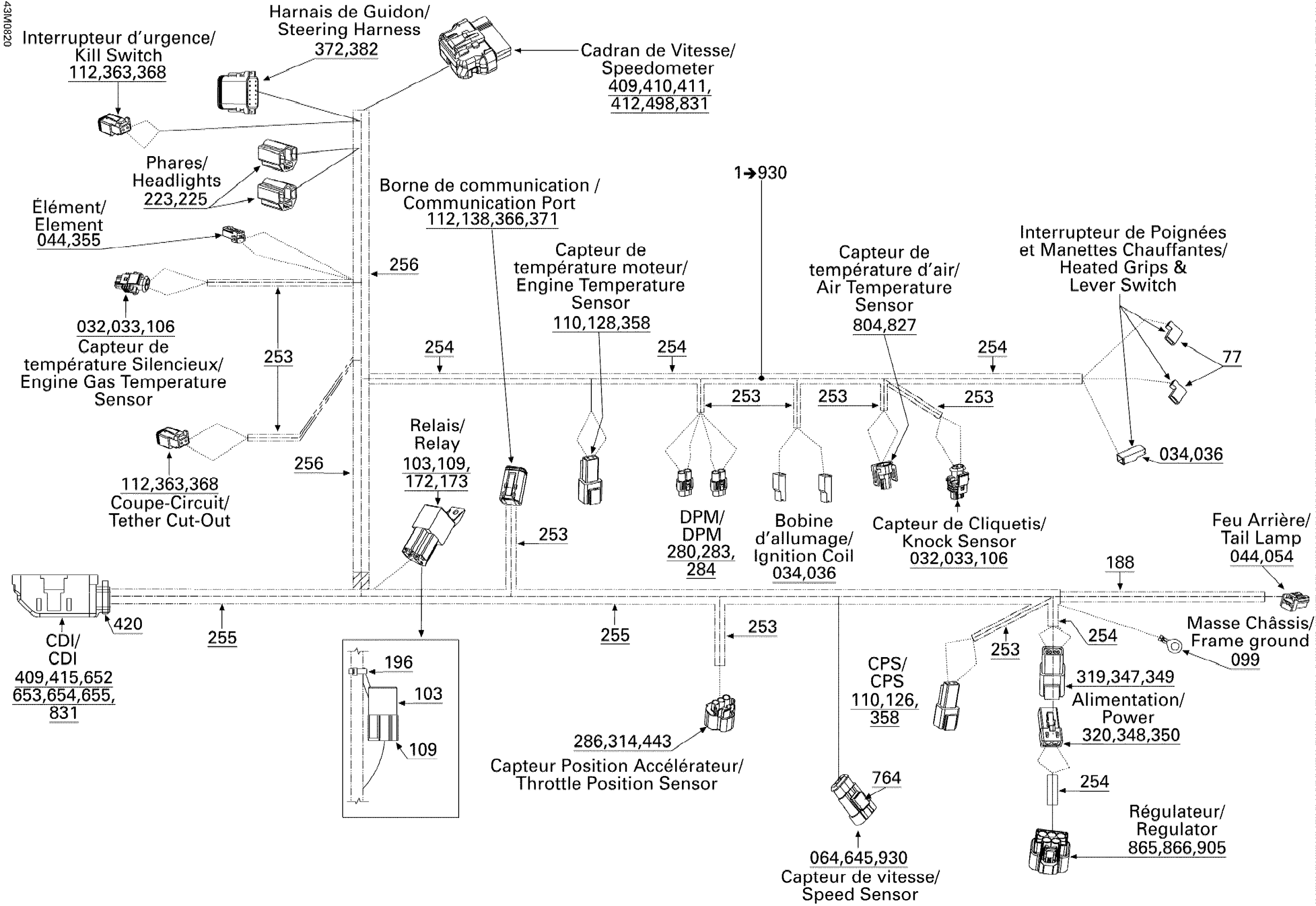

Ski-Doo MX Z 600RS, 2008 Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS - Call your local BRP dealership | Includes 1 to 930

515176623

Unavailable

032

Female Terminal

278000998

$4.39

033

Wire Seal

278000999

$3.19

034

Female Terminal

409010100

$5.61

036

Female Terminal Housing, 1 Circuit

409010400

$7.62

044

Female Terminal

515175231

$4.39

054

Female Housing, 3 Circuits

515175495

$16.18

064

Housing

710000568

$11.12

077

Female Terminal

409010300

$4.39

099

Open Barrel

278000992

$2.21

103

Relay | DS 650 X

710010053

$23.49

106

Male Housing, 2 Circuits

278001005

$19.49

109

Female Housing, 5 Circuits

409209900

$9.59

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

126

Male Lock, 2 Circuits

409207500

$3.19

138

Sealing Cap

293000052

$3.19

172

Female Terminal

561503100

$2.41

173

Female Terminal

561503100

$2.41

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.25

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

280

Female Terminal

409012100

$4.55

283

Not Available As Spare Part - Friction Washer

Unavailable

284

Seal

409012300

$4.54

286

Seal

409012300

$4.54

314

Female Terminal Housing, 3 Circuits

515176176

$16.18

319

Male Terminal

515175568

$9.12

320

Female Terminal

515175567

$7.69

347

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

348

Female Terminal Housing, 2 Circuits

278001673

$23.49

349

Male Lock, 2 Circuits

278001672

$3.49

350

Female Lock, 2 Circuits

278001671

$3.58

355

Female Housing, 2 Circuits

515175658

$16.18

358

Male Terminal Housing, 2 Circuits

515175665

$9.29

363

Female Terminal Housing, 2 Circuits

515175670

$8.39

366

Male Housing, 6 Circuits

515175673

$15.49

368

Female Lock, 2 Circuits

515175675

$4.55

371

Male Wedge, 6 Circuits

515175678

$5.39

372

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

382

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

443

Female Terminal

710000335

$2.29

498

Female Housing

710000399

$16.49

645

Male Terminal

515176164

$7.16

652

Female Housing

515176221

$15.99

653

Wire Seal

515176222

$16.86

654

Female Terminal Housing, 36 Circuits

515176223

$14.99

655

Terminal Support

515176224

$15.99

764

Clip

710000992

$4.29

804

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515176523

Unavailable

827

Female Terminal

710001119

$5.39

831

Female Terminal

710001131

$8.89

865

Connector

515176530

$30.49

866

Terminal

515176531

$10.74

916

Seal

515176594

$7.86

930

Wire Seal

515176621

$7.49
