Description

Price

1

FRAME ASS'Y - Call your local BRP dealership | Includes 10 to G

415129782

Unavailable

2

E Module | Includes 10n to 10at

518327567

$469.99

3

Front Member

518326198

$64.99

4

Stavex Rivet

293150144

$0.82

5

Ornit Rivet 6,5 X 14.5

293150266

$2.40

6

Hemlock Rivet, 6.5 mm

293150119

$4.29

7

Leg Bushing

505072690

$12.49

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

RH Reinforcement

518324874

$27.99

12

LH Reinforcement

518324875

$27.99

13

RH Deflector, Black Polypropylene

518325782

$13.99

14

LH Deflector, Black Polypropylene

518325783

$13.99

15

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

16

RH Front Support

518325740

Unavailable

17

LH Front Support

518325741

Unavailable

18

RH REAR SUPPORT - Call your local BRP dealership

518326766

Unavailable

19

LH REAR SUPPORT - Call your local BRP dealership

518326767

Unavailable

20

RH Rear Base

518325973

$21.99

21

LH Rear Base | Includes 10v to 10x

518325974

$21.99

22

Hemlock Rivet, 6.5 mm

293150119

$4.29

23

RH ROLLER - Call your local BRP dealership

518325830

Unavailable

24

LH ROLLER - Call your local BRP dealership

518325831

Unavailable

25

RH SEAL - Call your local BRP dealership

518325653

Unavailable

26

LH SEAL - Call your local BRP dealership

518325654

Unavailable

27

Adhesive Patch

518325560

$4.69

28

Front Radiator | Includes 10b to 10b2

518326485

$444.99

29

REAR RADIATOR - Call your local BRP dealership

518325719

Unavailable

30

Avex Rivet

390909100

$0.30

31

Rear Cap

518327105

$22.49

32

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

33

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

34

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

35

Pop Rivet 3/16"

390402300

$0.75

36

Avex Rivet

390909200

$0.30

37

Avex Rivet

390909100

$0.30

38

Stavex Rivet

293150144

$0.82

39

Not Available As Spare Part - Friction Washer

Unavailable

40

LINK CROSS - Call your local BRP dealership

518325796

Unavailable

41

NEOPRENE SEAL - Call your local BRP dealership

293200105

Unavailable

42

Full Moon Dart 5 mm

293730042

$2.21

43

RH REINFORCEMENT - Call your local BRP dealership

518325747

Unavailable

44

LH REINFORCEMENT - Call your local BRP dealership

518325748

Unavailable

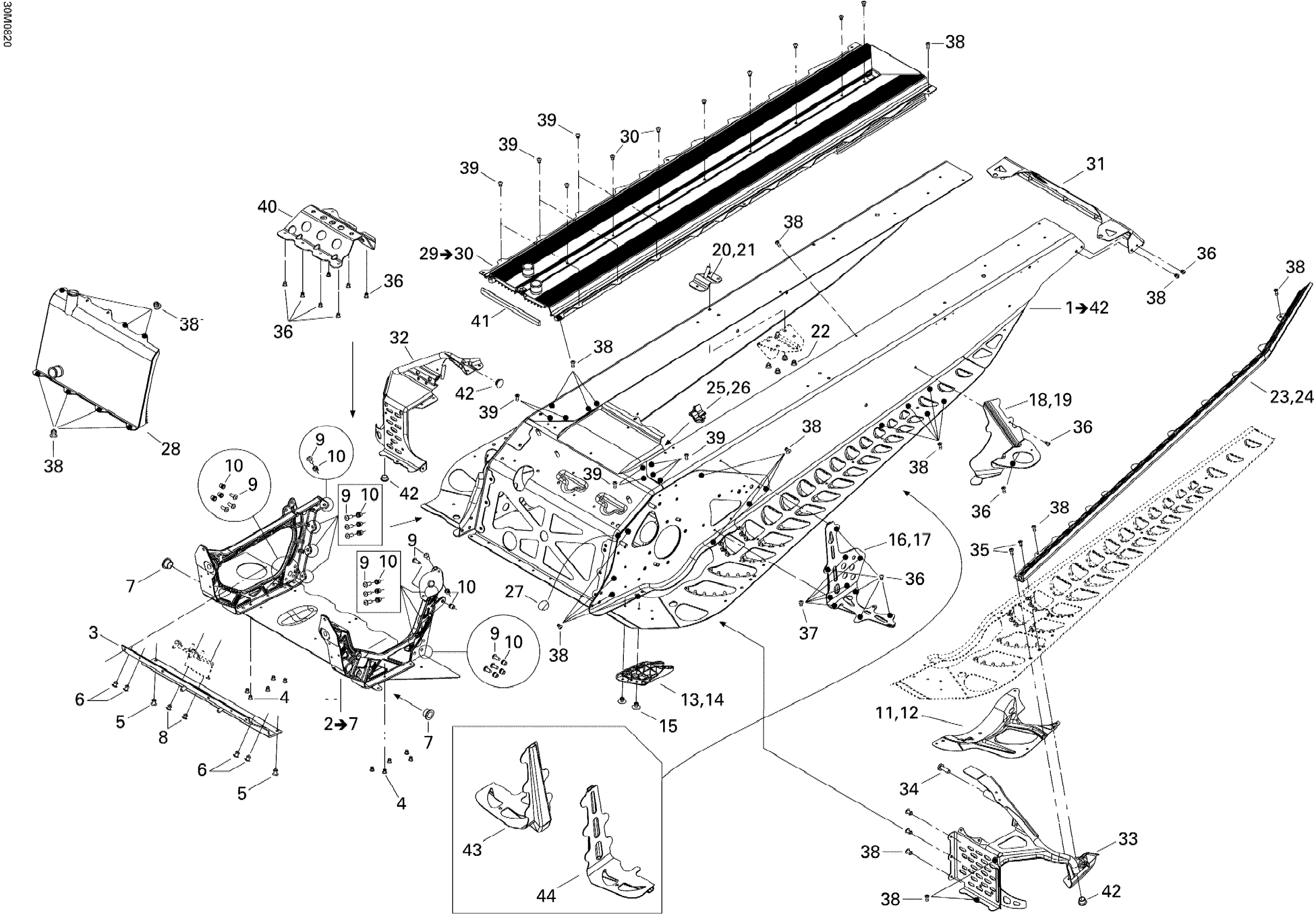

Ski-Doo MX Z 600RS, 2008 09- Frame Diagram

FRAME ASS'Y - Call your local BRP dealership | Includes 10 to G

E Module | Includes 10n to 10at

Front Member

Stavex Rivet

Ornit Rivet 6,5 X 14.5

Hemlock Rivet, 6.5 mm

Leg Bushing

Hemlock Rivet, 6.5 mm

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

RH Front Support

LH Front Support

RH REAR SUPPORT - Call your local BRP dealership

LH REAR SUPPORT - Call your local BRP dealership

RH Rear Base

LH Rear Base | Includes 10v to 10x

Hemlock Rivet, 6.5 mm

RH ROLLER - Call your local BRP dealership

LH ROLLER - Call your local BRP dealership

RH SEAL - Call your local BRP dealership

LH SEAL - Call your local BRP dealership

Adhesive Patch

Front Radiator | Includes 10b to 10b2

REAR RADIATOR - Call your local BRP dealership

Avex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

LH STIRUP - Call your local BRP dealership

Torx Screw M8 X 1.25 X 25, Scotch Grip

Pop Rivet 3/16"

Avex Rivet

Avex Rivet

Stavex Rivet

Not Available As Spare Part - Friction Washer

LINK CROSS - Call your local BRP dealership

NEOPRENE SEAL - Call your local BRP dealership

Full Moon Dart 5 mm

RH REINFORCEMENT - Call your local BRP dealership

LH REINFORCEMENT - Call your local BRP dealership
