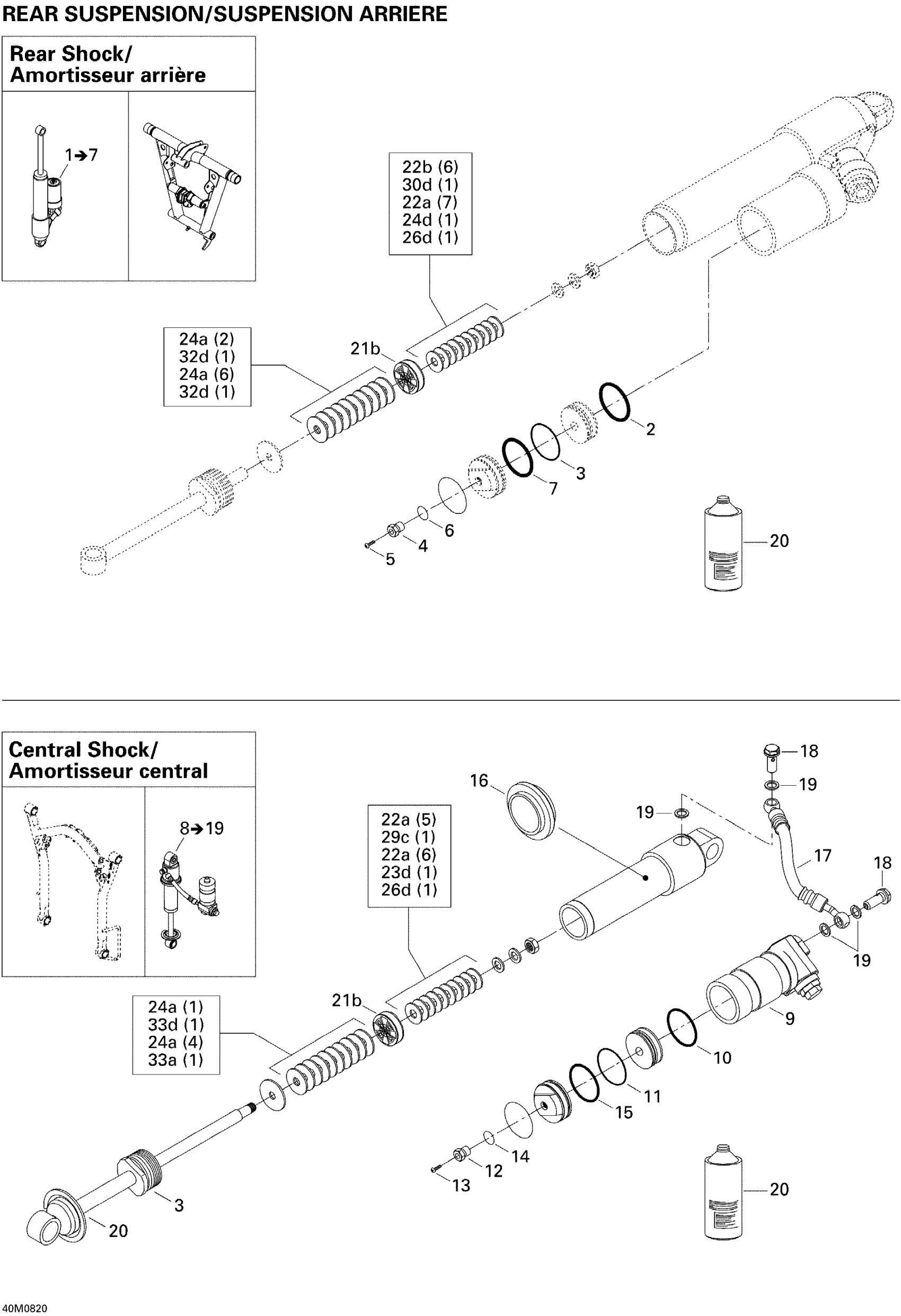

Ski-Doo MX Z 600RS, 2008 08- Take Apart Shock, Rear Diagram
#
1
REAR SHOCK - Call your local BRP dealership
503191807
Unavailable
8
Center Shock
503191809
Unavailable
9
RESERVOIR - Call your local BRP dealership
415128596
Unavailable
16
SPRING COLLAR - Call your local BRP dealership
415128598
Unavailable
17
HOSE ASS'Y - Call your local BRP dealership
415128595
Unavailable
21a
Piston (C36)
414888304
Unavailable
21b
Not Available As Spare Part - Friction Washer
Unavailable
21c
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
21d
Not Available As Spare Part - Friction Washer
Unavailable
21e
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
21f
Not Available As Spare Part - Friction Washer
Unavailable
21g
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
22a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
22b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
22c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
22d
Not Available As Spare Part - Friction Washer
Unavailable
23a
Not Available As Spare Part - Friction Washer
Unavailable
23b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
23c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
23d
Not Available As Spare Part - Friction Washer
Unavailable
24a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
24b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
24c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
24d
Not Available As Spare Part - Friction Washer
Unavailable
25a
Not Available As Spare Part - Friction Washer
Unavailable
25b
Not Available As Spare Part - Friction Washer
Unavailable
25c
Not Available As Spare Part - Friction Washer
Unavailable
25d
Not Available As Spare Part - Friction Washer
Unavailable
26a
Not Available As Spare Part - Friction Washer
Unavailable
26b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
26c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
26d
Not Available As Spare Part - Friction Washer
Unavailable
27a
Not Available As Spare Part - Friction Washer
Unavailable
27b
Not Available As Spare Part - Friction Washer
Unavailable
27c
Not Available As Spare Part - Friction Washer
Unavailable
27d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
28a
Not Available As Spare Part - Friction Washer
Unavailable
28b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
28c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
28d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
29a
Not Available As Spare Part - Friction Washer
Unavailable
29b
Not Available As Spare Part - Friction Washer
Unavailable
29c
Not Available As Spare Part - Friction Washer
Unavailable
29d
Not Available As Spare Part - Friction Washer
Unavailable
30a
Not Available As Spare Part - Friction Washer
Unavailable
30b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
30c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
30d
Not Available As Spare Part - Friction Washer
Unavailable
31a
Not Available As Spare Part - Friction Washer
Unavailable
31b
Not Available As Spare Part - Friction Washer
Unavailable
31c
Not Available As Spare Part - Friction Washer
Unavailable
31d
Not Available As Spare Part - Friction Washer
Unavailable
32a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
32b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
32c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
32d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
33a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
33b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
33c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
33d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
34a
Not Available As Spare Part - Friction Washer
Unavailable
34b
Not Available As Spare Part - Friction Washer
Unavailable
34c
Not Available As Spare Part - Friction Washer
Unavailable
34d
Not Available As Spare Part - Friction Washer
Unavailable
35a
Not Available As Spare Part - Friction Washer
Unavailable
35b
Not Available As Spare Part - Friction Washer
Unavailable
35c
Not Available As Spare Part - Friction Washer
Unavailable
35d
Not Available As Spare Part - Friction Washer
Unavailable
36a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
36b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
36c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
36d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
