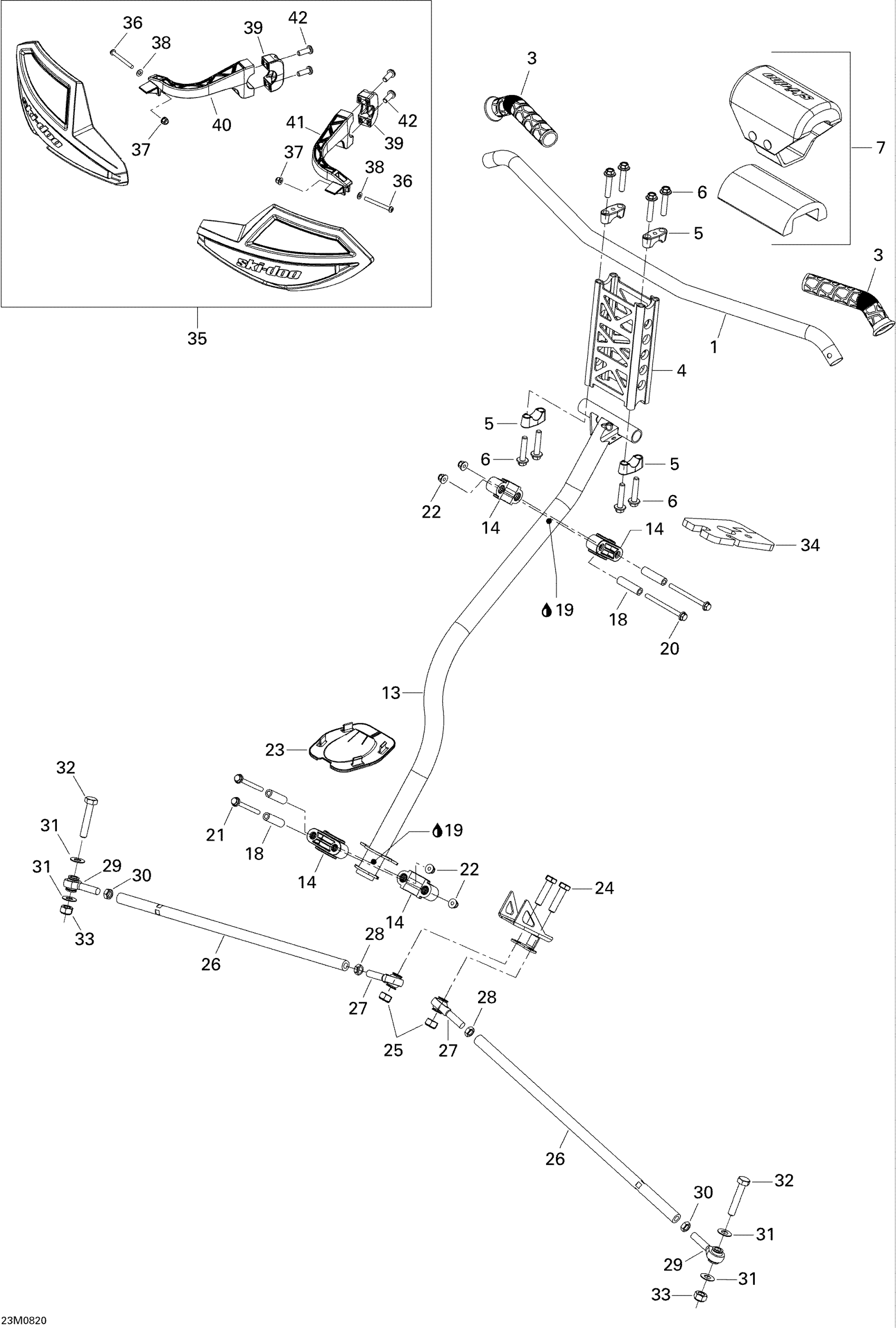

Ski-Doo MX Z 600RS, 2008 Steering Diagram

#

Description
Price

1

BLACK HANDLE BAR - Call your local BRP dealership

506152087

Unavailable

3

Grip

506152486

$14.71

4

EXTENSION - Call your local BRP dealership

506152107

Unavailable

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 x 40

250000285

$0.77

7

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

13

Steering Column

506152964

Unavailable

14

Half-Housing

506152293

$10.23

18

Housing Bushing

506152297

$10.23

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$3.61

21

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

Unavailable

22

Elastic Flange Nut M6 X 1.0

233261416

$1.74

23

Plate

506152163

$10.23

24

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

25

Elastic Stop Nut M10

232500416

$1.56

26

Tie-Rod Ass'y

506152496

$59.97

27

LH Thread Ball Joint

506152081

$39.97

28

LH Threaded Hex. Jam Nut M10

250100016

$0.72

29

RH Threaded Ball Joint

506152019

$39.97

30

RH Threaded Hex. Jam Nut M10

732610010

$0.72

31

Washer

506152194

$4.42

32

Hex. Screw M10 X 55

207005544

$1.85

33

Elastic Stop Nut M10

232500416

$1.56

34

CUSHION - Call your local BRP dealership

506152334

Unavailable

35

Yellow Wind Deflector Kit

860200710

$98.99

36

Socket Head Screw M4 X 40 | X

205444086

$1.42

37

Elastic Stop Nut M4

232541484

$0.61

38

Flat Washer 4 mm

234041480

$0.61

39

U-Clamp | XT

517303264

$11.43

40

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

41

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

42

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable
