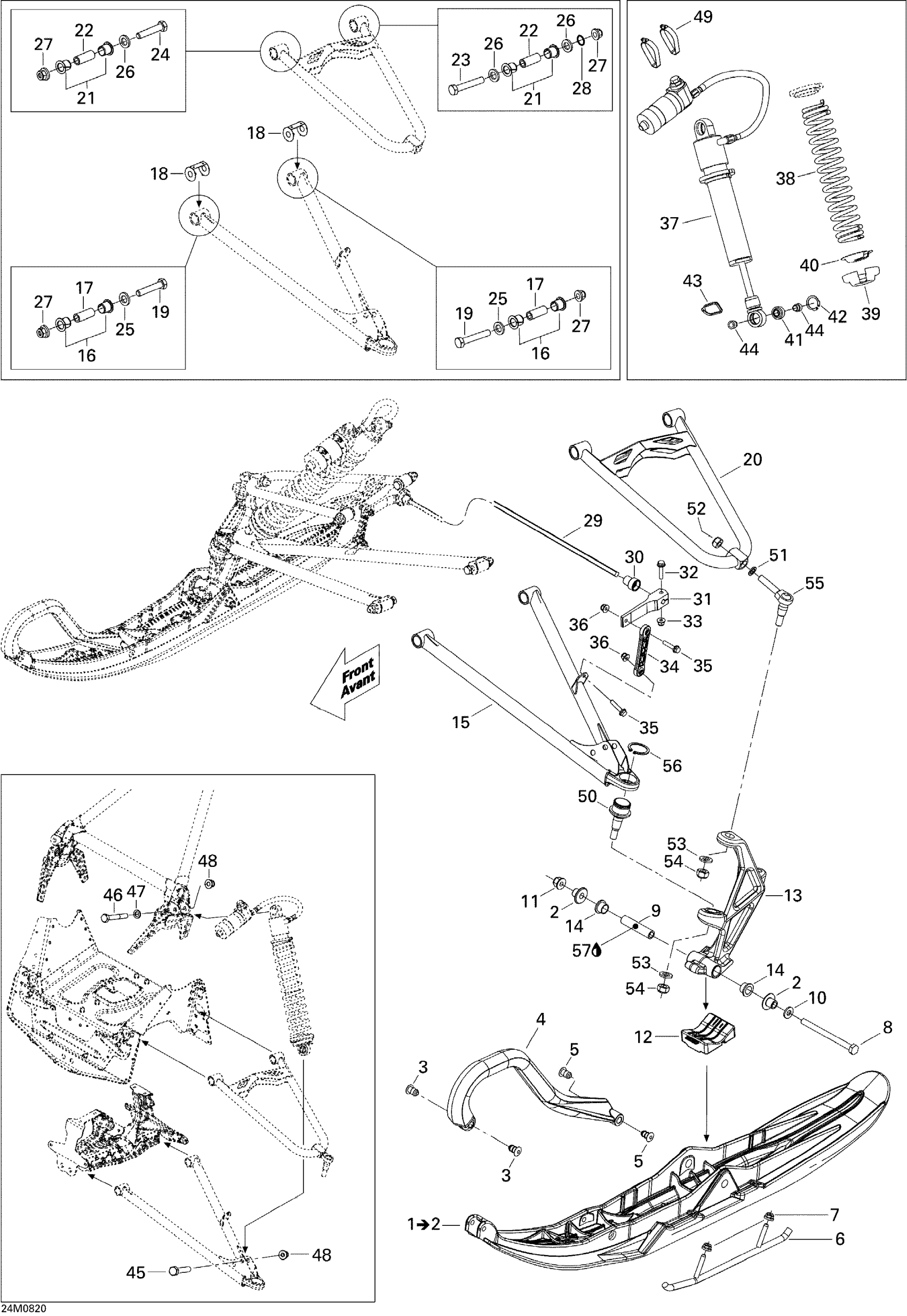

Ski-Doo MX Z 600RS, 2008 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski 5.7X

505072205

$153.49

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

HANDLE_SKI - Call your local BRP dealership

505071674

Unavailable

5

Retainer 23mm Long

505072133

$6.78

6

Round Carbide Runner

860201043

$109.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Washer

732900049

$0.58

11

Flange Nut M10

732610084

$6.79

12

Ski Stopper

505071779

$18.78

13

Clear, LH Ski Leg

505073007

$249.99

13

Clear, RH Ski Leg

505073008

$239.99

14

Leg Bushing

505072690

$12.49

15

FULL MOON RH LOWER ARM - Call your local BRP dealership

505072385

Unavailable

15

FULL MOON LH LOWER ARM - Call your local BRP dealership This part replaces 505072386.

505072347

Unavailable

16

Cushion

503191766

$5.93

17

Aluminum Bushing

505072401

$18.73

18

Wear Plate

505072634

$6.29

19

Screw Hex. M10 X 70

250001024

$2.11

20

Upper Arm

505072454

Unavailable

21

Swivel Bushing

503191555

$7.83

22

ALUMINUM BUSHING - Call your local BRP dealership

505072438

Unavailable

23

Screw Hex. M10 X 60

250001023

$2.11

24

Screw Hex. M10 X 50

250001022

$1.69

25

Washer

503189564

$0.74

26

Washer

505072392

$4.76

27

Hex. Flange Elastic Nut M10

250100165

$0.85

28

O-Ring

505072448

$2.32

29

Stabilisator

505072602

$68.99

30

Bushing

505072064

$2.32

31

Stabilisator Lever

505072394

$18.73

32

Hex. Flange Screw M6 X 30

207663046

$1.69

33

Elastic Flange Nut M6 X 1.0

233261416

$2.11

34

Sway Bar Double Joint Link

505072204

$21.99

35

Hex. Flange Screw M6 X 30

207663046

$1.69

36

Elastic Flange Nut M6 X 1.0

233261416

$2.11

37

RH HPG FRONT SHOCK - Call your local BRP dealership

505072398

Unavailable

37

LH HPG Front Shock

505072400

Unavailable

38

YELLOW SPRING - Call your local BRP dealership

505072481

Unavailable

39

Spring Stopper

505072635

$35.99

40

Cap

505071199

Unavailable

41

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

42

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

43

Tie-Rap 180 mm

414115200

$0.11

44

BUSHING - Call your local BRP dealership

506120200

Unavailable

45

Hex. Screw M10 X 55

207005544

$2.22

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

47

Washer

503189564

$0.74

48

Hex. Flange Elastic Nut M10

233201414

$1.58

49

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

50

Ball Joint

505073636

$51.99

51

Washer

503189276

$3.28

52

Hex. Elastic Hex. Nut M12

250100089

$0.46

53

Flat Washer 12 mm

234021410

$0.72

54

Hex. Elastic Hex. Nut M12

250100089

$0.46

55

Upper Ball Joint

505072257

$17.58

56

Circlip

293370035

$2.64

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
