Description

Price

1

Chain Case

504152684

Unavailable

2

Hex. Flange Screw M6 X 20

207662034

$2.11

3

Flange Elastic Nut M6

233261434

$4.44

4

Flat Washer 6 mm

234061410

$1.36

5

Plate | Not Shown

518325816

$79.99

6

Oil Seal

293200168

$14.49

7

Ball Bearing

293350115

$12.11

8

Circlip

504152576

$9.99

9

Shim

504152628

$10.99

10

Sprocket, 23 Teeth (Large)

504085400

$200.99

11

Spring Washer M10

504152784

$7.65

12

Hex. Screw M10 X 25

207102544

$1.37

13

Oil Seal

293200159

$16.25

14

Ball Bearing

293350059

$30.99

15

Circlip

504152582

$9.99

16

SPROCKET_49 TEETH ASSY - Call your local BRP dealership

504153598

Unavailable

17

O-Ring

293300122

$2.11

18

THREADED CAP - Call your local BRP dealership

504152802

$78.99

19

Magnetic Adaptor

504152794

$47.49

20

Circlip

293370052

$4.99

21

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

22

Drive Chain, 106 Links

504152630

$179.99

23

Hex. Nut M10 X 1.5

232006414

$1.37

24

Adjustment Screw

504152602

$12.49

25

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

26

Tensioner chain

504153429

$15.99

27

Slider Chain

504152739

$65.99

28

Tensioner Axle

504152841

$16.34

29

Circlip

504152282

$3.17

30

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

32

Rotation Sensor

504152896

$37.99

33

Wire Seal

278001013

$3.28

34

Female Housing, 3 Circuits

409209600

$35.99

35

Female Terminal

278001014

$3.28

36

Tight Seal

293300130

$7.51

37

Hex. Forming Screw M6

210263030

$2.11

38

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

39

Cap

504152839

Unavailable

40

Bearing Housing

507032437

$19.99

41

Ball Bearing

293350059

$30.99

42

O-Ring

293300122

$2.11

43

Magnetic Cap

504152619

$23.49

44

Circlip

504152572

$6.95

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

46

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

47

Hex. Flange Elastic Nut M8

233281414

$1.47

48

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

49

Carriage Bolt M8 X 30

207783044

$2.11

50

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

51

COUNTER SHAFT - Call your local BRP dealership

504152872

Unavailable

52

Drive Axle Ass'y

504153084

$412.99

53

Drive Axle Ass'y

504153084

$412.99

54

TRACK ASS'Y 15 X 120 X 1.75 - Call your local BRP dealership | Includes 56 to 58

504152883

$839.99

55

Track Guide | Track Width 16''

415129528

$3.29

56

Cleat

504152651

$9.69

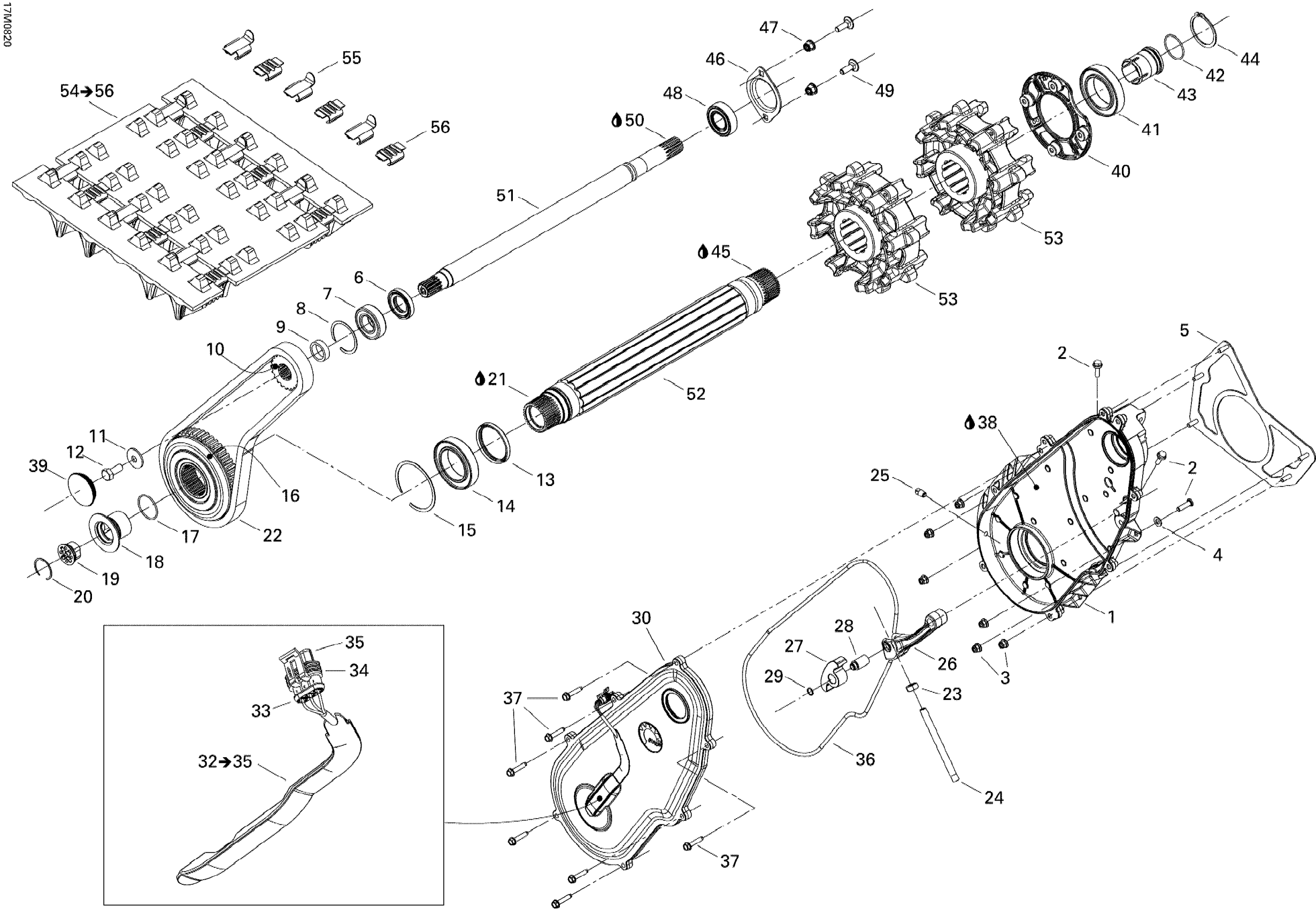

Ski-Doo MX Z 600RS, 2008 05- Drive System Diagram

Chain Case

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

Flat Washer 6 mm

Plate | Not Shown

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket, 23 Teeth (Large)

Spring Washer M10

Hex. Screw M10 X 25

Oil Seal

Ball Bearing

Circlip

SPROCKET_49 TEETH ASSY - Call your local BRP dealership

O-Ring

THREADED CAP - Call your local BRP dealership

Magnetic Adaptor

Circlip

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

Drive Chain, 106 Links

Hex. Nut M10 X 1.5

Adjustment Screw

Magnetic Plug 1/8 - 27 NPTF

Tensioner chain

Slider Chain

Tensioner Axle

Circlip

Chaincase Cover Ass'y | Includes 1700 to 1700c

Rotation Sensor

Wire Seal

Female Housing, 3 Circuits

Female Terminal

Tight Seal

Hex. Forming Screw M6

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

Cap

Bearing Housing

Ball Bearing

O-Ring

Magnetic Cap

Circlip

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

BEARING HOUSING ASS'Y - Call your local BRP dealership

Hex. Flange Elastic Nut M8

Ball Bearing Kit This part replaces 504152535.

Carriage Bolt M8 X 30

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

COUNTER SHAFT - Call your local BRP dealership

Drive Axle Ass'y

Drive Axle Ass'y

TRACK ASS'Y 15 X 120 X 1.75 - Call your local BRP dealership | Includes 56 to 58

Track Guide | Track Width 16''

Cleat
