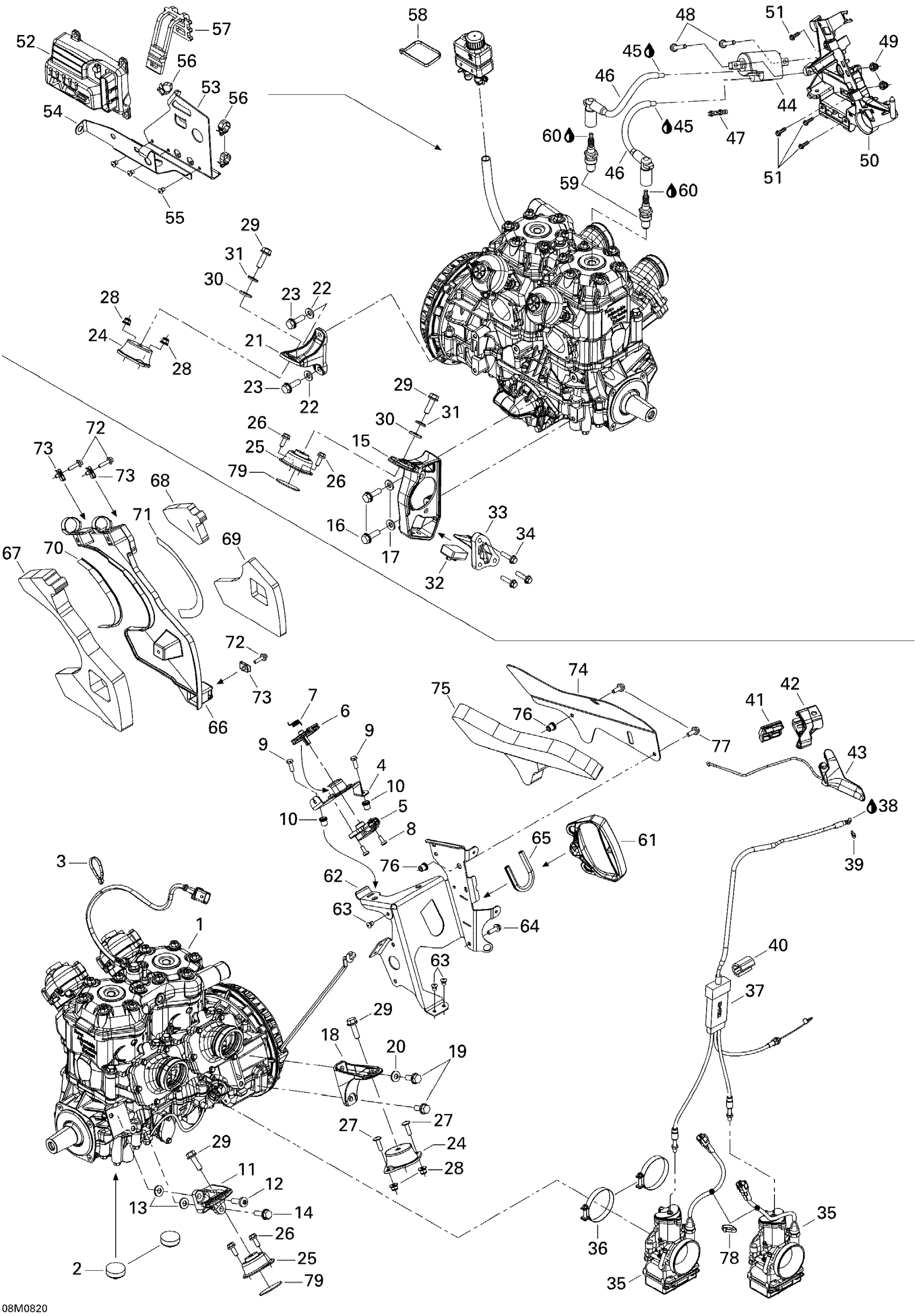

Ski-Doo MX Z 600RS, 2008 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine 593 RS

400604030

Unavailable

2

Stopper

512059738

$23.99

3

Tie-Rap 180 mm

414115200

$0.11

4

TPS SUPPORT - Call your local BRP dealership

512060336

Unavailable

5

Sensor Ass'y

404162079

$359.99

6

CAP CAM - Call your local BRP dealership

512060335

Unavailable

7

CAM SPRING - Call your local BRP dealership

512060351

Unavailable

8

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

9

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

10

Insert

293450275

$12.99

11

Rear Support, PTO

512060478

$31.99

12

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

13

Conical Spring Washer M8

234281474

$1.48

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

15

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

16

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

17

Conical Spring Washer M8

234281474

$1.48

18

Engine Support

512060404

Unavailable

19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

20

Conical Spring Washer M8

234281474

$1.48

21

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

Unavailable

22

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

23

Conical Spring Washer M8

234281474

$1.48

24

Rubber Mount

512060360

$60.99

25

Rubber Mount

512060385

$60.99

26

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

27

Hex. Socket Screw M6 X 20

250000770

$2.09

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

30

Yellow, Washer

503183200

$3.19

31

Conical Spring Washer M8

234281474

$1.48

32

STOPPER - Call your local BRP dealership

512060179

Unavailable

33

Stopper Support

512060576

$29.49

34

Hex. Flange Screw M6 X 25

207562544

$1.69

35

Carburator TMX38-66

403138796

Unavailable

36

Gemi Clamp

512059835

$11.60

37

THROTTLE CABLE - Call your local BRP dealership

512060292

Unavailable

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

Circlip

414274500

$0.90

40

Protector

512060313

$10.33

41

Upper Housing Ass'y

512060198

Unavailable

42

LOWER HOUSING - Call your local BRP dealership

512060197

Unavailable

43

HANDLE ASS'Y - Call your local BRP dealership

512060268

Unavailable

44

Ignition Coil

512059968

$51.99

45

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

46

Cable

512060291

$51.99

47

Plastic Clip, Spark Plug Wire

410914600

$5.61

48

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

COILS SUPPORT - Call your local BRP dealership

512060925

Unavailable

51

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

52

CALIBRATED MODULE - Call your local BRP dealership

512060265

Unavailable

53

ECM SUPPORT - Call your local BRP dealership

512060337

$33.99

54

TANK SUPPORT - Call your local BRP dealership

512060379

Unavailable

55

Avex Rivet

390909200

$0.30

56

Tridon Gear Clamp

293650172

$3.09

57

LATCH - Call your local BRP dealership

570069700

Unavailable

58

Tie-Rap 180 mm

414115200

$0.11

59

Spark Plug NGK BR9ECS-5

512059552

$10.59

60

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

61

Starter Grip

512060136

$14.83

62

Grip Support - Call Your Local BRP Dealership

512060491

Unavailable

63

Avex Rivet

390909200

$0.30

64

Hexagonal Head Screw

210262050

$2.11

65

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

66

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

67

Interior Noise Foam

512060343

$20.99

68

Upper Exterior Noise Foam

512060344

$10.33

69

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

70

Heat Shield

512060574

$7.79

71

Heat Shield

512060575

$8.59

72

Hex.Flange Screw M5 X 20

207652044

$1.90

73

Panel Nut M5 X 0.8

250000958

$4.23

74

REAR NOISE SHIELD - Call your local BRP dealership

512060492

Unavailable

75

Rear Noise Foam

512060381

Unavailable

76

Insert

293450275

$12.99

77

Hex. Flange Screw M6 X 16

207661644

$0.74

78

Tie-Rap 180 mm

414115200

$0.11

79

RUBBER WASHER - Call your local BRP dealership

512060410

Unavailable
