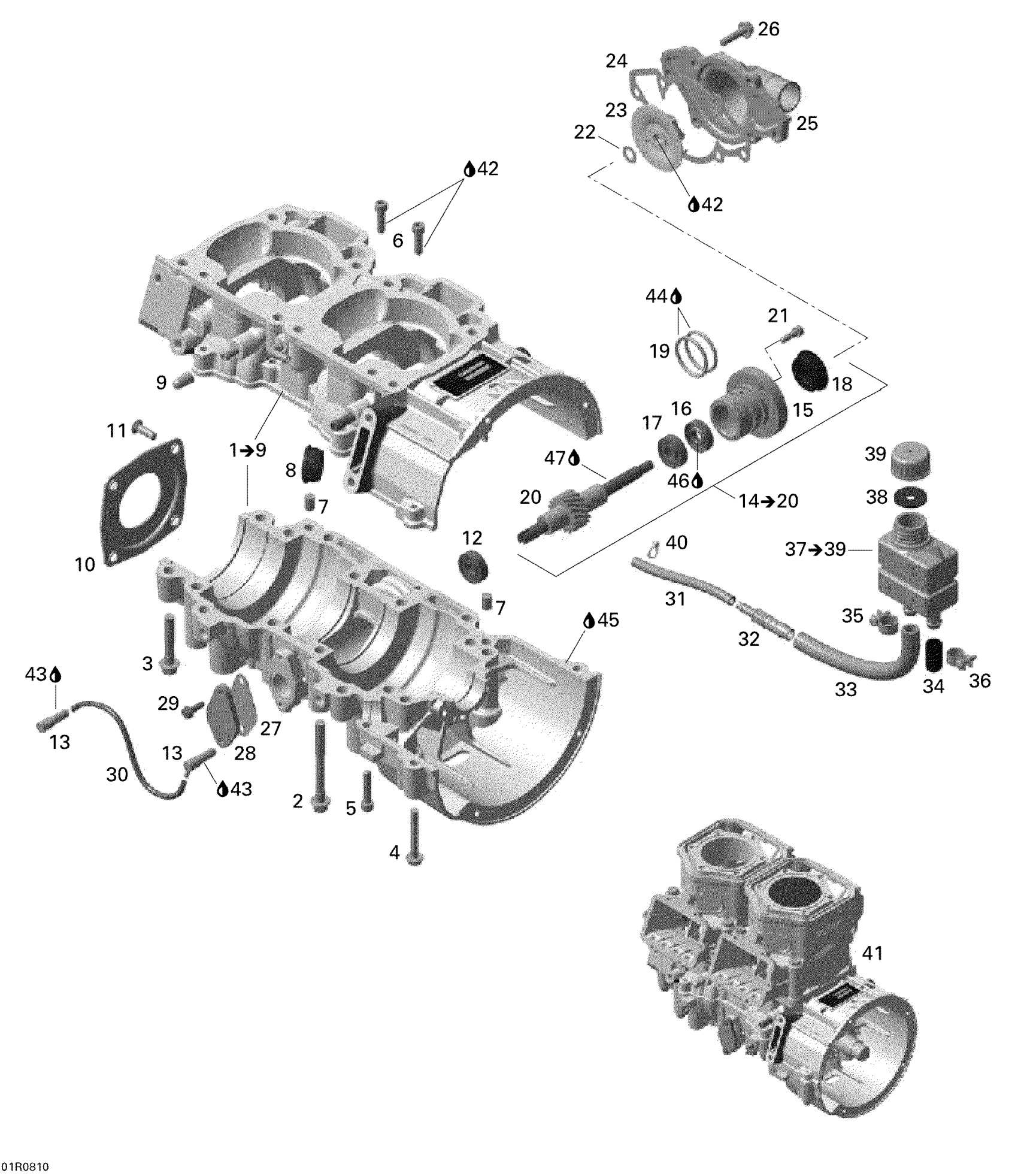

Ski-Doo MX Z 600RS, 2008 01- Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 6

420893291

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$13.16

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

7

Center Pin 8 X 12

420632010

$4.01

8

Cable Grommet

420860965

$14.28

9

Cap

420960770

$4.12

10

Oil Seal Cover

420812422

$14.83

11

Screw M6 X 20

420941436

$3.17

12

Ball Bearing

420232100

$20.99

13

Check Valve

420956511

$35.99

14

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Seal

420230195

$15.36

17

Ball Bearing

420232100

$20.99

18

Rotary Seal

420650371

$43.49

19

O-Ring

420950890

$4.44

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Allen Screw M5 x 16

420840514

$1.90

22

Thrust Washer

420227945

$4.01

23

Water Impeller

420222505

$19.99

24

Gasket This part replaces 420931810.

420931811

$13.76

25

Water Pump Housing

420922630

$61.49

26

Hex. Screw M6 X 25

420240034

$1.90

27

Gasket This part replaces 420931566.

420931568

$10.33

28

Cover Plate

420810827

$14.83

29

Taptite Screw M5 X 16

420941928

Unavailable

30

Oil Hose 1500Mm Long

219704404

$17.26

31

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

32

Fitting

420874370

$14.83

33

OIL TUBE - Call your local BRP dealership

420956239

Unavailable

34

Closure Cap

420960279

$4.59

35

CLAMP - Call your local BRP dealership

420951260

Unavailable

36

CLAMP - Call your local BRP dealership

420951241

$9.79

37

Oil Tank Ass'y | Includes 25 to 27

420956240

$73.99

38

Rubber Gasket

420850350

$5.39

39

Oil Tank Cap

420956250

$15.28

40

Tie Rap

420866710

$5.49

41

SHORT BLOCK 593 RS - Call your local BRP dealership

420059320

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

Sealant Loctite 648

219703000

$45.99

44

Dow Corning 111, 150 g

413707000

$59.99

45

Loctite 5910, 300 ml

293800081

$57.99

46

Petamo Grease, GHY133N, 400 g

420899271

$67.99

47

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
