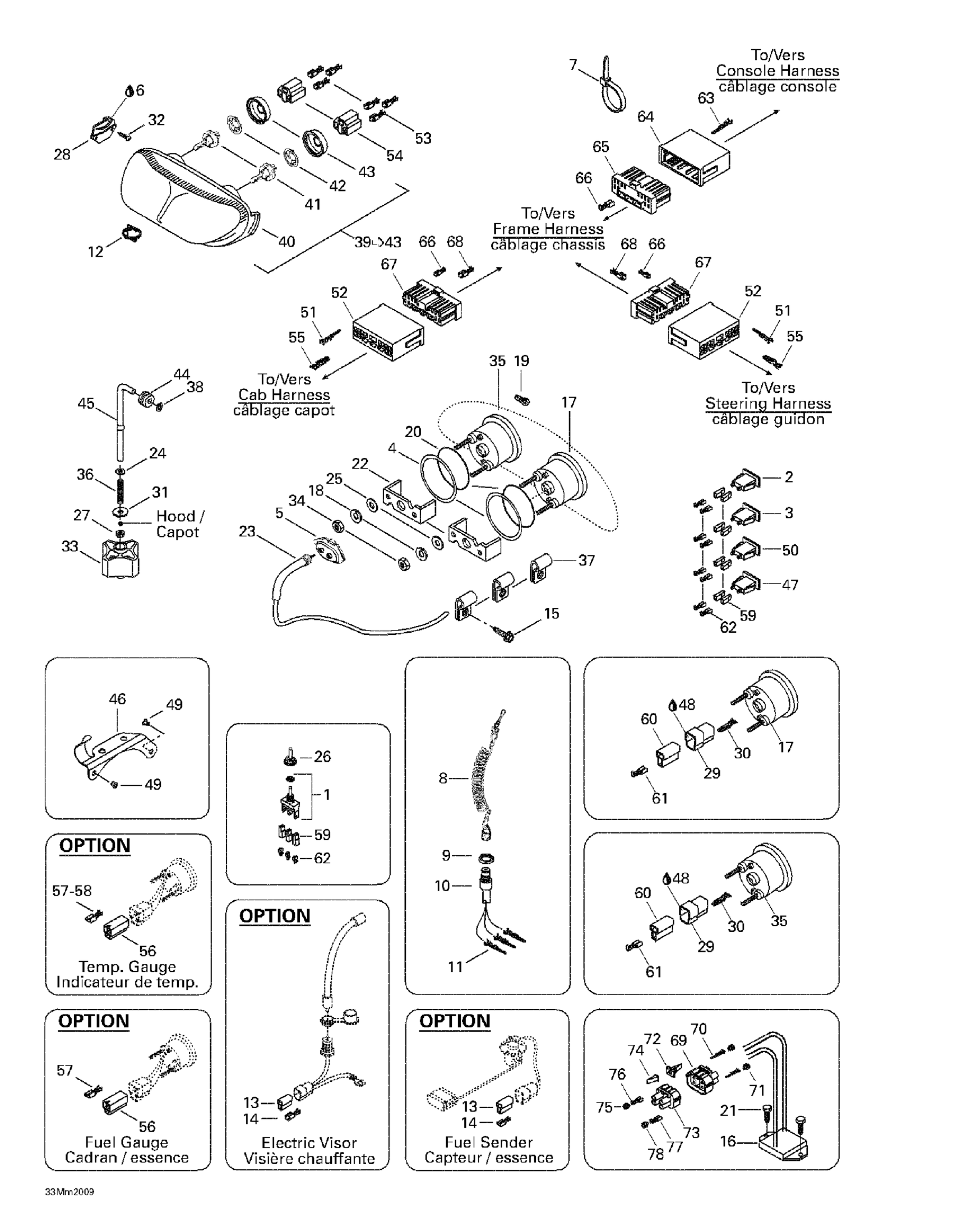

Ski-Doo MX Z 600 SB Black, 2000 Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$35.99

2

Pilot Lamp (Oil Level)

515175355

Unavailable

3

Pilot Lamp (High/Low Beam)

515175356

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle

515175400

Unavailable

6

Grease Tube Lmz, 400 G

413707500

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 173 mm

293750009

$1.04

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

8

DESS

515178284

$84.99

9

Safety Nut (DESS Switch)

278002963

$3.28

10

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

11

Male Terminal

515175232

$1.58

12

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

13

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

14

Female Terminal

561503100

$2.41

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Voltage Regulator | Includes 48 - 52.

515175491

Unavailable

17

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

Hex. Flange Screw M6 X 16

210261650

$1.67

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

415101500

Unavailable

24

Flat Washer 6 mm

234061410

$1.36

25

Flat Washer

517225900

$0.18

26

Switch Cover

515175281

$15.99

27

Elastic Stop Nut M6

232561414

$0.55

28

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

Washer

224060251

$0.58

32

Headlamp Screw

732601315

Unavailable

33

Handle - Call your local BRP dealership

515175548

Unavailable

34

Nut

414806900

Unavailable

35

Tachometer

515175340

Unavailable

36

SPRING - Call your local BRP dealership

415100600

Unavailable

37

Open Clamp

414176000

$1.99

38

Push Nut

732610072

$2.19

39

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

42

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

Grommet - Call your local BRP dealership

415100800

Unavailable

45

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

46

Cable Support

515175254

Unavailable

47

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

48

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

49

Pop Rivet 3/16"

390402300

$0.75

50

Pilot Lamp (Temperature)

515175357

Unavailable

51

Male Terminal

515175232

$1.58

52

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

53

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

54

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

55

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

56

Female Housing

409204300

Unavailable

57

Female Terminal

561503100

$2.41

58

Female Terminal

561503100

$2.41

59

Female Terminal Housing, 1 Circuit

409010400

$7.62

60

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

61

Female Terminal

561503100

$2.41

62

Female Terminal

409010100

$5.61

63

Male Terminal

515175232

$1.58

64

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

65

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

66

Female Terminal

515175231

$4.39

67

Female Terminal Housing, 13 Circuits

515175350

$14.24

68

Female Terminal

515175282

$7.86

69

Female Terminal Housing (4 circuits)

409208000

Unavailable

70

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

71

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

72

Female Lock

409013400

Unavailable

73

Male Terminal Housing (4 circuits)

409207700

Unavailable

74

Male Lock

409013100

Unavailable

75

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

76

Male Terminal

409013000

Unavailable

77

Male Terminal

409010900

Unavailable

78

Seal

409208300

Unavailable
