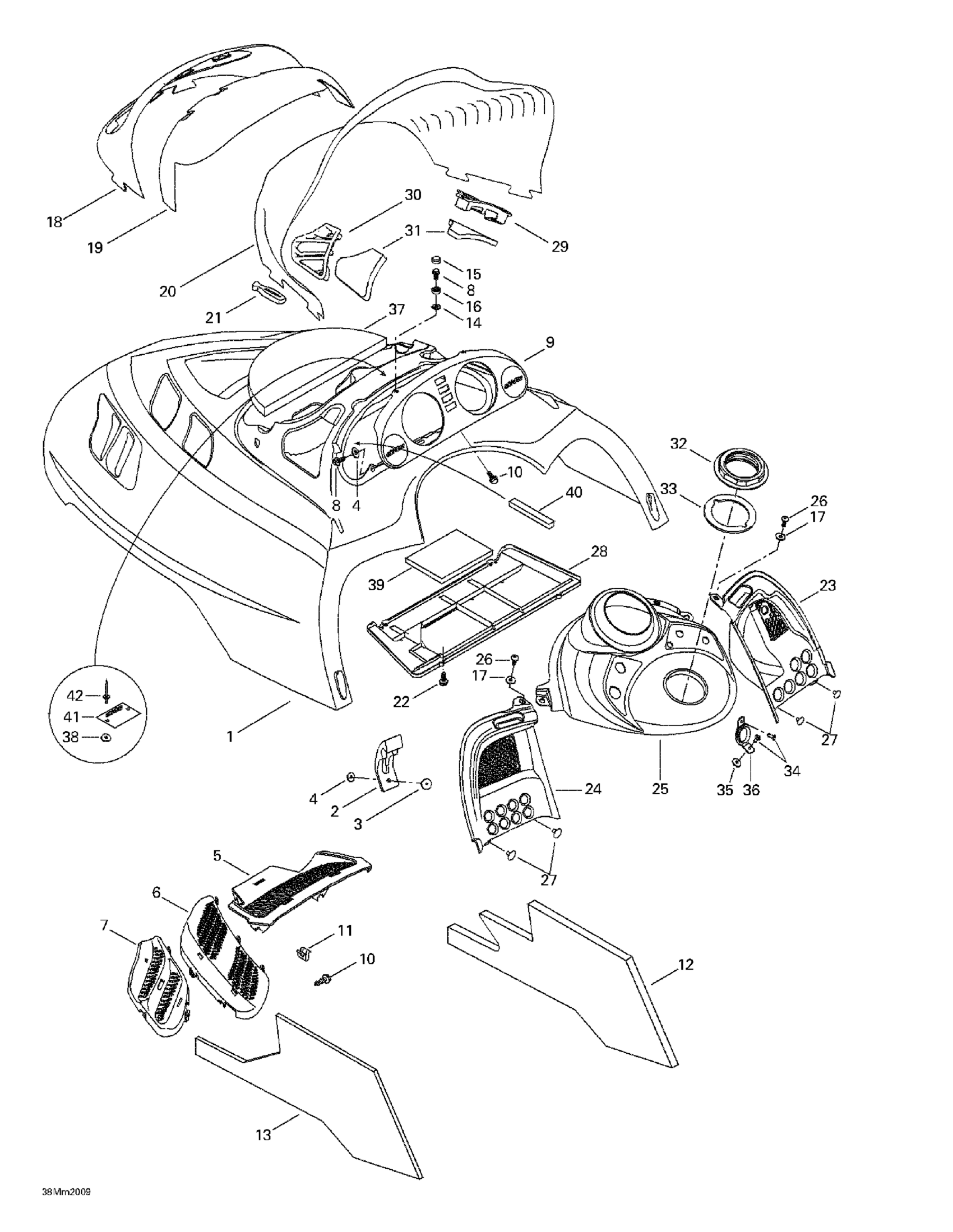

Ski-Doo MX Z 600 SB Black, 2000 09- Cab, Console Diagram

#

Description
Price

1

Hood | MX Z 500. MX Z 700. MX Z 700 SB.

517302411

Unavailable

Hood (Black)

517302333

Unavailable

2

Hood Latch

570027100

$13.49

3

Pop Rivet 3/16"

390906800

$0.93

4

Washer

517124300

$0.19

5

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

Unavailable

6

RH Intermediate Grill, Black | Grand Touring 500.

517302028

Unavailable

LH Intermediate Grill, Black | Grand Touring 500.

517302031

Unavailable

7

RH Side Grille

517302034

Unavailable

LH Side Grille

517302036

Unavailable

8

Screw K40 X 10

241140060

$1.48

9

Indicator Support (STD) | Grand Touring 500. Grand Touring 600. Grand Touring 700.

572098604

Unavailable

10

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

11

Edge Clip

517302785

$0.88

12

RH Side Foam

517302371

Unavailable

13

LH Side Foam

517302372

Unavailable

14

Flat Washer 4 mm, Stainless

234042600

$1.15

15

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

16

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

17

Washer | DS 650 X

391301600

$0.48

18

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

19

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

20

Medium Windshield | OPT on LEG 550F, GT 550F, 380F, GT 380F

517302022

$95.99

21

Windshield Latch

570023800

$4.49

22

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

23

RH CONSOLE - Call your local BRP dealership

517302005

Unavailable

24

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

25

Center Console | MX Z 500. MX Z 700.

517302378

Unavailable

Center Console | MX Z 500 SB (Black). MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

517302343

Unavailable

26

Forming Screw M5 x 16

250000676

$1.01

27

Pop Rivet 3/16"

390406500

$0.88

28

Air Intake Plate

517302413

Unavailable

29

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

30

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

31

Air Intake Foam

517302151

Unavailable

32

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

33

Gasket

293250029

$14.82

34

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

35

Rubber Stopper

517302286

Unavailable

36

Rope Guide

517302129

Unavailable

37

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

Unavailable

38

Flat Washer M3, Stainless

234032600

$0.55

39

Secondary Foam

517302425

Unavailable

40

Foam

517302420

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Pop Rivet 1/8", Black

293150189

$0.27
