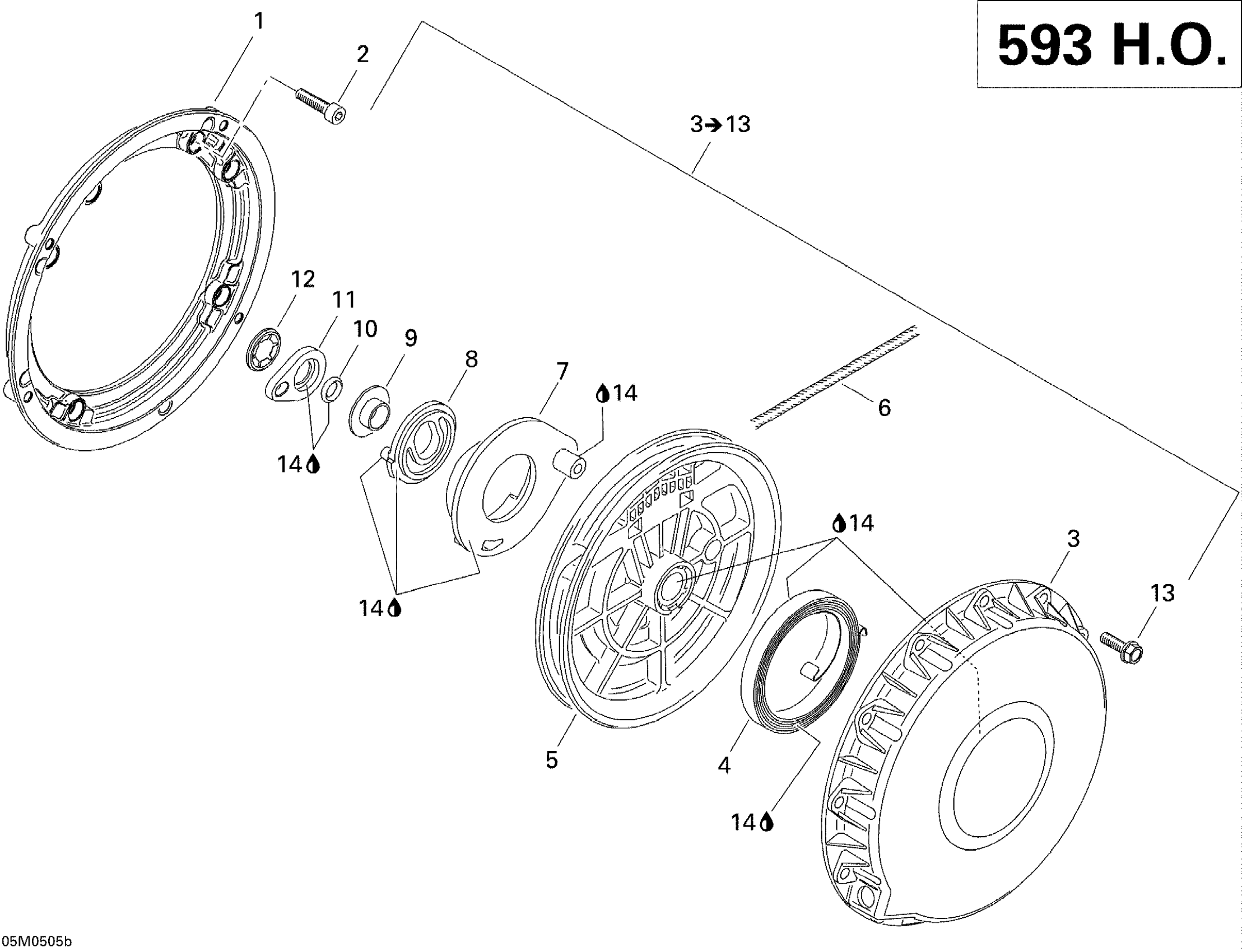

Ski-Doo MX Z 600 HO Trail & Adrenaline & X, 2005 04- Rewind Starter 593HO Diagram

#

Description
Price

1

Flange Connector

420810868

$88.99

2

Socket Head Screw M6 x 16

420241237

$2.22

3

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

3

Starter Housing

420910256

$94.99

4

Rewind Spring

420939115

$30.49

5

Rope Sheave

420852288

$41.49

6

Was 412500100 Rope-Starter

219704403

$158.99

7

Pawl

420852633

$33.99

8

Pawl Lock | Includes no. 8-9

420852640

$6.99

9

Stage Sleeve

420847926

$16.33

10

O-Ring

420250400

$5.39

11

Lock Ring

420852520

$9.27

12

Locking Element

420845560

$2.11

13

Torx Flange Screw M6 X 20

420441386

$2.11

14

Molykote PG 54, 10 g

420899763

$21.99
