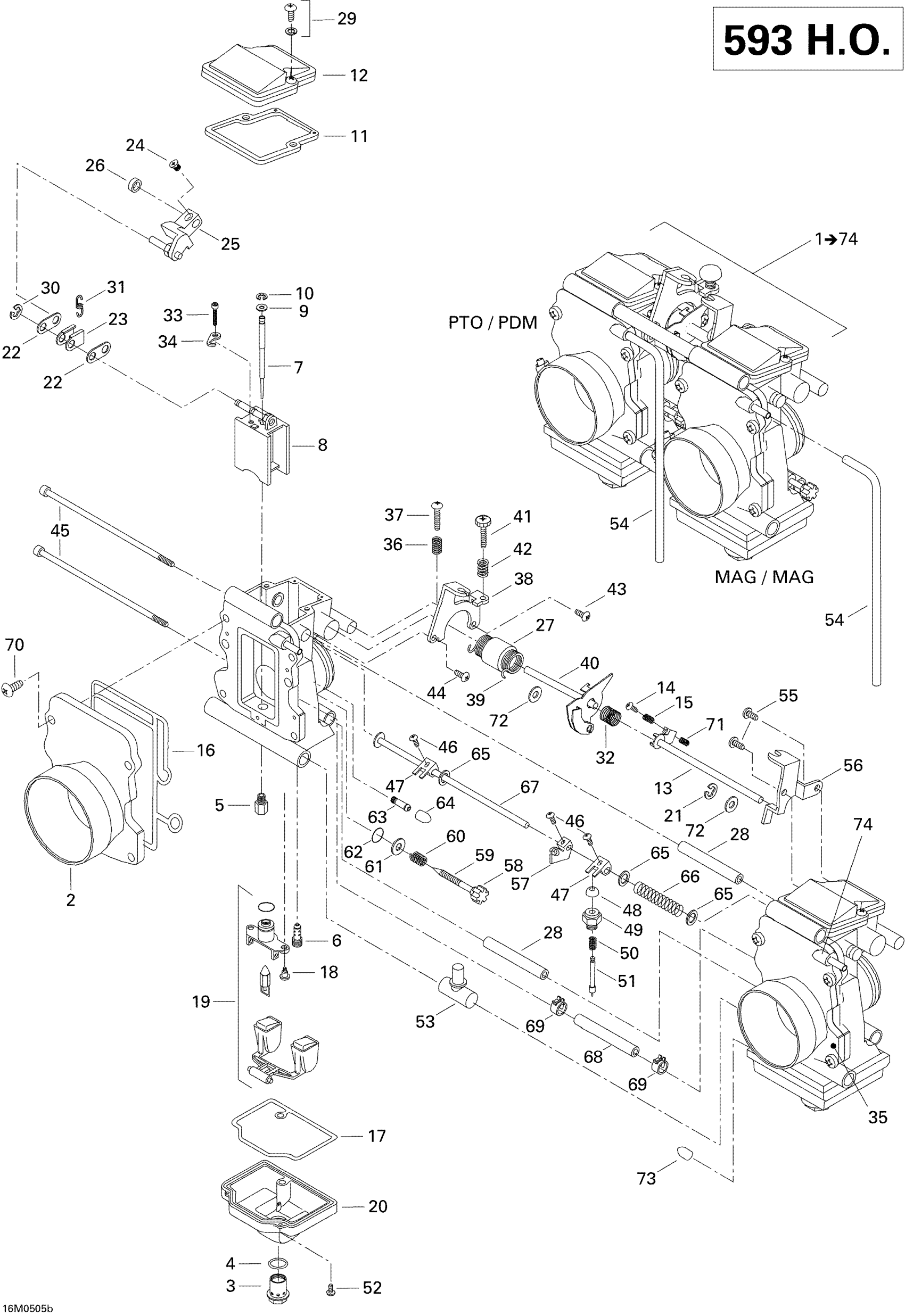

Ski-Doo MX Z 600 HO Trail & Adrenaline & X, 2005 02- Carburetor 593HO Diagram

#

Description
Price

1

Carburetor Kit Tm40-b316 | 600 H.O.

403138780

Unavailable

2

Funnel, PTO

404162017

Unavailable

3

DRAIN SCREW - Call your local BRP dealership

404161955

Unavailable

4

O-Ring

404161945

$9.06

5

Main Jet 380

404106300

$5.21

6

Pilot Jet 17.5

404161944

$5.21

7

NEEDLE JET J8-9DHI14-58 - Call your local BRP dealership

404162071

Unavailable

8

Valve Piston 2.0

404162020

$191.49

9

Packing

404137600

$6.38

10

E-Ring

404152200

$4.14

11

Gasket

404161940

$24.49

12

COVER - Call your local BRP dealership

404161939

$38.99

13

Throttle Shaft

404162006

$207.49

14

Screw

404136700

$14.22

15

Adjustment Spring

404135300

$11.60

16

O-Ring

404161935

$24.49

17

O-Ring

404161961

$17.99

18

Screw

404161933

$11.18

19

Float

404161932

$122.49

20

BODY FLOAT ASS'Y - Call your local BRP dealership

404161960

Unavailable

21

E-Ring

707200027

$5.21

22

Plate

404162007

$17.08

23

Holder

404162008

$17.08

24

Screw

404161928

$12.70

25

Lever

404162009

$98.99

26

Ring

404161926

$12.70

27

Ring

404161925

$12.70

28

RING - Call your local BRP dealership

404161924

Unavailable

29

Screw

404161923

$7.23

30

E-Ring

404138300

$11.18

31

Spring

404162010

$17.08

32

Spring

404162011

$12.70

33

Screw

404161920

$12.70

34

Plate

404161919

$12.70

35

Funnel, MAG

404162021

Unavailable

36

Spring

404161918

$6.45

37

Screw

404161917

$12.70

38

BRACKET, PTO - Call your local BRP dealership

404162022

Unavailable

39

Spring

404162014

$31.99

40

Throttle Shaft

404162015

$207.49

41

Adjustment Screw

404137500

$19.49

42

Spring

404161913

$12.70

43

Screw

404161912

$6.38

44

Screw

404136100

$6.38

45

Screw

404161911

$34.99

46

Screw

404161910

$12.70

47

Lever

404161909

$17.99

48

Cap

404140000

$11.18

49

Guide Holder

404136900

$16.49

50

Spring

404161908

$12.77

51

Plunger Ass'y

404161907

$31.99

52

Screw

404161906

$6.38

53

Nipple

404161905

$47.99

54

Hose

404162001

Unavailable

55

Screw

404161903

$3.08

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Starter Lever

404161901

$35.99

58

Cap

404161899

$12.18

59

Adjuster

404161898

$23.99

60

Spring

404161897

$5.95

61

Washer

404161896

$6.06

62

Packing

404161895

$9.06

63

Nipple

404153400

$12.16

64

CAP - Call your local BRP dealership

404154900

Unavailable

65

Packing

404161894

$12.70

66

Spring

404103500

$8.47

67

SHAFT - Call your local BRP dealership

404161981

Unavailable

68

Hose | Grand Touring 500.

404161956

$19.49

69

Clip | Grand Touring 500.

404161957

$17.08

70

Screw

404138800

$6.06

71

Spring

404135400

$8.89

72

Packing

270500118

$8.89

73

Cap

270500095

$9.59

74

Elbow 90°

404128800

$31.99
