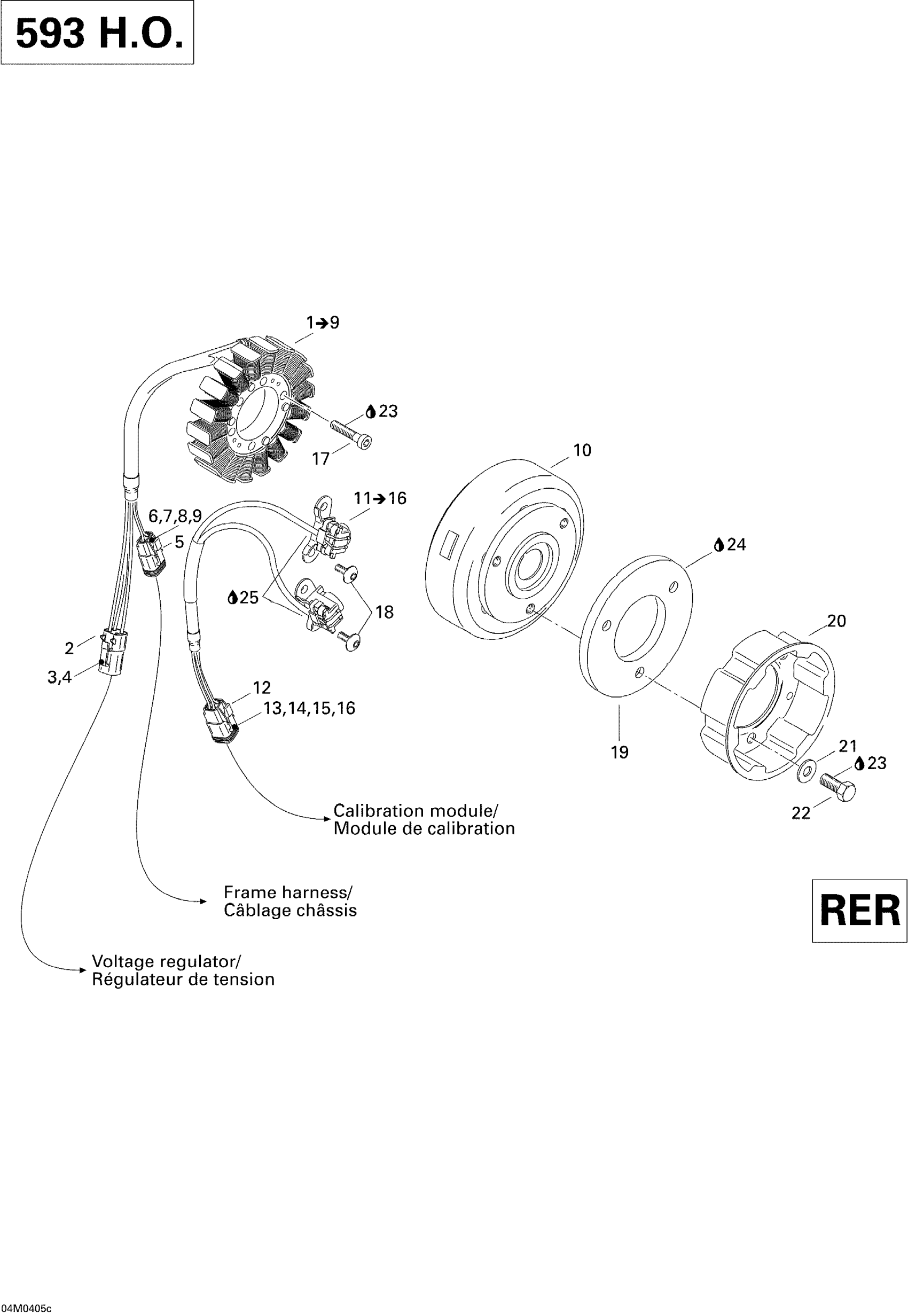

Ski-Doo MX Z 600 HO Trail/Adrenaline/X, 2004 03- Magneto (12V, 360W) (593 HO) (trail (r), Adrenaline, Renegade, Renegade X & X) Diagram

Stator Plate A

420889905

$319.49

Female Terminal Housing, 4 Circuits

278001473

$26.99

Male Terminal

515175568

$9.12

Female Lock, 4 Circuits

278001474

$3.49

Female Terminal Housing, 2 Circuits

515175670

$8.39

Female Terminal

278000632

$2.09

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

Female Lock, 2 Circuits

515175675

$4.55

Sealing Cap

293000052

$3.19

Flywheel

410922966

Unavailable

Pickup Ass'y

410922948

$199.99

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

Female Terminal

278000632

$2.09

Female Terminal | Includes 2d,3a,3b,5a,10,11d

278000661

Unavailable

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

Sealing Cap

293000052

$3.19

Socket Head Screw M6 X 30

205063044

$1.69

Torx Screw M6 X 16

420640324

$2.11

Flywheel

420866756

Unavailable

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

Flat Washer

420827405

$1.69

Hex. Screw M8 X 20

207182044

$0.74

Loctite 243, 10 ml

293800060

$21.49

Sealant Loctite 648

219703000

$45.99

Not Available As Spare Part - Friction Washer

Unavailable
