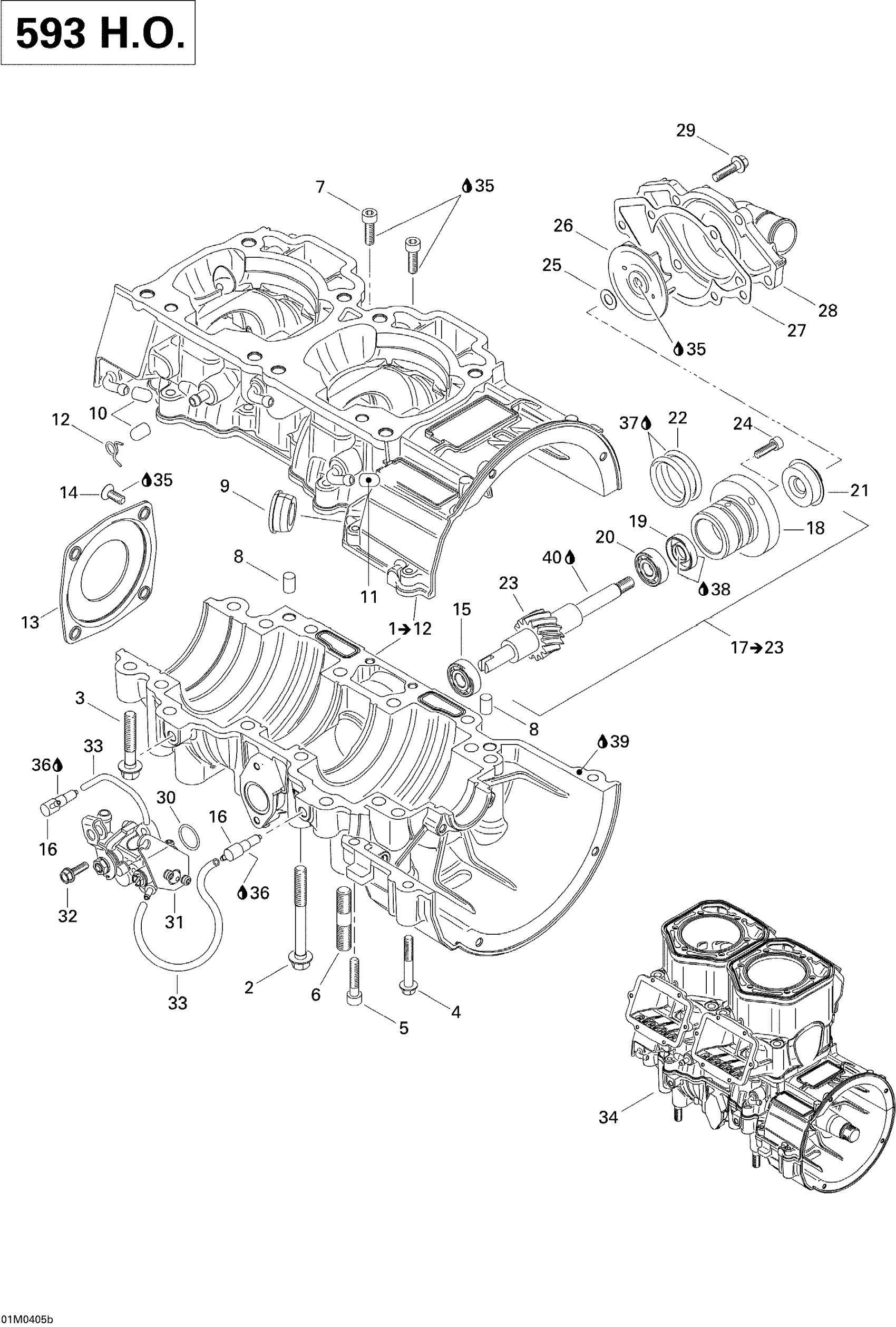

Ski-Doo MX Z 600 HO Trail/Adrenaline/X, 2004 01- Crankcase, Water Pump And Oil Pump (593 HO) Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 12

420889683

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$13.16

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Socket Head Screw M6 X 30

205063044

$1.69

6

STUD M10 X 29 - Call your local BRP dealership

420641834

Unavailable

7

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

8

Center Pin 8 X 12

420632010

$4.01

9

Cable Grommet

420860965

$14.28

10

Cap

420960770

$4.12

11

CAP - Call your local BRP dealership

420960777

Unavailable

12

CLAMP - Call your local BRP dealership

420938190

Unavailable

13

Oil Seal Cover

420812422

$14.83

14

Screw M6 X 20

420941436

$3.17

15

Ball Bearing

420232100

$20.99

16

Check Valve

420956511

$35.99

17

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Oil Seal

420230195

$15.36

20

Ball Bearing

420232100

$20.99

21

Rotary Seal

420650371

$43.49

22

O-Ring

420950890

$4.44

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Allen Screw M5 x 16

420840514

$1.90

25

Thrust Washer

420227945

$4.01

26

Water Impeller

420222505

$19.99

27

Gasket This part replaces 420931810.

420931811

$13.76

28

Water Pump Housing

420922630

$61.49

29

Hex. Screw M6 X 25

420240034

$1.90

30

O-Ring

293300041

$8.57

31

Oil Pump Ass'y

420888780

$409.99

32

Taptite Screw M5 X 16

420941928

Unavailable

33

Oil Hose 1500Mm Long

219704404

$17.26

34

Short Block «593 Ho»

420059341

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Sealant Loctite 648

219703000

$45.99

37

Dow Corning 111, 150 g

413707000

$59.99

38

Petamo Grease, GHY133N, 400 g

420899271

$67.99

39

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

40

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
