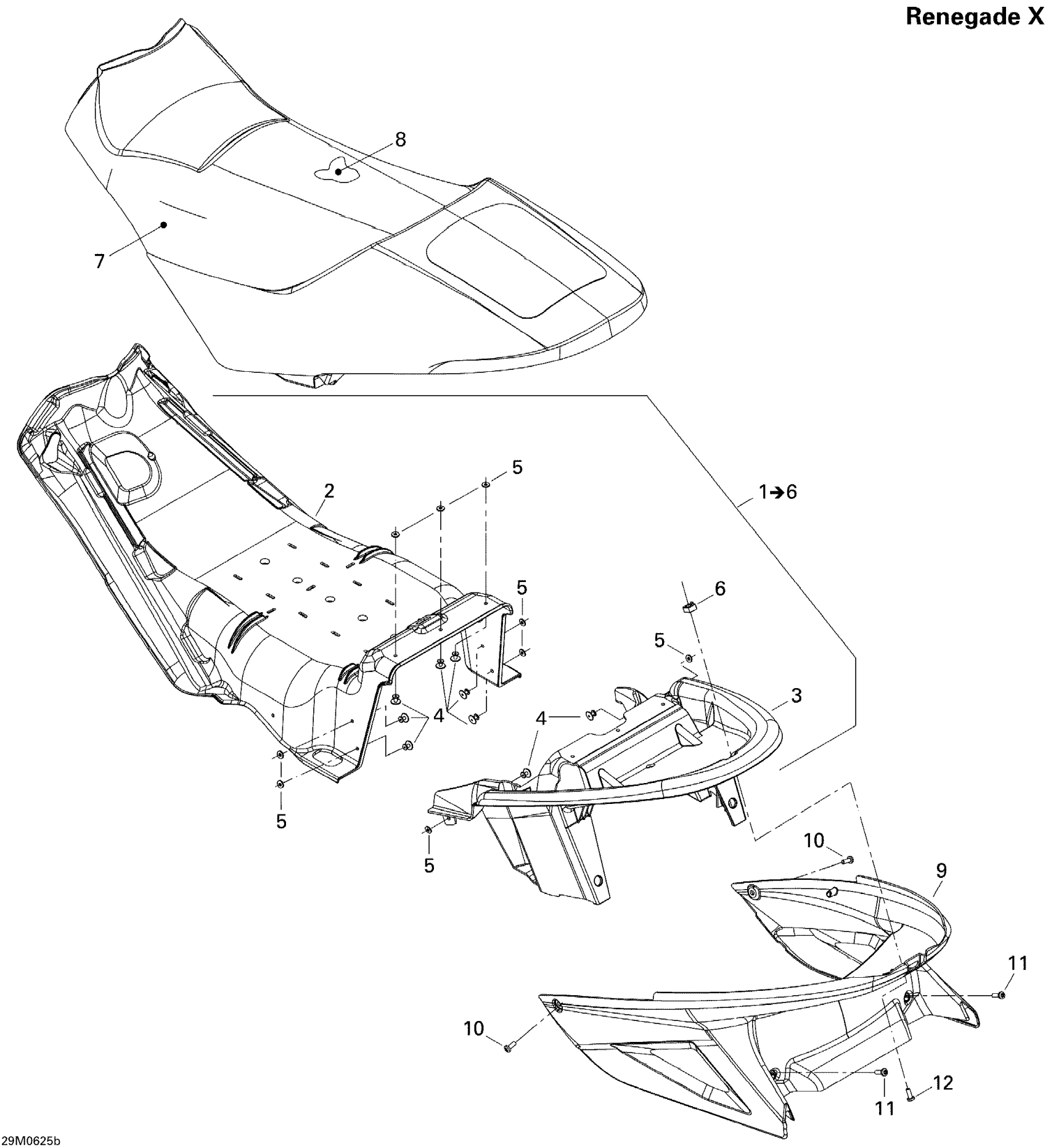

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2006 Seat Renegade X Diagram

#

Description

Price

1

SEAT BASE ASS'Y - Call your local BRP dealership

510004582

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

5

Flat Washer

517225900

$0.18

6

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

7

SEAT COVER - Call your local BRP dealership | Jaune, B-190

510004653

Unavailable

7

SEAT COVER - Call your local BRP dealership | Black, B-160

510004652

Unavailable

8

Seat Foam

510004216

Unavailable

9

TRUNK, BLACK - Call your local BRP dealership

510004628

Unavailable

9

2000 Yellow, Trunk | Black Yellow

510004629

Unavailable

10

Torx Truss Screw M6 X 16

250000721

$1.69

11

Torx Screw M6 X 20

250000722

$1.68

12

Torx Truss Screw M6 X 16

250000721

$1.69
