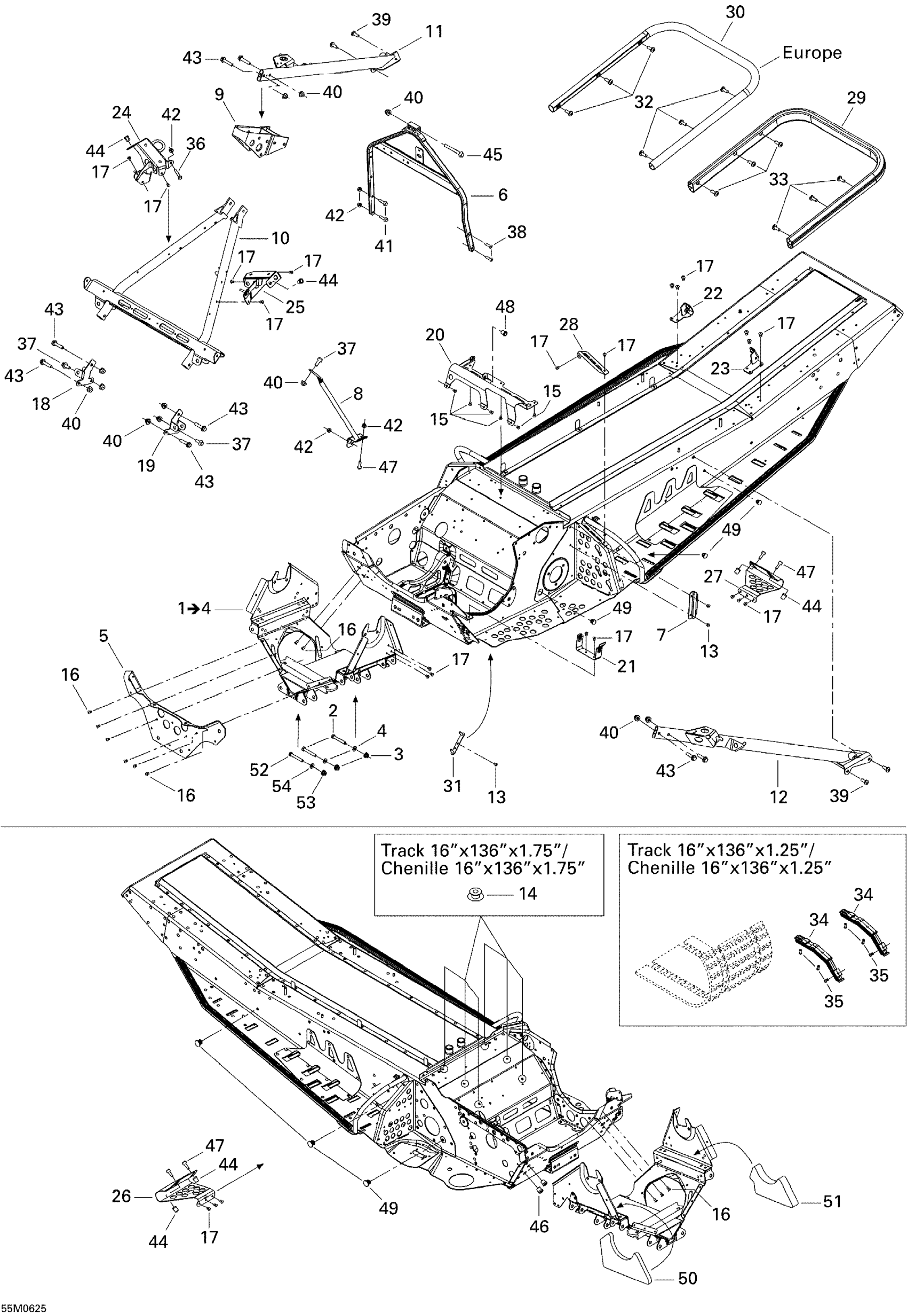

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2006 09- Frame and Components Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 55

207085544

$1.68

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Flat Washer 8 mm

234081410

$0.83

5

Front Plate

518324726

Unavailable

6

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

7

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

8

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

9

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

10

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

11

RH Member

518323352

Unavailable

12

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

13

Pop Rivet 3/16"

390402200

$0.35

14

Pop Rivet 3/16"

390402400

$0.35

15

Pop Rivet 3/16"

390402400

$0.35

16

Avex Rivet

390909100

$0.30

17

Avex Rivet

390909200

$0.30

18

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

19

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

20

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

21

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

22

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

23

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

24

RH Console Support

518323535

Unavailable

25

LH Console Support

518323536

Unavailable

26

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

27

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

28

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

29

Rear Bumper

518323778

Unavailable

30

Rear Bumper | Europe

518324829

Unavailable

31

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

32

Hex. Screw M8 X 20

236282084

$1.48

33

Hex. Screw M8 X 20

236282084

$1.48

34

Front Protector

518324071

Unavailable

35

Pop Rivet 3/16”

390410100

$0.57

36

Hex. Flange Screw M6 X 35

207063544

$1.37

37

Hex. Flange Screw M8 X 20

207682044

$1.15

38

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

39

Pan Head Torx Screw M8 X 12

250000887

$1.90

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Hex. Flange Screw M6 X 25

207662544

$0.64

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

43

Hex. Flange Screw M8 X 35

207683544

$1.69

44

Insert

293450275

$12.99

45

Hex. Flange Screw M8 X 70

207687044

$7.41

46

Insert

293450166

$4.29

47

Hex. Flange Screw M6 X 20

207662044

$2.00

48

Threaded Insert M6 X 1.0

250100242

Unavailable

49

Panel Fastener

518321954

$7.69

50

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

51

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

52

Hex. Screw M8 X 55

207085544

$1.68

53

Hex. Flange Elastic Nut M8

233281414

$1.47

54

Flat Washer 8 mm

234081410

$0.83
