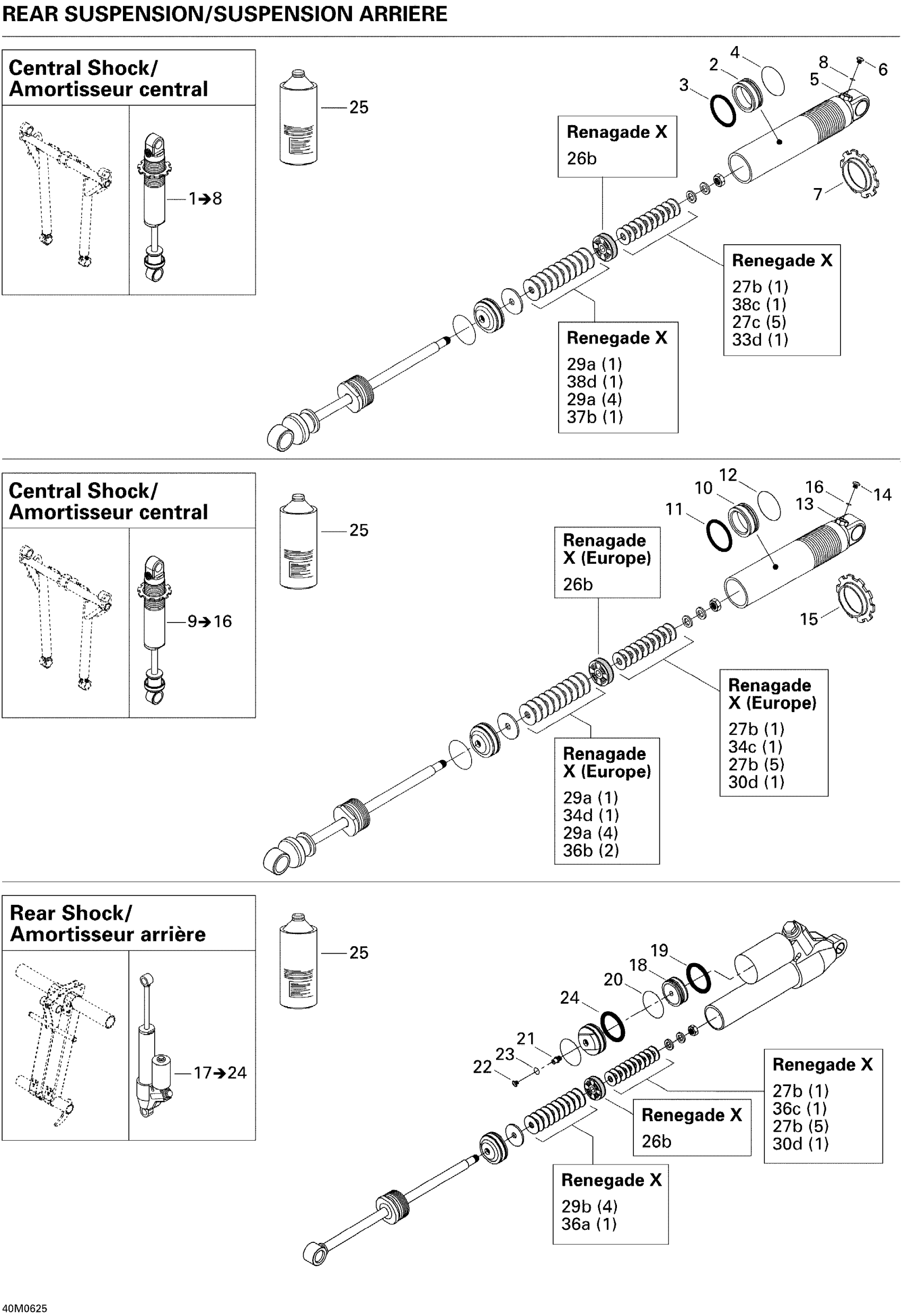

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2006 08- Take Apart Shock, Rear Renegade X Diagram

#

Description
Price

1

Center Shock

503191203

Unavailable

2

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

3

O-Ring

414888312

$17.29

4

Piston Ring

503189308

$79.49

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

8

O-Ring

505070400

$4.54

9

CENTER SHOCK - Call your local BRP dealership | Europe

503191220

Unavailable

10

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

11

O-Ring

414888312

$17.29

12

Piston Ring

503189308

$79.49

13

Air Valve

505070398

$20.99

14

Screw | Not Shown

505070399

$4.12

15

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

16

O-Ring

505070400

$4.54

17

Rear Shock | Renegade X

503190729

Unavailable

18

FREE PISTON - Call your local BRP dealership

415093812

Unavailable

19

O-Ring

415093807

$35.99

20

Piston Ring | Not Shown

415093806

$16.86

21

Air Valve

505070398

$20.99

22

Screw | Not Shown

505070399

$4.12

23

O-Ring

505070400

$4.54

24

O-Ring

415093804

$4.54

25

Shock Oil, 1 Liter

293600035

$73.99

26a

Piston (C36)

414888304

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

26c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

26d

Not Available As Spare Part - Friction Washer

Unavailable

26e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

26f

Not Available As Spare Part - Friction Washer

Unavailable

26g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

27a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

27b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

27c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

27d

Not Available As Spare Part - Friction Washer

Unavailable

28a

Not Available As Spare Part - Friction Washer

Unavailable

28b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

28c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

28d

Not Available As Spare Part - Friction Washer

Unavailable

29a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

29b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

29c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

29d

Not Available As Spare Part - Friction Washer

Unavailable

30a

Not Available As Spare Part - Friction Washer

Unavailable

30b

Not Available As Spare Part - Friction Washer

Unavailable

30c

Not Available As Spare Part - Friction Washer

Unavailable

30d

Not Available As Spare Part - Friction Washer

Unavailable

31a

Not Available As Spare Part - Friction Washer

Unavailable

31b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

31c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

31d

Not Available As Spare Part - Friction Washer

Unavailable

32a

Not Available As Spare Part - Friction Washer

Unavailable

32b

Not Available As Spare Part - Friction Washer

Unavailable

32c

Not Available As Spare Part - Friction Washer

Unavailable

32d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

33a

Not Available As Spare Part - Friction Washer

Unavailable

33b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

33c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

33d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

34a

Not Available As Spare Part - Friction Washer

Unavailable

34b

Not Available As Spare Part - Friction Washer

Unavailable

34c

Not Available As Spare Part - Friction Washer

Unavailable

34d

Not Available As Spare Part - Friction Washer

Unavailable

35a

Not Available As Spare Part - Friction Washer

Unavailable

35b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

35c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

35d

Not Available As Spare Part - Friction Washer

Unavailable

36a

Not Available As Spare Part - Friction Washer

Unavailable

36b

Not Available As Spare Part - Friction Washer

Unavailable

36c

Not Available As Spare Part - Friction Washer

Unavailable

36d

Not Available As Spare Part - Friction Washer

Unavailable

37a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

37b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

37c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

37d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

38a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

38b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

38c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

38d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

39a

Not Available As Spare Part - Friction Washer

Unavailable

39b

Not Available As Spare Part - Friction Washer

Unavailable

39c

Not Available As Spare Part - Friction Washer

Unavailable

39d

Not Available As Spare Part - Friction Washer

Unavailable

40a

Not Available As Spare Part - Friction Washer

Unavailable

40b

Not Available As Spare Part - Friction Washer

Unavailable

40c

Not Available As Spare Part - Friction Washer

Unavailable

40d

Not Available As Spare Part - Friction Washer

Unavailable

41a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

41b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

41c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

41d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
