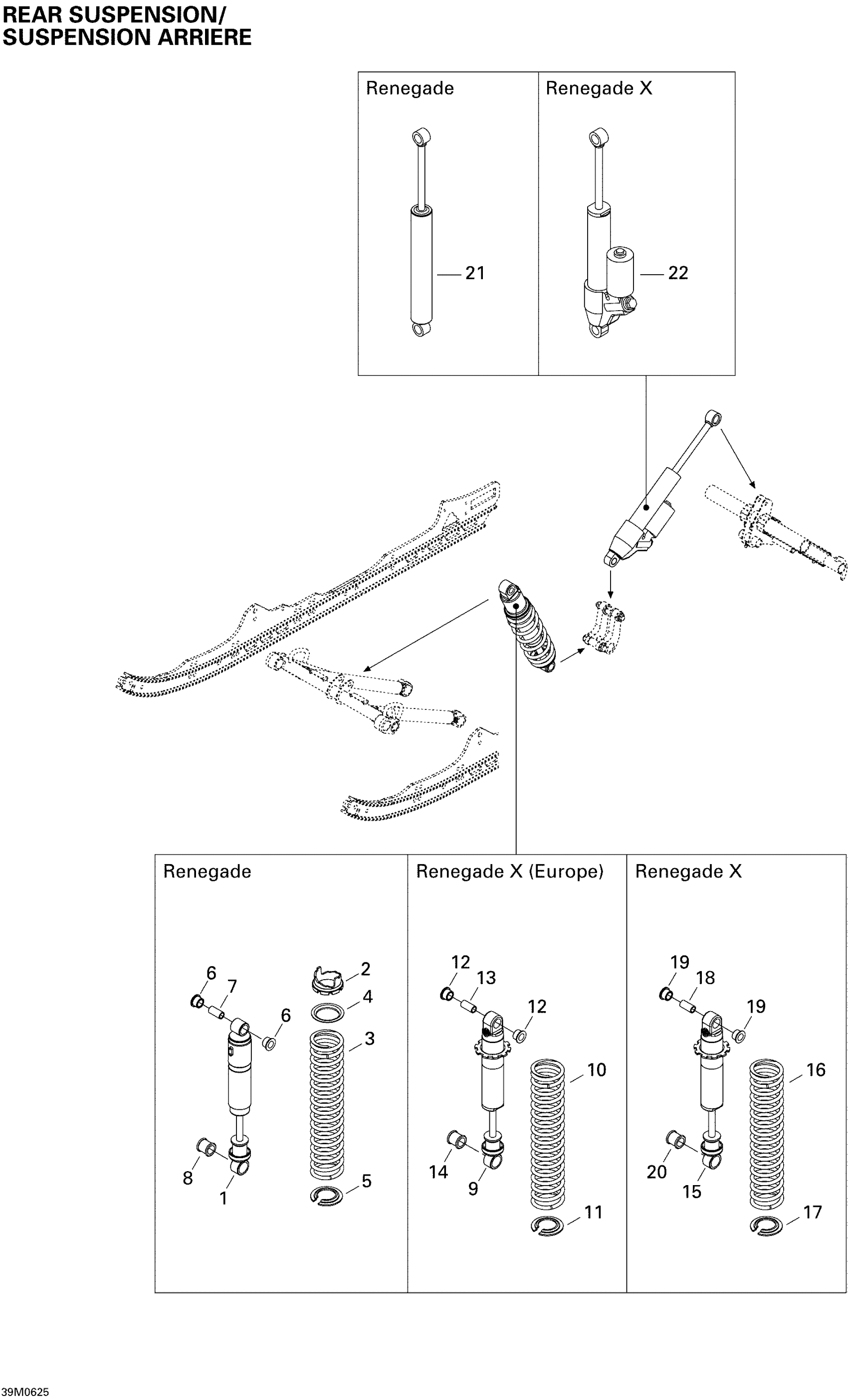

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2006 Rear Suspension Shocks Diagram

#

Description
Price

1

Center Shock | Europe

503190663

$238.43

2

Adjustment Cam

505073625

$12.18

3

Spring | Europe

503191135

Unavailable

4

Spring Guide

503191872

$2.18

5

Spring Stopper

503189912

$16.89

6

Urethane Bushing

503189117

$6.88

7

Bushing | Includes 240d to 240d1

503189282

$4.18

8

Bushing

503189271

$10.46

9

CENTER SHOCK - Call your local BRP dealership | Europe

503191220

Unavailable

10

SPRING - Call your local BRP dealership

503189325

Unavailable

11

Spring Stopper

503189912

$16.89

12

Urethane Bushing

503189117

$6.88

13

Bushing | Includes 240d to 240d1

503189282

$4.18

14

Bushing

503189271

$10.46

15

Center Shock

503191203

Unavailable

16

Spring | Europe

503191135

Unavailable

17

Spring Stopper

503189912

$16.89

18

Urethane Bushing

503189117

$6.88

19

Bushing | Includes 240d to 240d1

503189282

$4.18

20

Bushing

503189271

$10.46

21

Rear Shock

503193520

$238.43

22

Rear Shock | Renegade X

503190729

Unavailable
