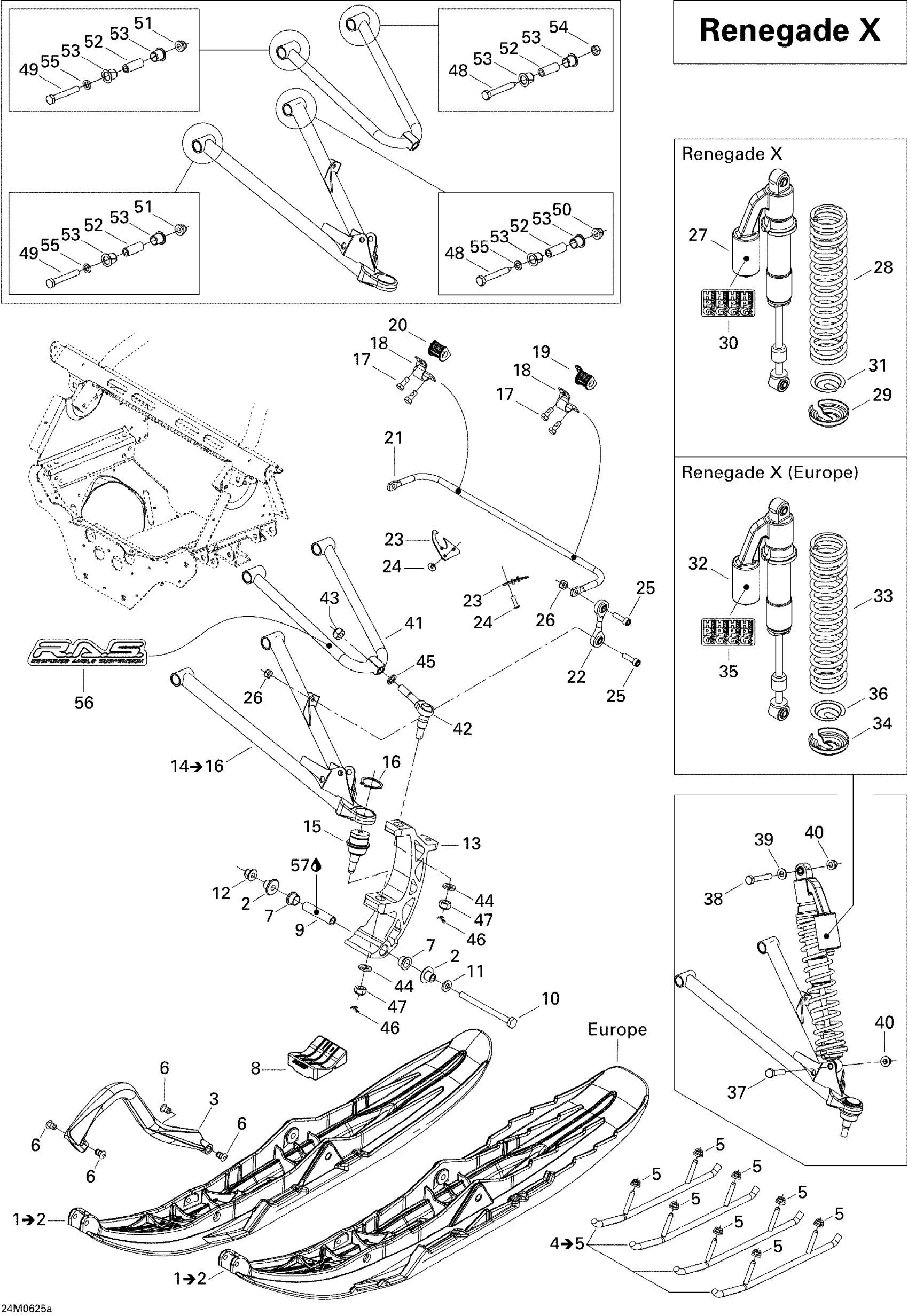

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2006 Front Suspension And Ski Renegade X Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$175.35

1

Deep Black, RH Pilot 5.7 Ski

505072855

$160.74

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$175.35

1

Deep Black, LH Pilot 5.7 Ski

505072854

$175.35

2

Ski Bushing

505071781

$15.35

3

Yellow Handle | Model-MX-Z TNT

505070917

$41.51

4

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$134.58

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

$5.92

8

Ski Stopper

505071779

$16.12

9

Spacer

506133300

$19.97

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Washer

732900049

$0.57

12

Flange Nut M10

732610084

$5.49

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512300

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512200

Unavailable

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

20

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

21

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

22

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.54

25

Socket Head Screw M8 X 30

205083044

$0.92

26

Hex. Elastic Stop Nut M8

232581414

$0.47

27

RH FRONT SHOCK - Call your local BRP dealership

505071204

Unavailable

27

LH Front Shock

505071205

Unavailable

28

SPRING - Call your local BRP dealership | (Europe)

505071834

Unavailable

29

Spring Stopper

706200881

$10.30

30

Shock Decal | X

516002748

Unavailable

31

Cap

706200785

$4.42

32

RH Front Shock | X Europe

505071949

Unavailable

32

LH Front Shock | X Europe

505071950

Unavailable

33

SPRING - Call your local BRP dealership | (Europe)

505071834

Unavailable

34

Spring Stopper

706200881

$10.30

35

Shock Decal | X

516002748

Unavailable

36

Cap

706200785

$4.42

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

39

Washer

503189564

$0.72

40

Hex. Flange Elastic Nut M10

233201414

$1.26

41

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

42

Upper Ball Joint

505072257

$16.89

43

Hex. Flange Elastic Nut M12

250000047

$1.56

44

Flat Washer 12 mm

234021410

$0.68

45

Washer

503189276

$3.20

46

Cotter Pin

211400017

$0.25

47

Hex. Flange Elastic Nut M12

250000047

$1.56

48

Hex. Screw M10 X 75

250001063

$9.74

49

Hex. Screw M10 X 75

250001063

$9.74

50

Hex. Flange Elastic Nut M10

250100165

$0.70

51

Hex. Flange Elastic Nut M10

250100165

$0.70

52

Bushing

505070567

$19.97

53

Arm Bushing

505070566

$3.14

54

Elastic Flange Nut M10

232501416

$1.25

55

Washer

503189564

$0.72

56

R.a.s. Suspension Decal

516002747

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
