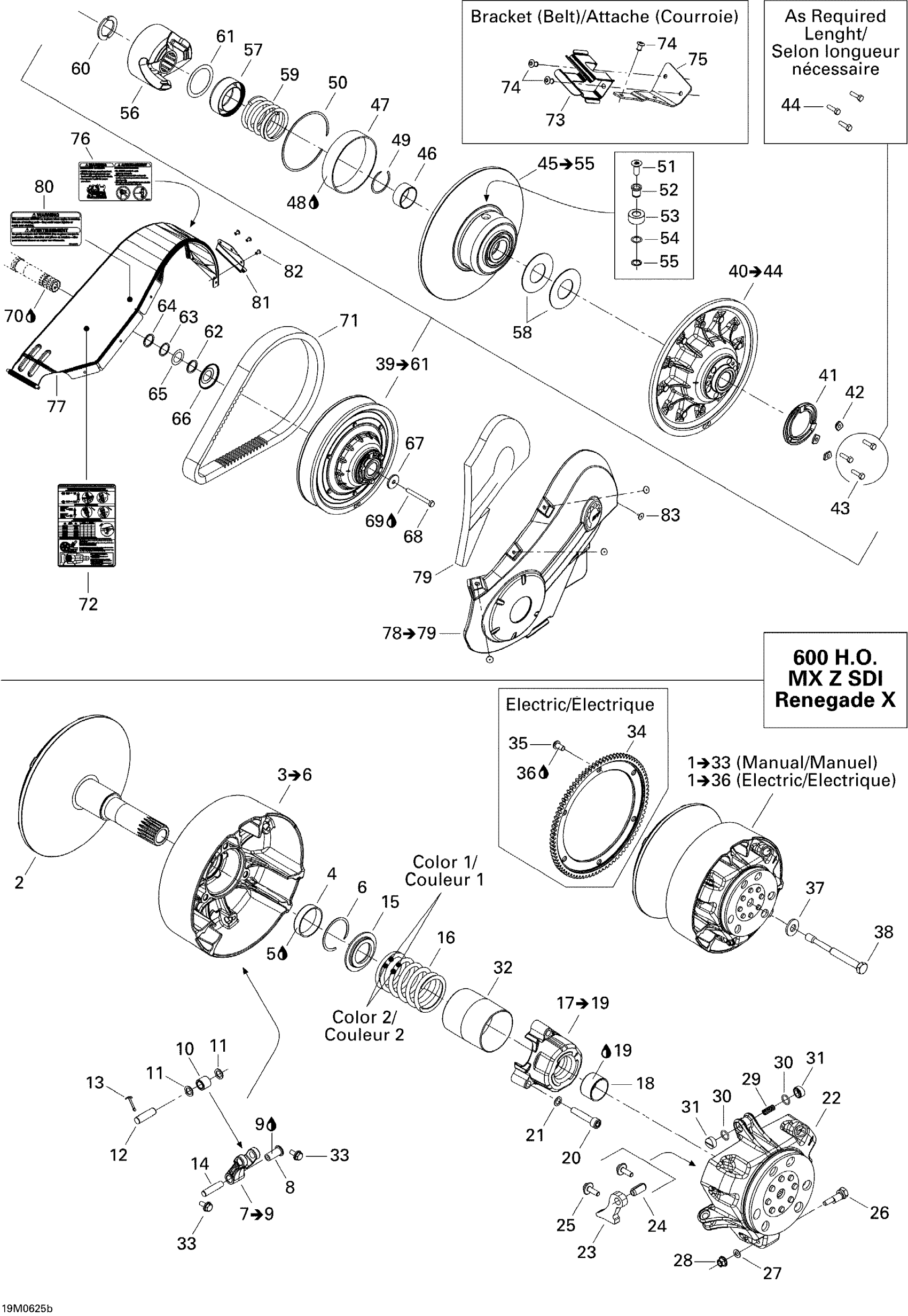

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2006 Pulley System Renegade X Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$221.51

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$193.82

4

Bushing

417222758

$20.74

5

Loctite 609, 10 ml

413703100

$24.58

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$47.66

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$24.58

10

Roller

417222947

$19.97

11

Stopper Washer

417004302

$15.99

12

Pin

417004308

$13.18

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Spring, Blue/Orange

414639000

$32.28

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

19

Loctite 609, 10 ml

413703100

$24.58

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

$2.06

22

Governor Cup

417222213

Unavailable

23

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.86

28

Hex. Flange Nut M6

233061414

$1.34

29

Spring

417005700

$4.65

30

O-Ring

732401030

$0.95

31

Slider Shoe This part replaces 420460045.

417223021

$5.99

32

Guard

417009205

$16.89

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

34

Ring Gear_Starter This part replaces 417223738.

417225070

$223.05

35

Hex. Screw M8 X 16

236281684

$4.00

36

Loctite 271, 10 ml

293800005

$20.77

37

Spring Washer 14 mm

250200006

$5.80

38

Drive Pulley Bolt

417120000

$63.82

39

Not Available As Spare Part - Friction Washer

Unavailable

40

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

41

Adjustment Ring

415005800

Unavailable

42

Adjustment Shim

415005900

Unavailable

43

Hex. Screw M6 X 25

207162544

$1.05

44

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

45

Sliding Flange Ass'y

417127014

Unavailable

46

BUSHING - Call your local BRP dealership

417126901

Unavailable

47

BUSHING - Call your local BRP dealership

417126902

Unavailable

48

Loctite, Black Max, 3 ml

413408300

$24.58

49

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

50

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

51

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.58

52

Stud

417127015

$39.97

53

Roller

417126892

$34.58

54

V-CIRCLIP - Call your local BRP dealership

417126823

Unavailable

55

WASHER - Call your local BRP dealership

417126797

$5.37

56

Cam Ass’y

417126967

Unavailable

57

GUARD - Call your local BRP dealership

417126381

Unavailable

58

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

59

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

60

HALF KEY - Call your local BRP dealership

417126734

Unavailable

61

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

62

Spacer

417300252

$5.17

63

Spacer

417300265

$2.12

64

Spacer

417300252

$5.17

65

Shim

504112000

$6.05

66

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

67

Strength Washer

517302322

$11.09

68

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

69

Loctite 243, 10 ml

293800060

$20.77

70

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

71

Drive Belt

417300586

$142.28

72

DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership

516002616

Unavailable

73

Bracket

517281905

$15.35

74

Pop Rivet 3/16"

390402200

$0.26

75

Bracket

417300282

Unavailable

76

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

77

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

78

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

79

Foam

417300246

Unavailable

80

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

81

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

82

Avex Rivet

390909200

$0.29

83

Pop Rivet 3/16"

293150103

$0.54
