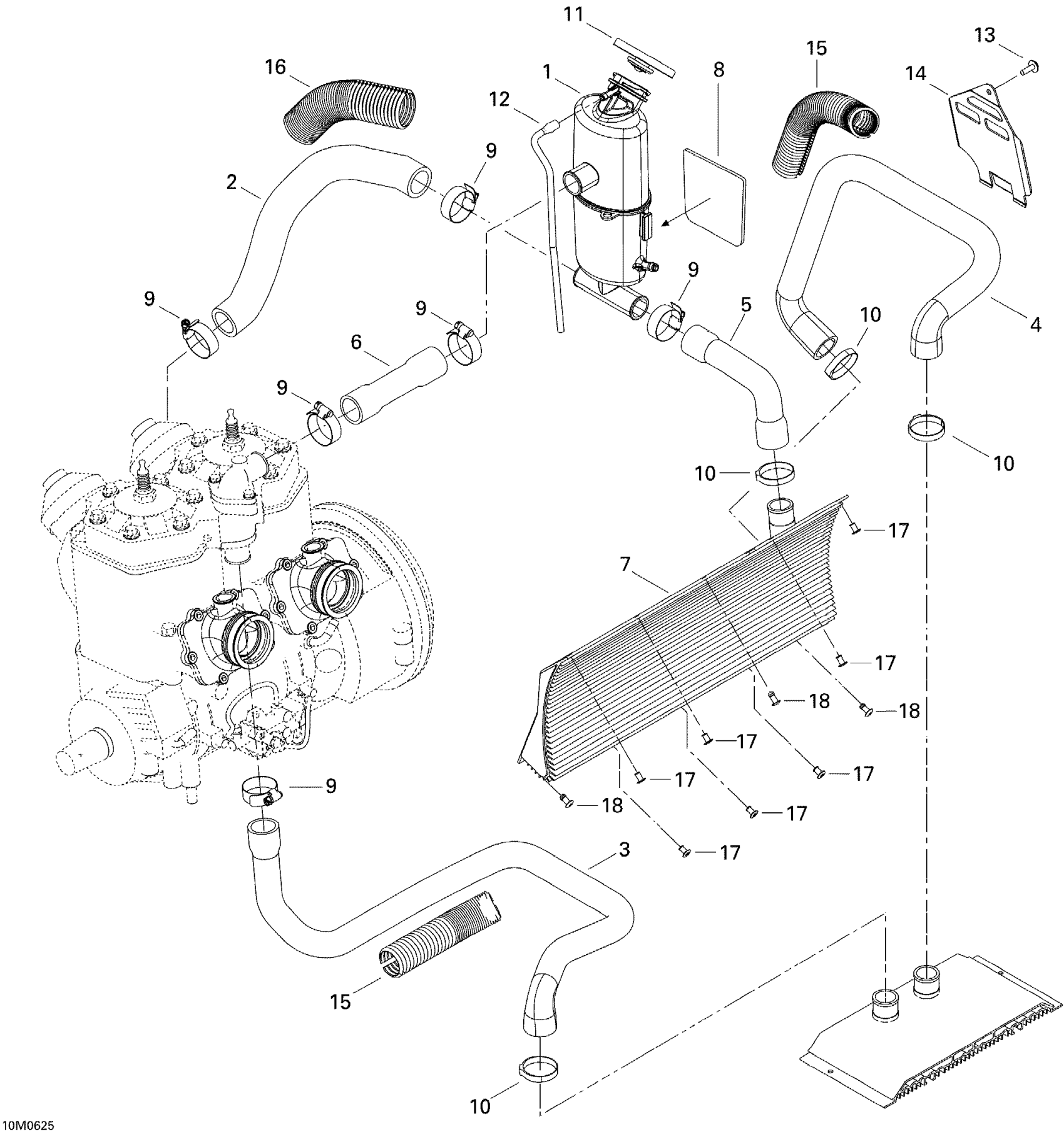

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2006 01- Cooling System Diagram

#

Description
Price

1

Coolant Tank

509000408

$90.99

2

ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000135

Unavailable

3

ENGINE OUTLET HOSE - Call your local BRP dealership

509000334

Unavailable

4

Engine Inlet Hose

509000335

Unavailable

5

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000266

Unavailable

6

Hose

509000129

Unavailable

7

FRONT RADIATOR - Call your local BRP dealership

518323903

Unavailable

8

REFECTIVE SHEET - Call your local BRP dealership

509000190

Unavailable

9

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

10

Oetiker Gear Clamp

509000181

$4.44

11

Pressure Cap

509000187

$29.49

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

13

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

14

DEFLECTOR - Call your local BRP dealership

509000257

Unavailable

15

Tubing 25 MM 1000MM Long

219704402

$15.99

16

Tubing 35 MM 1000MM Long

219704428

$10.99

17

Pop Rivet 3/16"

390402200

$0.35

18

Avex Rivet

390909100

$0.30
