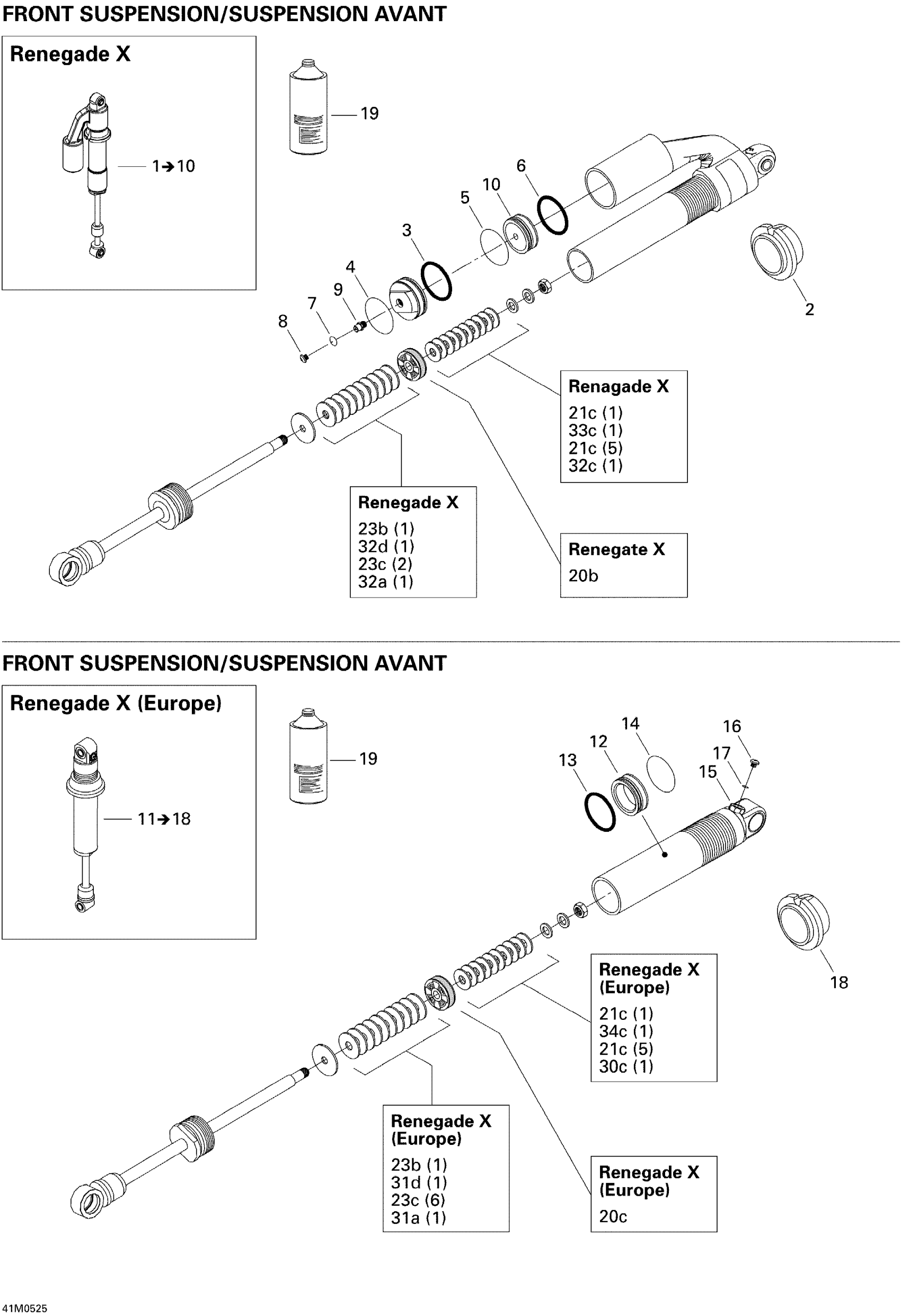

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 07- Take Apart Shock, Front Diagram

#

Description
Price

1

RH FRONT SHOCK - Call your local BRP dealership | X

505071301

Unavailable

1

LH Front Shock | X

505071300

Unavailable

2

SPRING PLASTIC SEAT - Call your local BRP dealership

505071167

Unavailable

3

O-Ring

415093804

$4.54

4

STOP RING - Call your local BRP dealership

415093805

Unavailable

5

Piston Ring | Not Shown

415093806

$16.86

6

O-Ring

415093807

$35.99

7

O-Ring

505070400

$4.54

8

Screw | Not Shown

505070399

$4.12

9

Air Valve

505070398

$20.99

10

FREE PISTON - Call your local BRP dealership

415093812

Unavailable

11

Front Shock | 380F Europe

505071557

Unavailable

12

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

13

O-Ring

414888312

$17.29

14

Piston Ring

503189308

$79.49

15

Air Valve

505070398

$20.99

16

Screw | Not Shown

505070399

$4.12

17

O-Ring

505070400

$4.54

18

SPRING PLASTIC SEAT - Call your local BRP dealership

505071167

Unavailable

19

Shock Oil, 1 Liter

293600035

$73.99

20a

Piston (C36)

414888304

Unavailable

20b

Not Available As Spare Part - Friction Washer

Unavailable

20c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

20d

Not Available As Spare Part - Friction Washer

Unavailable

20e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

20f

Not Available As Spare Part - Friction Washer

Unavailable

20g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

21a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

21b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

21c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

21d

Not Available As Spare Part - Friction Washer

Unavailable

22a

Not Available As Spare Part - Friction Washer

Unavailable

22b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

22c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

22d

Not Available As Spare Part - Friction Washer

Unavailable

23a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

23b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

23c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

23d

Not Available As Spare Part - Friction Washer

Unavailable

24a

Not Available As Spare Part - Friction Washer

Unavailable

24b

Not Available As Spare Part - Friction Washer

Unavailable

24c

Not Available As Spare Part - Friction Washer

Unavailable

24d

Not Available As Spare Part - Friction Washer

Unavailable

25a

Not Available As Spare Part - Friction Washer

Unavailable

25b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

25c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

25d

Not Available As Spare Part - Friction Washer

Unavailable

26a

Not Available As Spare Part - Friction Washer

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

26c

Not Available As Spare Part - Friction Washer

Unavailable

26d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

27a

Not Available As Spare Part - Friction Washer

Unavailable

27b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

27c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

27d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

28a

Not Available As Spare Part - Friction Washer

Unavailable

28b

Not Available As Spare Part - Friction Washer

Unavailable

28c

Not Available As Spare Part - Friction Washer

Unavailable

28d

Not Available As Spare Part - Friction Washer

Unavailable

29a

Not Available As Spare Part - Friction Washer

Unavailable

29b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

29c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

29d

Not Available As Spare Part - Friction Washer

Unavailable

30a

Not Available As Spare Part - Friction Washer

Unavailable

30b

Not Available As Spare Part - Friction Washer

Unavailable

30c

Not Available As Spare Part - Friction Washer

Unavailable

30d

Not Available As Spare Part - Friction Washer

Unavailable

31a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

31b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

31c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

31d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

32a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

32b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

32c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

32d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

33a

Not Available As Spare Part - Friction Washer

Unavailable

33b

Not Available As Spare Part - Friction Washer

Unavailable

33c

Not Available As Spare Part - Friction Washer

Unavailable

33d

Not Available As Spare Part - Friction Washer

Unavailable

34a

Not Available As Spare Part - Friction Washer

Unavailable

34b

Not Available As Spare Part - Friction Washer

Unavailable

34c

Not Available As Spare Part - Friction Washer

Unavailable

34d

Not Available As Spare Part - Friction Washer

Unavailable

35a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

35b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

35c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

35d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
