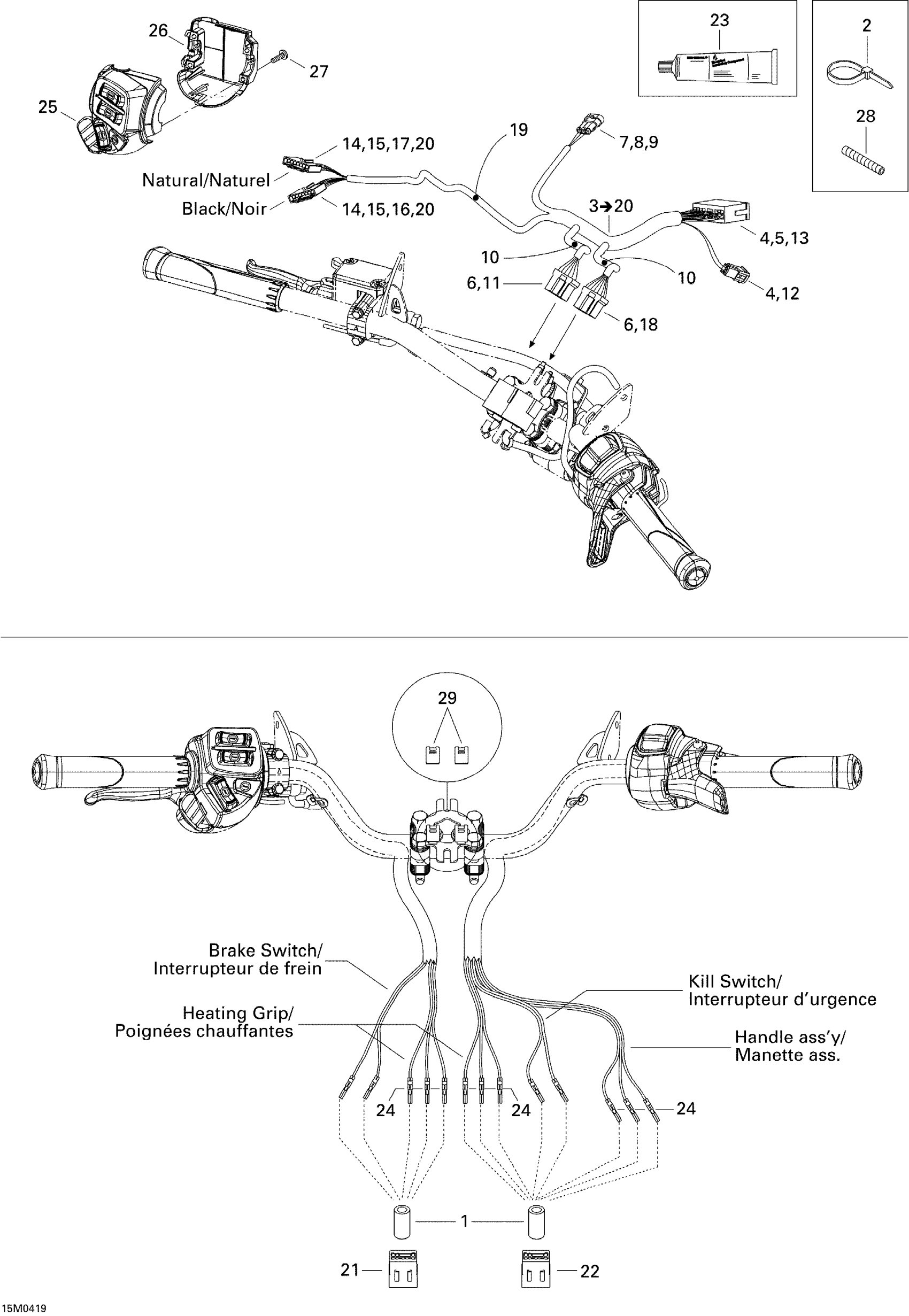

Ski-Doo MX Z 600 HO SDI Renegade, Early Intro, 2005 10- Steering Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

3

Steering Harness | Includes items 3 to 20

515176122

Unavailable

4

Male Terminal

515175232

$1.58

5

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

6

Female Terminal

515175231

$4.39

7

Male Terminal | Europe Models

409012900

$3.28

8

Housing

710000568

$11.12

9

Wire Seal

278001013

$3.28

10

Tubing 10 MM 1000MM Long

219704407

$2.79

11

Female Terminal Housing, 6 Circuits

515175543

$9.49

12

Male Terminal Housing, 2 Circuits

515175654

$9.12

13

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

14

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

15

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

16

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

17

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

18

Female Terminal Housing, 8 Circuits

515175819

$7.62

19

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

20

Female Terminal

515175941

$2.69

21

Male Terminal Housing, 6 Circuits

515175662

$8.79

22

Male Terminal Housing, 8 Circuits

515175817

$8.79

23

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

24

Male Terminal

515175232

$1.58

25

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

26

Switch Housing Plate

515175926

$20.99

27

Torx Screw #8-18

250000263

$1.04

28

Tubing 6 Mm 3000Mm Long

219704425

$13.75

29

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable
