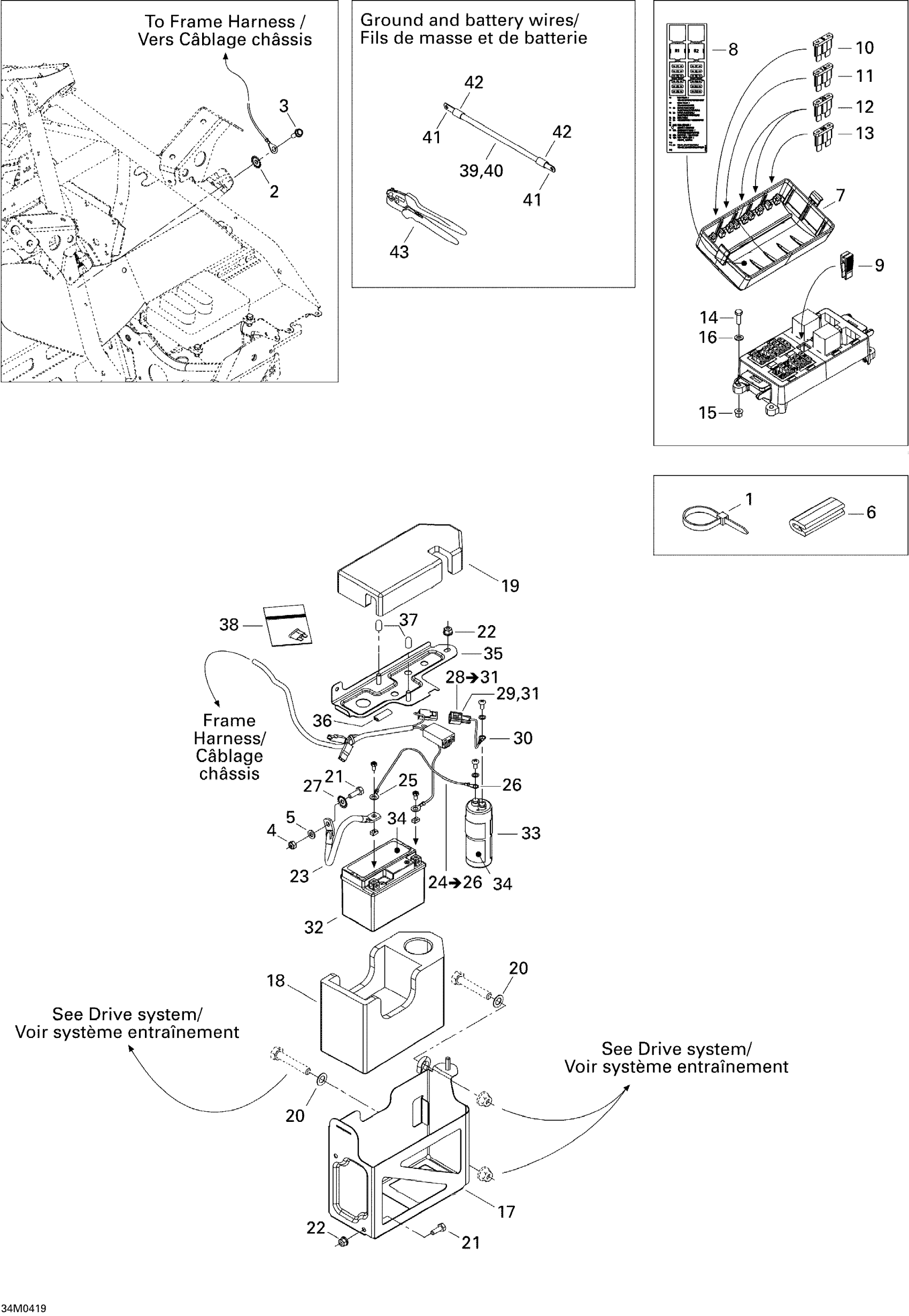

Ski-Doo MX Z 600 HO SDI Renegade, Early Intro, 2005 10- Battery and Accesories Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 173 mm

293750009

$1.04

2

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

3

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

4

Elastic Stop Nut M6

232561414

$0.55

5

Flat Washer 6 mm

234061410

$1.36

6

Was 271000110 Protection Trim

219704353

$15.99

7

COVER - Call your local BRP dealership

515176066

Unavailable

8

Fuse Decal

516002141

Unavailable

9

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

10

Fuse, 5 Amperes | CE

278000344

$3.28

11

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

12

Fuse, 20 Amperes

409003900

$3.28

13

Fuse, 30 Amperes

410917200

$3.28

14

Hex. Screw M5 X 20

207152044

$0.90

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Flat Washer M5

234051410

$0.53

17

Battery Support, Black

515176017

Unavailable

18

Capacitor Support

515176026

Unavailable

19

COVER - Call your local BRP dealership | Manual Start

515176114

Unavailable

20

Washer

503175800

$3.28

21

Hex. Screw M6 X 18

207161844

$0.76

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Not Available As Spare Part - Friction Washer

Unavailable

24

GROUND HARNESS, CAPACITOR - Call your local BRP dealership | Manual Start

515176119

Unavailable

25

Open Barrel

278000992

$2.21

26

Ring Terminal

515175504

$9.12

27

Lock Washer Serrated M6

250200041

$1.15

28

CAPACITOR HARNESS - Call your local BRP dealership | Manual Start, Includes 36 to 39

515176120

Unavailable

29

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

30

Ring Terminal

515175504

$9.12

31

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

32

Battery 12 Volt 4 Ah

415130961

Unavailable

33

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

34

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

35

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

36

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

37

Cap

515176141

$3.09

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Ground Cable Battery, no 6, meter)

278001680

Unavailable

40

Cable Battery, no 6, meter)

278001690

Unavailable

41

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

42

Was 710000483 Heat Shrink Tubing

219704447

$78.99

43

Crimp Plier

529035730

Unavailable
