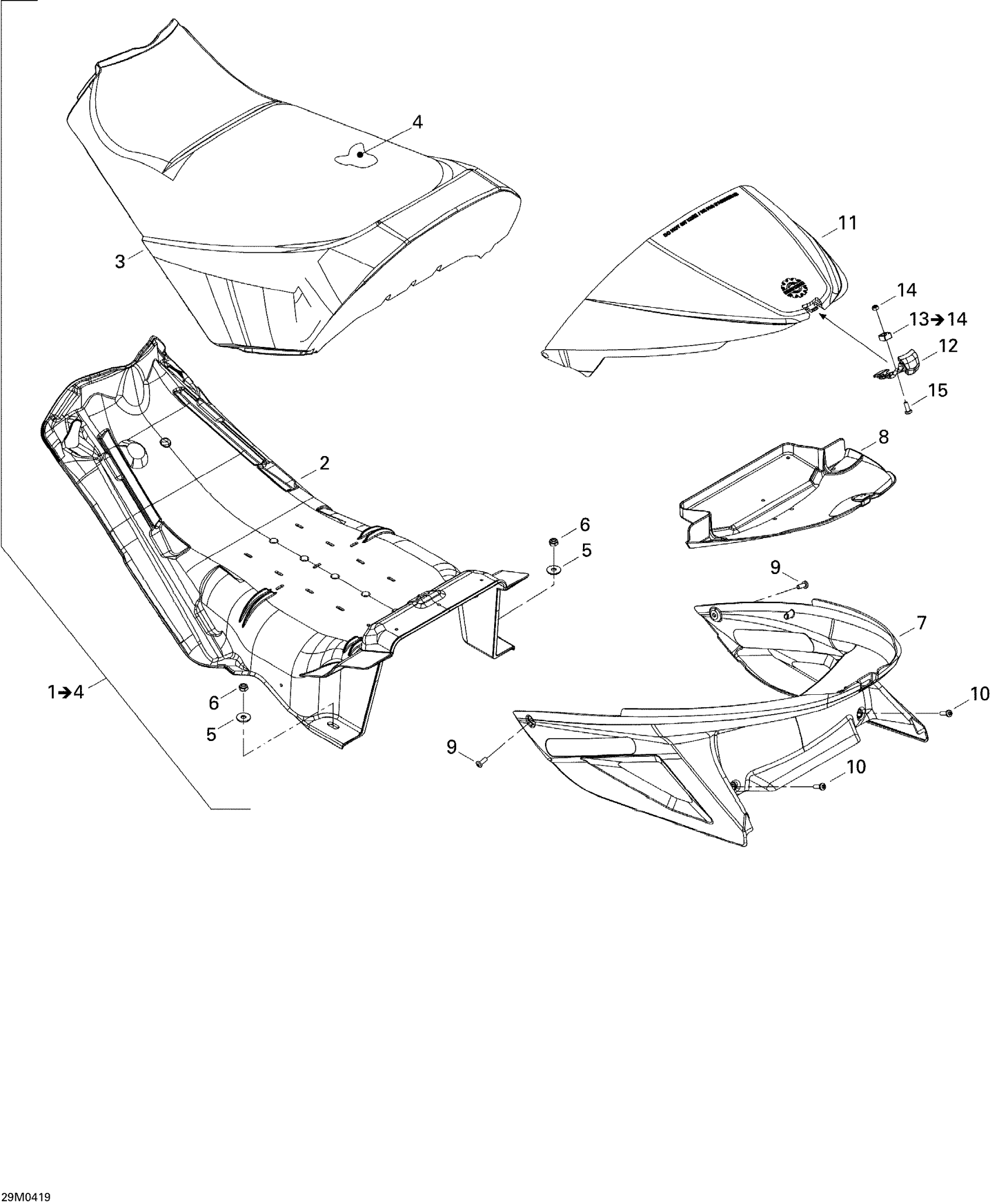

Ski-Doo MX Z 600 HO SDI Renegade, Early Intro, 2005 09- Seat Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Base

510004308

Unavailable

3

SEAT COVER - Call your local BRP dealership

510004274

Unavailable

4

SEAT FOAM - Call your local BRP dealership

510004275

Unavailable

5

Flat Washer 8 mm

234082410

$1.47

6

Hex. Elastic Stop Nut M8

232581414

$0.56

7

Viper Red, Trunk | Sport

510004422

Unavailable

8

Box Liner

510004231

Unavailable

9

Torx Truss Screw M6 X 16

250000721

$1.69

10

Torx Screw M6 X 20

250000722

$1.68

11

Deep Black, Cover

510004311

Unavailable

12

Bracket

510003917

Unavailable

13

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

14

Hex. Nut M6

232061600

$1.15

15

Torx Truss Screw M6 X 16

250000721

$1.69
