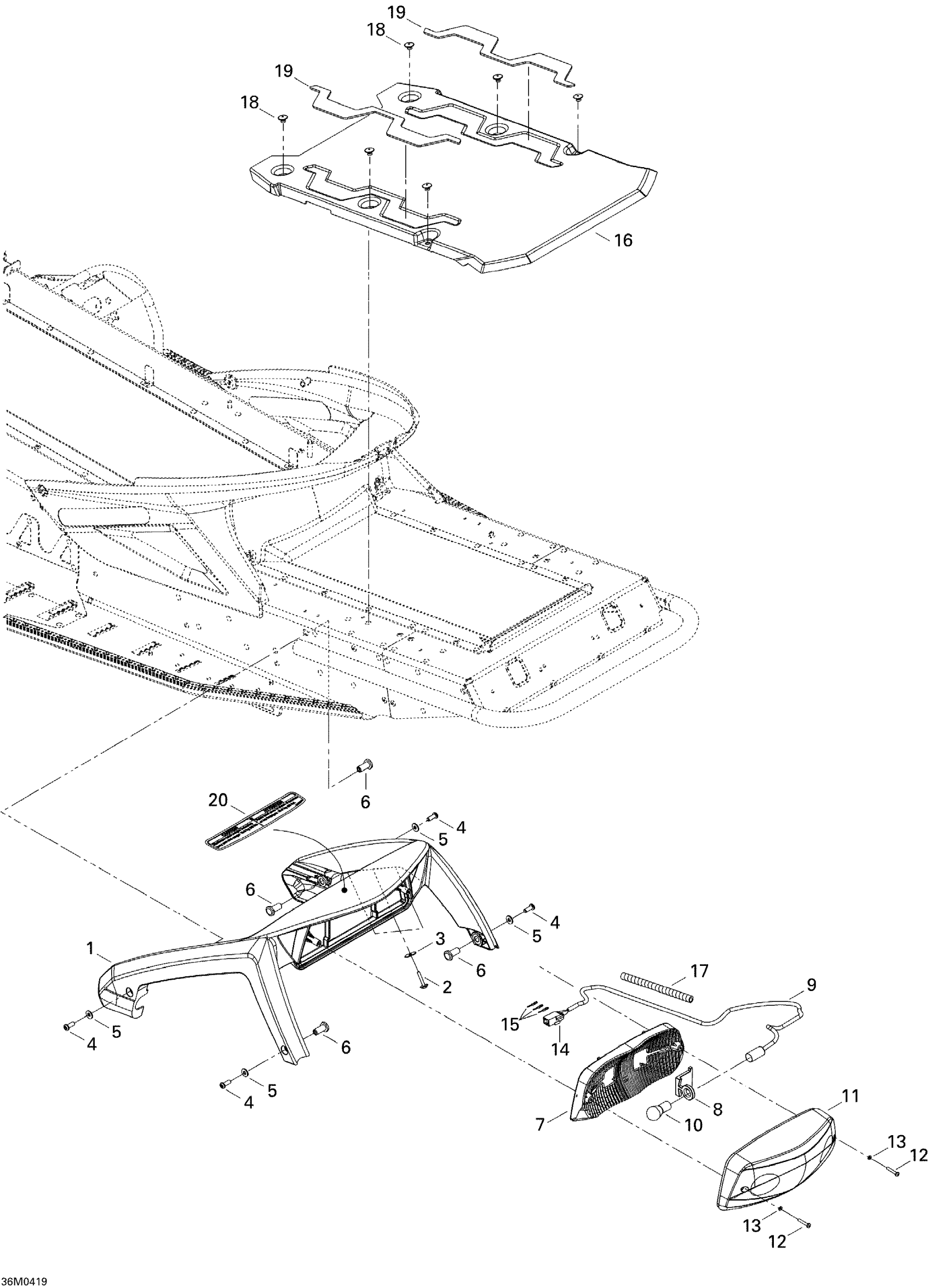

Ski-Doo MX Z 600 HO SDI Renegade, Early Intro, 2005 09- Luggage Rack Diagram

#

Description
Price

1

Luggage Rack

511000234

Unavailable

2

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90

3

Flat Washer

250200040

$1.90

4

SOCKET SCREW M6 X 16 - Call your local BRP dealership

250000168

Unavailable

5

Flat Washer

250200039

$0.74

6

Insert

511000260

Unavailable

7

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

8

Rubber Damper

414979411

Unavailable

9

FITTING - Call your local BRP dealership

511000248

Unavailable

10

Bulb

520000758

$9.10

11

Lens

511000315

$36.99

12

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Male Housing, 3 Circuits

515175494

$16.18

15

Male Terminal

515175232

$1.58

16

Radiator Cover

511000313

Unavailable

17

Tubing 6 Mm 3000Mm Long

219704425

$13.75

18

Pop Rivet 3/16"

293150103

$0.55

19

Carpet

511000316

Unavailable

20

Load Label 15.8 Kg

516001994

Unavailable
