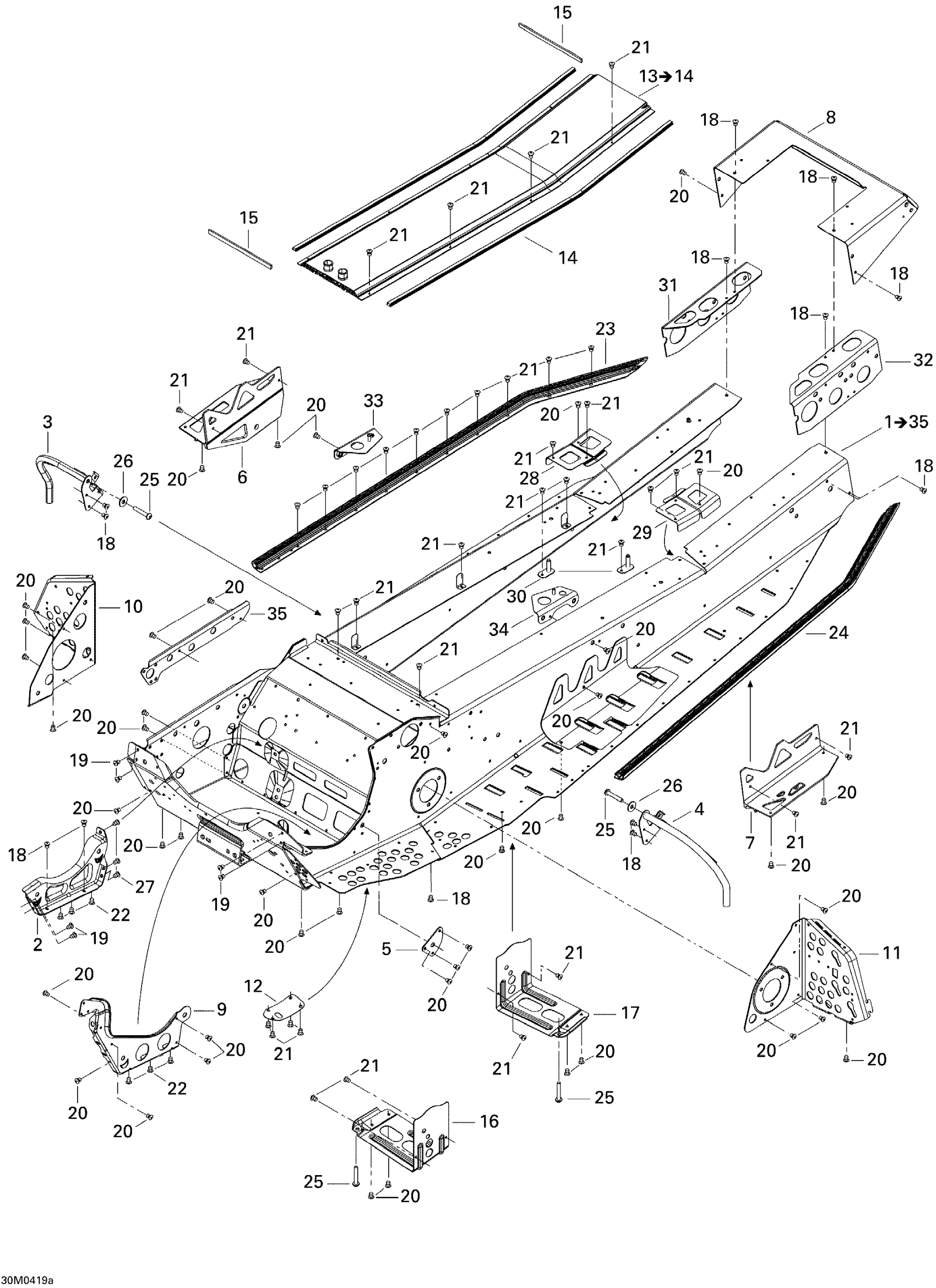

Ski-Doo MX Z 600 HO SDI Renegade, Early Intro, 2005 09- Frame Diagram
#
Description
Price
1
Frame | Includes items 1 to 35
415128814
Unavailable
2
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
3
RH TOE HOLD SUPPORT - Call your local BRP dealership
518324162
Unavailable
4
LH TOE HOLD SUPPORT - Call your local BRP dealership
518324163
Unavailable
5
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
6
RH Slide Bracket
518323752
Unavailable
7
LH Slide Bracket
518323739
Unavailable
8
Rear Cap
518323734
Unavailable
9
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
10
RH Footrest Reinforcement
518323805
Unavailable
11
LH Footrest Reinforcement
518323765
Unavailable
12
PLATE - Call your local BRP dealership
518324169
Unavailable
13
Rear Radiator | Includes 14 to 15
518324245
Unavailable
14
Radiator Protector
518324068
Unavailable
16
RH Reinforcement, Black
518323757
Unavailable
17
LH Reinforcement, Black
518323758
Unavailable
22
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
23
RH Roller
518323529
Unavailable
24
LH Roller
518323530
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
28
RH Frame Reinforcement
518323919
Unavailable
29
LH Frame Reinforcement
518323920
Unavailable
30
Tank Bracket
518322791
Unavailable
31
RH Frame Reinforcement
518324108
Unavailable
32
LH Frame Reinforcement
518323745
Unavailable
33
RH Frame Reinforcement, Black
518323336
Unavailable
34
LH Frame Reinforcement, Black
518323337
Unavailable
35
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
