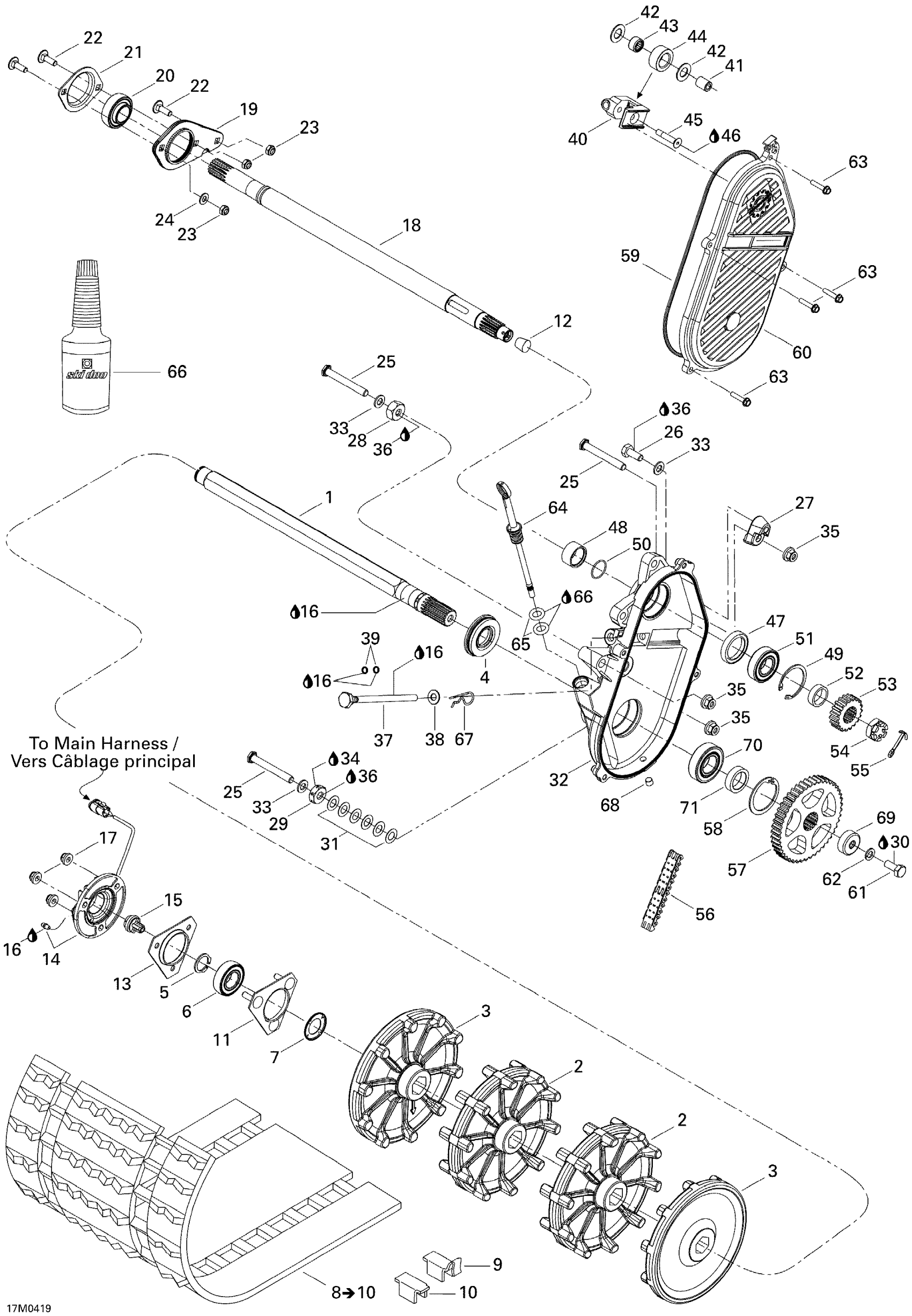

Ski-Doo MX Z 600 HO SDI Renegade, Early Intro, 2005 05- Drive Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

Unavailable

3

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

$899.99

TRACK 16 X 136 X 1.75 ASS'Y - Call your local BRP dealership | Includes 7 to 9, REN X 1,75

504152406

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Rotation Sensor

504152345

$71.99

15

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

19

SPACER - Call your local BRP dealership

504151968

Unavailable

20

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

21

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

22

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

23

Hex. Elastic Stop Nut M8

232581414

$0.56

24

Flat Washer 8 mm

234081410

$0.83

25

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

26

Hex. Screw M10 X 25

207102544

$1.37

27

Spacer

504152252

Unavailable

28

Spacer

504083800

Unavailable

29

SPACER - Call your local BRP dealership

504152237

Unavailable

30

Loctite 271, 10 ml

293800005

$26.99

31

WASHER - Call your local BRP dealership

504073700

Unavailable

32

Chaincase

504152312

Unavailable

33

Washer

503183800

$3.28

34

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

35

Hex. Flange Elastic Nut M10

233201414

$1.58

36

Loctite 243, 10 ml

293800060

$21.49

37

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

38

Flat Washer 10 mm

234001410

$1.26

39

O-Ring

414484400

$7.51

40

Chain Tensioner

504151951

Unavailable

41

SPACER - Call your local BRP dealership

504080200

Unavailable

42

WASHER - Call your local BRP dealership

504080300

Unavailable

43

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

44

ROLLER - Call your local BRP dealership

414531300

Unavailable

45

SCREW - Call your local BRP dealership

732601144

Unavailable

46

Loctite 271, 10 ml

293800005

$26.99

47

Oil Seal

293200158

$14.22

48

SPACER - Call your local BRP dealership

507031500

Unavailable

49

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

50

O-RING - Call your local BRP dealership

414876700

Unavailable

51

Ball Bearing

293350115

$12.11

52

SHIM - Call your local BRP dealership

504147200

Unavailable

53

Sprocket, 21 Teeth

504096200

$93.99

Sprocket, 19 Teeth

504153783

$111.49

54

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

55

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

56

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

$153.49

57

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

58

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

59

O-Ring

415046400

$24.99

60

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

61

Hex. Screw M10 X 25

207102544

$1.37

62

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

63

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

64

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

65

O-RING - Call your local BRP dealership

414969400

Unavailable

66

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

67

Hair Pin

414575600

$1.89

68

Plug 1/8”-27

504151921

$4.19

69

CAP - Call your local BRP dealership

504152104

Unavailable

70

Ball Bearing

504152005

$46.49

71

Shim

504152058

Unavailable
