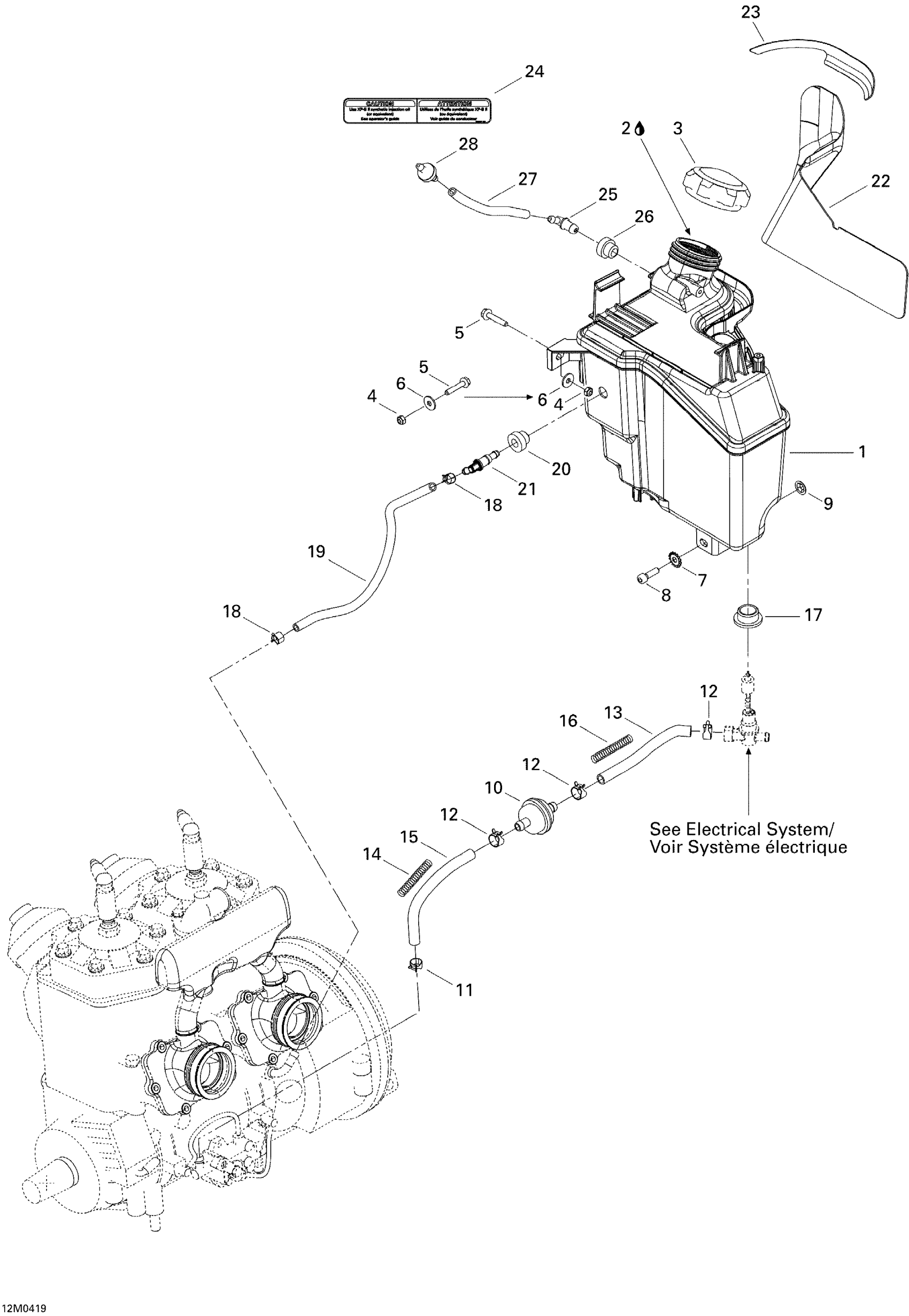

Ski-Doo MX Z 600 HO SDI Renegade, Early Intro, 2005 02- Oil System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000067

Unavailable

2

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Elastic Stop Nut M6

232561414

$0.55

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Flat Washer

250200082

$0.42

7

Lock Washer Serrated M6

250200041

$1.15

8

Socket Head Screw M6 X 20

205062044

$1.26

9

Push Nut

732610072

$2.19

10

Filter

414536500

$4.02

11

Spring Clamp

414420700

$0.72

12

Spring Clamp

414415200

$0.88

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

SPRING - Call your local BRP dealership

519000064

Unavailable

15

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

16

SPRING - Call your local BRP dealership

519000065

Unavailable

17

Insulating Ring

570023000

$5.61

18

Spring Clamp

414554800

$0.88

19

Polyurethane Hose 10000Mm Long

219704410

$56.99

20

Grommet

709200285

$9.69

21

Male Connector

414580700

$4.12

22

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

23

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

24

Warning Decal

516001794

Unavailable

25

Male Connector

414580700

$4.12

26

Grommet

513032908

$10.49

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

Check Valve

275500398

$10.99
