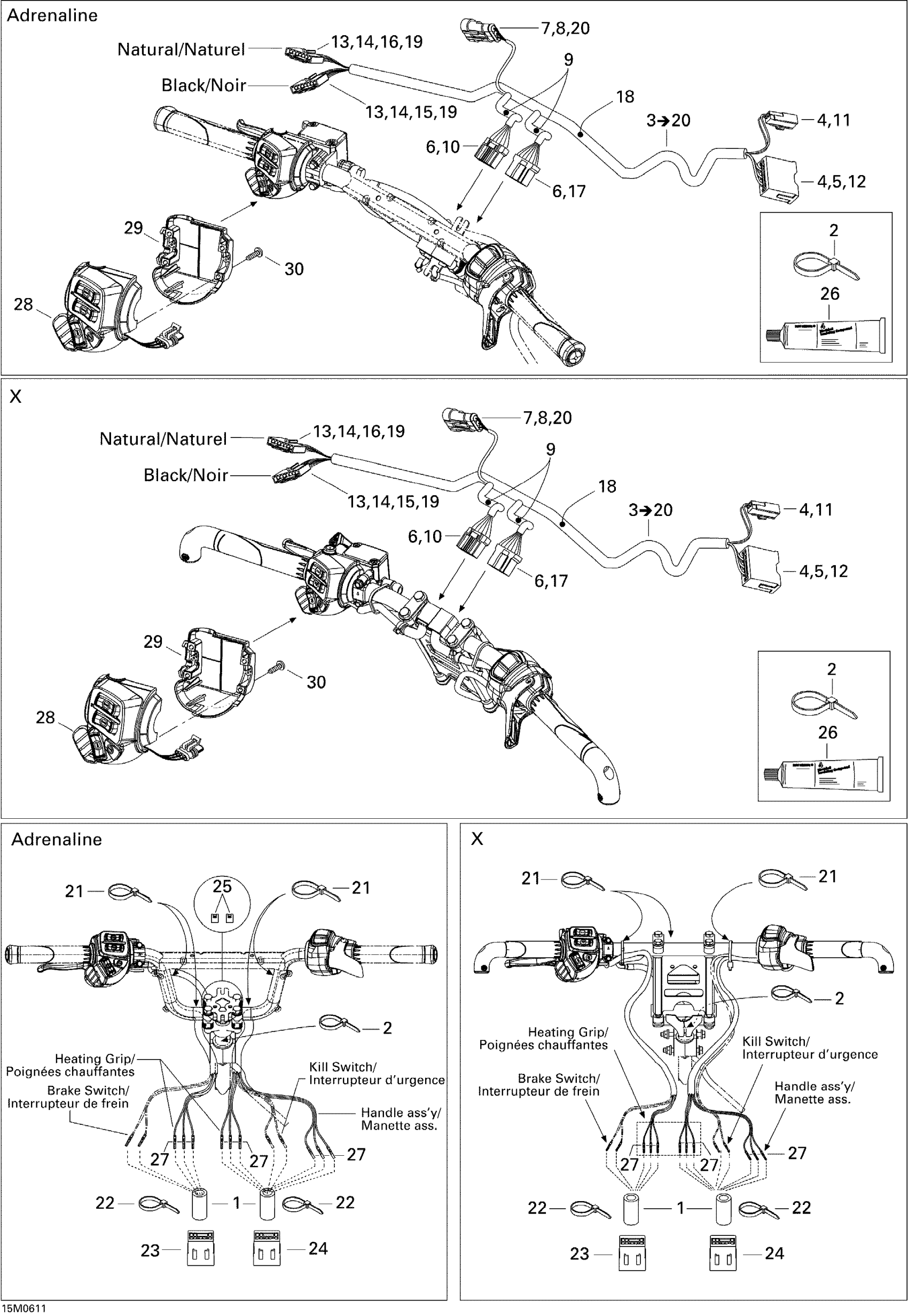

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 10- Steering Wiring Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

Tie Wrap 368 mm

293750008

$1.04

3

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 17 to 34

515176325

Unavailable

3

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 3 to 20

515176207

Unavailable

4

Male Terminal

515175232

$1.58

5

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

6

Female Terminal

515175231

$4.39

7

Housing

710000568

$11.12

8

Wire Seal

278001013

$3.28

9

Tubing 10 MM 1000MM Long

219704407

$2.79

10

Female Terminal Housing, 6 Circuits

515175543

$9.49

11

Male Housing, 2 Circuits

710000667

$8.32

12

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

13

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

14

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

15

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

16

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

17

Female Terminal Housing, 8 Circuits

515175819

$7.62

18

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

19

Female Terminal

515175941

$2.69

20

Male Terminal

515176164

$7.16

21

Tie-Rap 180 mm

414115200

$0.11

22

Tie Wrap 142 mm

293750002

$1.25

23

Male Terminal Housing, 6 Circuits

515175662

$8.79

24

Male Terminal Housing, 8 Circuits

515175817

$8.79

25

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Male Terminal

515175232

$1.58

28

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

29

Switch Housing Plate

515175926

$20.99

30

Torx Screw #8-18

250000263

$1.04
