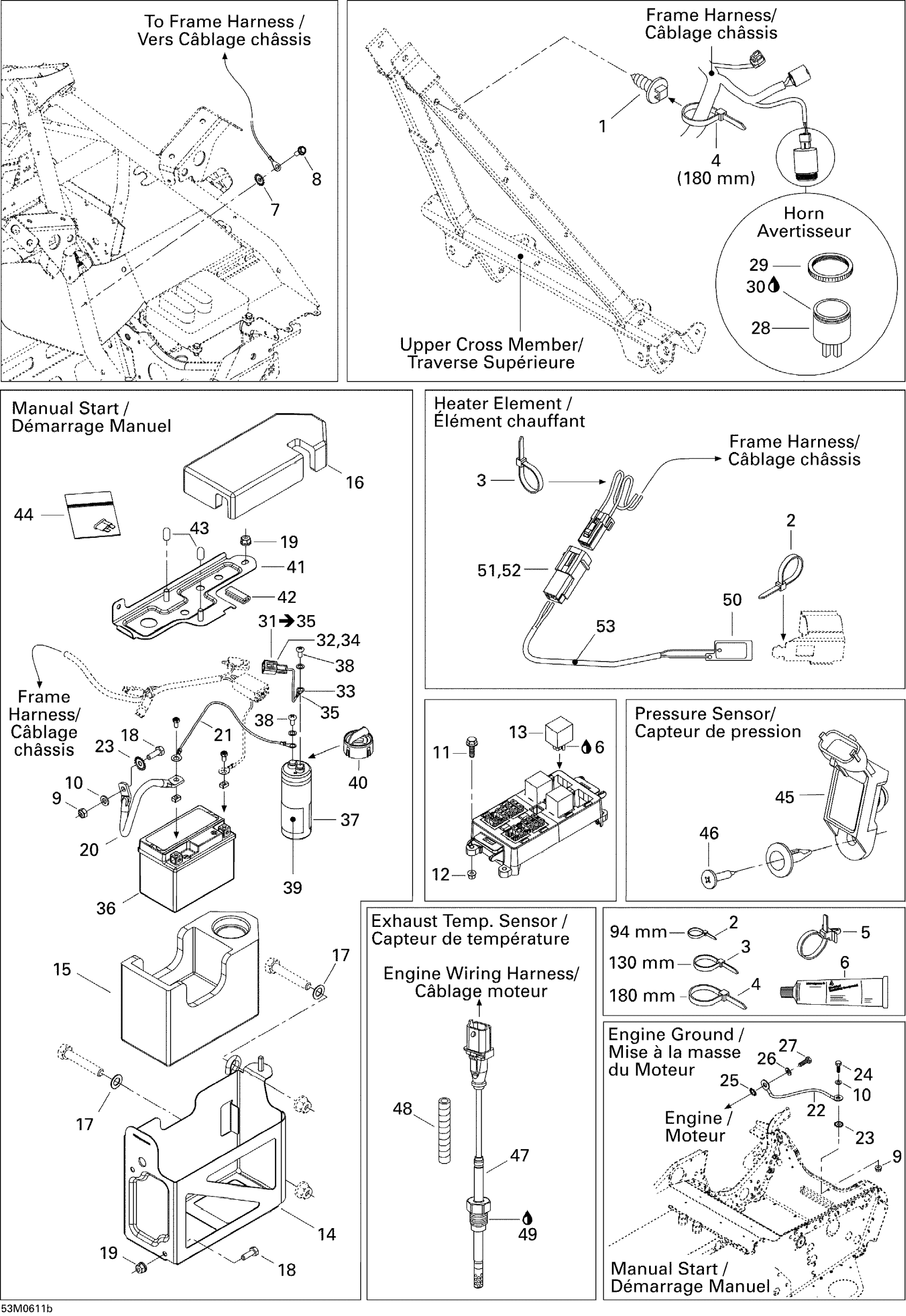

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 10- Electrical Accessories 2 Diagram

#

Description
Price

1

Mount Dart

293730040

$1.04

2

Tie Wrap 94 mm | 4X4

293750001

$1.03

3

Tie Wrap 142 mm

293750002

$1.25

4

Tie-Rap 180 mm

414115200

$0.11

5

Tie-Rap 173 mm

293750009

$1.04

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

8

Hex. Flange Screw M6 X 12

210261250

$1.90

9

Elastic Stop Nut M6

232561414

$0.55

10

Flat Washer 6 mm

234061410

$1.36

11

Hex.Flange Screw M5 X 20

207652044

$1.90

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

Relais *Relay This part replaces 410113604.

515177672

$46.49

14

Battery Support Black

515176230

Unavailable

15

CAPACITOR SUPPORT - Call your local BRP dealership | Manual Start

515176190

Unavailable

16

COVER - Call your local BRP dealership | Manual Start

515176114

Unavailable

17

Washer

503175800

$3.28

18

Hex. Screw M6 X 18

207161844

$0.76

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Ground Wire

515175749

$20.99

21

GROUND HARNESS, CAPACITOR - Call your local BRP dealership | Manual Start

515176119

Unavailable

22

BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership | Manual Start

515176276

Unavailable

23

Lock Washer Serrated M6

250200041

$1.15

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

25

Serrated Lock Washer 8 mm

234481608

$1.15

26

Flat Washer 8 mm

234081410

$0.83

27

Hex. Screw M8 x 16

207181644

$1.15

28

HORN - Call your local BRP dealership

515176035

Unavailable

29

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

CAPACITOR HARNESS - Call your local BRP dealership | Manual Start, Includes 36 to 39

515176120

Unavailable

32

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

33

Ring Terminal

515175504

$9.12

34

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Battery 12 Volt 4 Ah

415130961

Unavailable

37

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

38

Mechanical Screw | Manual Start

515176257

Unavailable

39

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

40

CAP - Call your local BRP dealership

515176211

Unavailable

41

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

42

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

43

Cap

515176141

$3.09

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Pressure Sensor

270600040

$199.99

46

Tuflock Phillips Plastic Screw

414745900

$1.69

47

Temperature Sensor

515176132

$339.99

48

Tubing 6 Mm 3000Mm Long

219704425

$13.75

49

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

50

Heater Element

515176256

Unavailable

51

Male Terminal Housing, 2 Circuits

515175654

$9.12

52

Male Terminal

515175232

$1.58

53

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99
