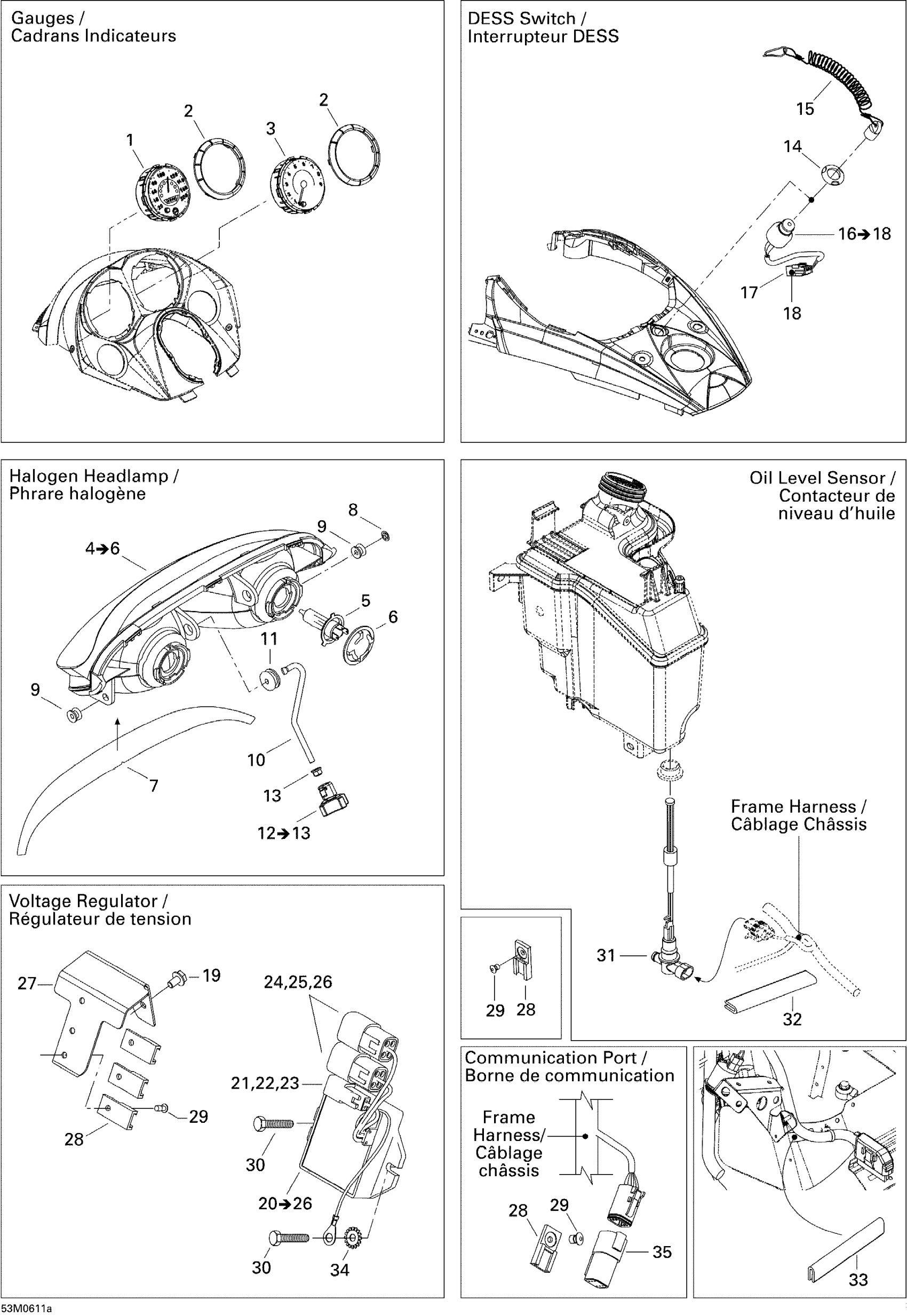

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 10- Electrical Accessories 1 Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176302

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

TACHOMETER - Call your local BRP dealership

515176303

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

8

Push Nut

732610072

$2.19

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

Unavailable

12

HANDLE - Call your local BRP dealership

515175975

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Safety Nut (DESS Switch)

278002963

$3.28

15

DESS

515178284

$84.99

16

DESS Switch

515177249

$114.99

17

Male Terminal

515175232

$1.58

18

Male Housing, 3 Circuits

515175494

$16.18

19

Hex. Forming Screw M6 X 10

210261050

$1.69

20

Voltage Regulator | Includes 32 to 38

515176243

$359.99

21

Male Housing, 2 Circuits

409206900

$9.59

22

Male Terminal

278000631

$4.39

23

Male Lock, 2 Circuits

409207500

$3.19

24

Female Housing, 4 Circuits

278000635

$16.49

25

Male Terminal

515175568

$9.12

26

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

27

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

28

Clip

270000141

$11.49

29

Avdel Rivet 3/16"

293150037

$0.56

30

Hex. Flange Screw M6 X 16

210261650

$1.67

31

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

32

TRIM - Call your local BRP dealership

509000263

Unavailable

33

Was 271000110 Protection Trim

219704353

$15.99

34

Lock Washer Serrated M6

250200041

$1.15

35

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable
