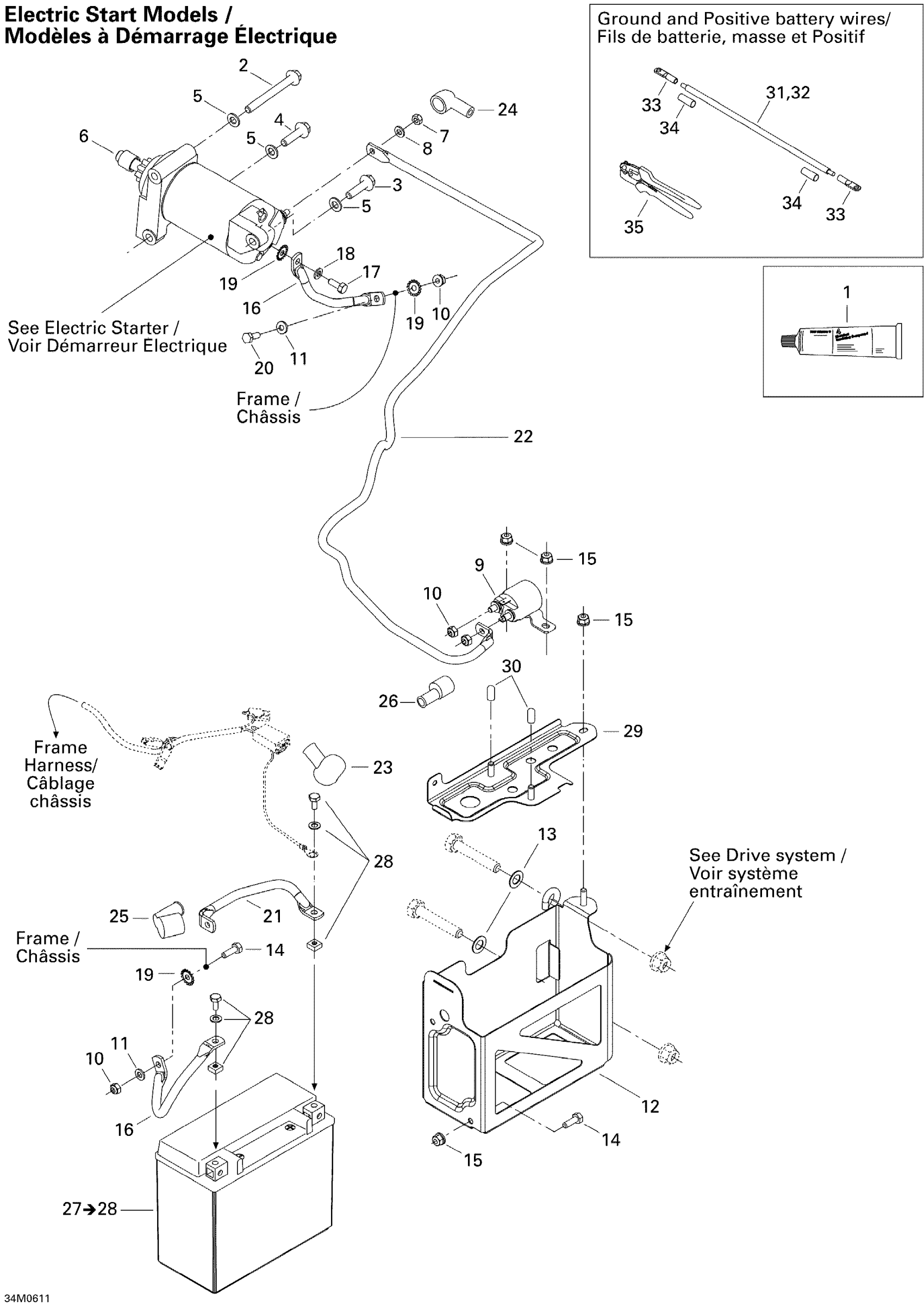

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.57

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

5

Flat Washer With Teflon 8 mm

250200008

$3.58

6

Electric Starter Ass'y

515176133

$319.49

7

Elastic Stop Nut M6

232561414

$1.78

8

Flat Washer 6 mm

234061410

$1.19

9

Starter Relay

515176011

$59.67

10

Elastic Stop Nut M6

232561414

$1.78

11

Flat Washer 6 mm

234061410

$1.19

12

Battery Support Black

515176230

Unavailable

13

Washer

503175800

$3.16

14

Hex. Screw M6 X 18

207161844

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Ground Wire

515175749

$18.63

17

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

18

Flat Washer 6 mm

234061410

$1.19

19

Lock Washer Serrated M6

250200041

$1.06

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

21

Battery Wire

515175904

$17.88

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Protection Cap

570151000

$17.88

24

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

25

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

26

Protector Cap | XT

515175919

$16.39

27

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

28

Battery Bolt Kit

250000282

$3.39

29

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

30

Cap

515176141

$2.82

31

Ground Cable Battery, no 6, meter)

278001680

Unavailable

32

Cable Battery, no 6, meter)

278001690

Unavailable

33

Terminal 45°, Small Hole

278001682

Unavailable

33

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

33

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

33

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

33

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

33

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

33

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

33

Terminal 30°, 2 Holes

278001776

Unavailable

34

Was 710000483 Heat Shrink Tubing

219704447

$72.36

35

Crimp Plier

529035730

Unavailable
