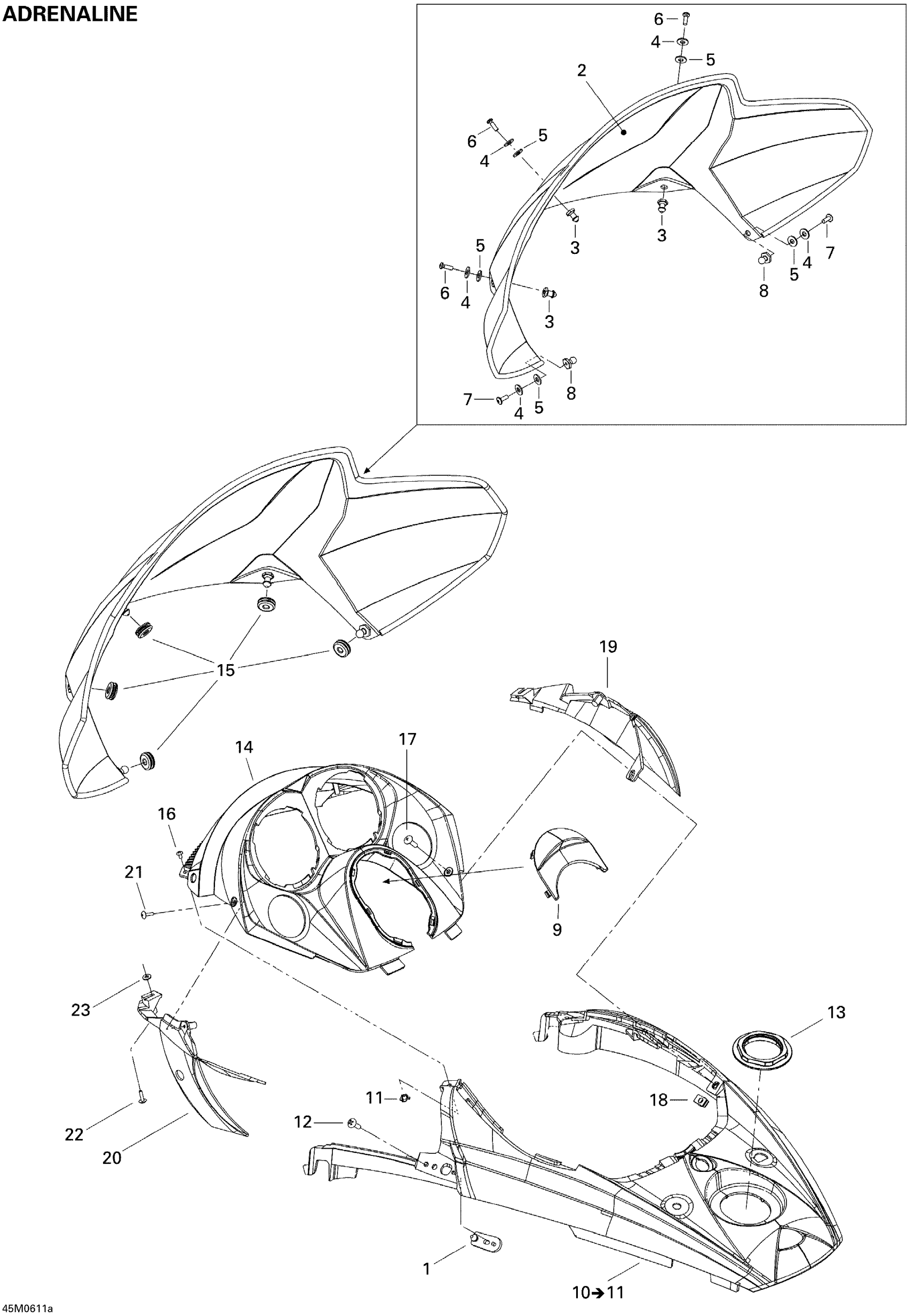

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 09- Windshield And Console ADR Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Windshield With Trim, Medium

517303511

$122.49

3

Knob

517303439

$4.55

4

Washer M5

250200025

$0.74

5

Rubber Washer 5 mm

250200024

$2.19

6

Torx Screw K50 X 16

250000720

$1.69

7

Torx Screw M5 X 14

250000742

$1.47

8

Knob

517245800

$11.12

9

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

10

Center Console | Includes 11 to 12

517303066

Unavailable

10

CENTER CONSOLE - Call your local BRP dealership | Includes 10 to 11

517303067

Unavailable

11

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

12

Torx Screw M6 X 20

250000722

$1.68

13

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

14

INDICATOR SUPPORT - Call your local BRP dealership

517303538

Unavailable

15

Grommet

517302841

$7.89

16

Torx Screw M4 X 8

250000127

$1.15

17

Torx Screw M5 X 20

250000724

$1.69

18

Panel Nut M5 X 0.8

250000958

$4.23

19

RH AIR DEFLECTOR - Call your local BRP dealership

517303413

Unavailable

20

LH AIR DEFLECTOR - Call your local BRP dealership

517303414

Unavailable

21

Phillips Screw K40 X 16

250000723

$0.98

22

Screw M4 X 16

250000725

$3.49

23

Flat Washer 4 mm, Stainless

234042600

$1.15
