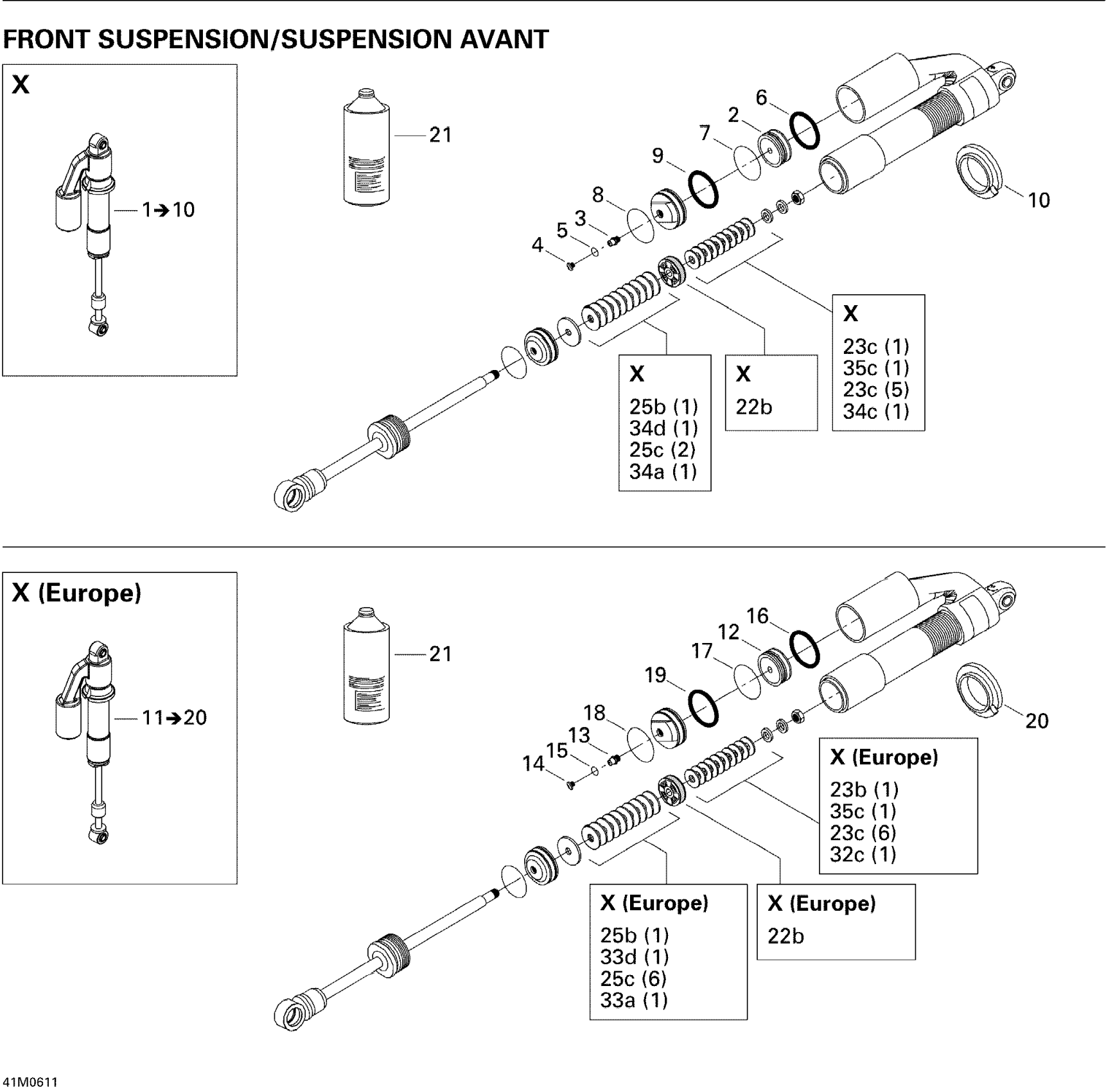

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 07- Take Apart Shock, Front Diagram

#

Description
Price

1

RH FRONT SHOCK - Call your local BRP dealership

505071204

Unavailable

1

LH Front Shock

505071205

Unavailable

2

FREE PISTON - Call your local BRP dealership

415093812

Unavailable

3

Air Valve

505070398

$20.99

4

Screw | Not Shown

505070399

$4.12

5

O-Ring

505070400

$4.54

6

O-Ring

415093807

$35.99

7

Piston Ring | Not Shown

415093806

$16.86

8

STOP RING - Call your local BRP dealership

415093805

Unavailable

9

O-Ring

415093804

$4.54

10

SPRING PLASTIC SEAT - Call your local BRP dealership

505071167

Unavailable

11

RH Front Shock | X Europe

505071949

Unavailable

11

LH Front Shock | X Europe

505071950

Unavailable

12

FREE PISTON - Call your local BRP dealership

415093812

Unavailable

13

Air Valve

505070398

$20.99

14

Screw | Not Shown

505070399

$4.12

15

O-Ring

505070400

$4.54

16

O-Ring

415093807

$35.99

17

Piston Ring | Not Shown

415093806

$16.86

18

STOP RING - Call your local BRP dealership

415093805

Unavailable

19

O-Ring

415093804

$4.54

20

SPRING PLASTIC SEAT - Call your local BRP dealership

505071167

Unavailable

21

Shock Oil, 1 Liter

293600035

$73.99

22a

Piston (C36)

414888304

Unavailable

22b

Not Available As Spare Part - Friction Washer

Unavailable

22c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

22d

Not Available As Spare Part - Friction Washer

Unavailable

22e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

22f

Not Available As Spare Part - Friction Washer

Unavailable

22g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

23a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

23b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

23c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

23d

Not Available As Spare Part - Friction Washer

Unavailable

24a

Not Available As Spare Part - Friction Washer

Unavailable

24b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

24c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

24d

Not Available As Spare Part - Friction Washer

Unavailable

25a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

25b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

25c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

25d

Not Available As Spare Part - Friction Washer

Unavailable

26a

Not Available As Spare Part - Friction Washer

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

26c

Not Available As Spare Part - Friction Washer

Unavailable

26d

Not Available As Spare Part - Friction Washer

Unavailable

27a

Not Available As Spare Part - Friction Washer

Unavailable

27b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

27c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

27d

Not Available As Spare Part - Friction Washer

Unavailable

28a

Not Available As Spare Part - Friction Washer

Unavailable

28b

Not Available As Spare Part - Friction Washer

Unavailable

28c

Not Available As Spare Part - Friction Washer

Unavailable

28d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

29a

Not Available As Spare Part - Friction Washer

Unavailable

29b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

29c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

29d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

30a

Not Available As Spare Part - Friction Washer

Unavailable

30b

Not Available As Spare Part - Friction Washer

Unavailable

30c

Not Available As Spare Part - Friction Washer

Unavailable

30d

Not Available As Spare Part - Friction Washer

Unavailable

31a

Not Available As Spare Part - Friction Washer

Unavailable

31b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

31c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

31d

Not Available As Spare Part - Friction Washer

Unavailable

32a

Not Available As Spare Part - Friction Washer

Unavailable

32b

Not Available As Spare Part - Friction Washer

Unavailable

32c

Not Available As Spare Part - Friction Washer

Unavailable

32d

Not Available As Spare Part - Friction Washer

Unavailable

33a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

33b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

33c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

33d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

34a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

34b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

34c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

34d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

35a

Not Available As Spare Part - Friction Washer

Unavailable

35b

Not Available As Spare Part - Friction Washer

Unavailable

35c

Not Available As Spare Part - Friction Washer

Unavailable

35d

Not Available As Spare Part - Friction Washer

Unavailable

36a

Not Available As Spare Part - Friction Washer

Unavailable

36b

Not Available As Spare Part - Friction Washer

Unavailable

36c

Not Available As Spare Part - Friction Washer

Unavailable

36d

Not Available As Spare Part - Friction Washer

Unavailable

37a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

37b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

37c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

37d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
