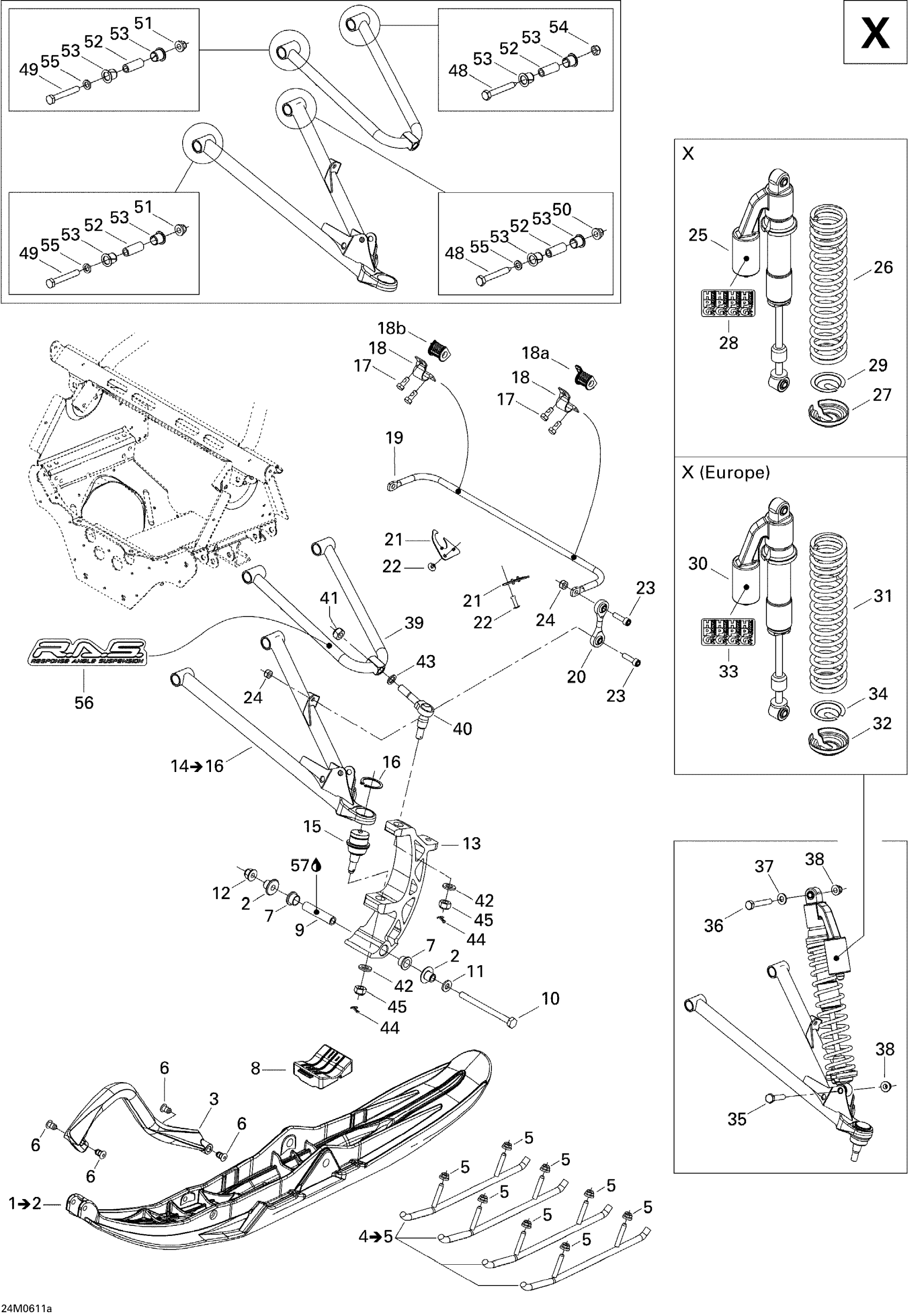

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 Front Suspension And Ski X Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$160.74

1

Deep Black, LH Pilot 5.7 Ski

505072854

$175.35

2

Ski Bushing

505071781

$15.35

3

Yellow Handle | Model-MX-Z TNT

505070917

$41.51

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$134.58

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

Spacer

506133300

$19.97

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Washer

732900049

$0.57

12

Flange Nut M10

732610084

$5.49

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512300

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512200

Unavailable

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

18a

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

18b

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

19

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

20

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

21

PLUG - Call your local BRP dealership

505071253

Unavailable

22

Pop Rivet 3/16"

293150103

$0.54

23

Socket Head Screw M8 X 30

205083044

$0.92

24

Hex. Elastic Stop Nut M8

232581414

$0.47

25

RH FRONT SHOCK - Call your local BRP dealership

505071204

Unavailable

25

LH Front Shock

505071205

Unavailable

26

SPRING - Call your local BRP dealership | (Europe)

505071834

Unavailable

27

Spring Stopper

706200881

$10.30

28

Shock Decal | X

516002748

Unavailable

29

Cap

706200785

$4.42

30

RH Front Shock | X Europe

505071949

Unavailable

30

LH Front Shock | X Europe

505071950

Unavailable

31

SPRING - Call your local BRP dealership | (Europe)

505071834

Unavailable

32

Spring Stopper

706200881

$10.30

33

Shock Decal | X

516002748

Unavailable

34

Cap

706200785

$4.42

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

37

Washer

503189564

$0.72

38

Hex. Flange Elastic Nut M10

233201414

$1.26

39

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

40

Upper Ball Joint

505072257

$16.89

41

Hex. Flange Elastic Nut M12

250000047

$1.56

42

Flat Washer 12 mm

234021410

$0.68

43

Washer

503189276

$3.20

44

Cotter Pin

211400017

$0.25

45

Hex. Flange Elastic Nut M12

250000047

$1.56

48

Hex. Screw M10 X 75

250001063

$9.74

49

Hex. Screw M10 X 75

250001063

$9.74

50

Hex. Flange Elastic Nut M10

250100165

$0.70

51

Hex. Flange Elastic Nut M10

250100165

$0.70

52

Bushing

505070567

$19.97

53

Arm Bushing

505070566

$3.14

54

Elastic Flange Nut M10

232501416

$1.25

55

Washer

503189564

$0.72

56

R.a.s. Suspension Decal

516002747

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
