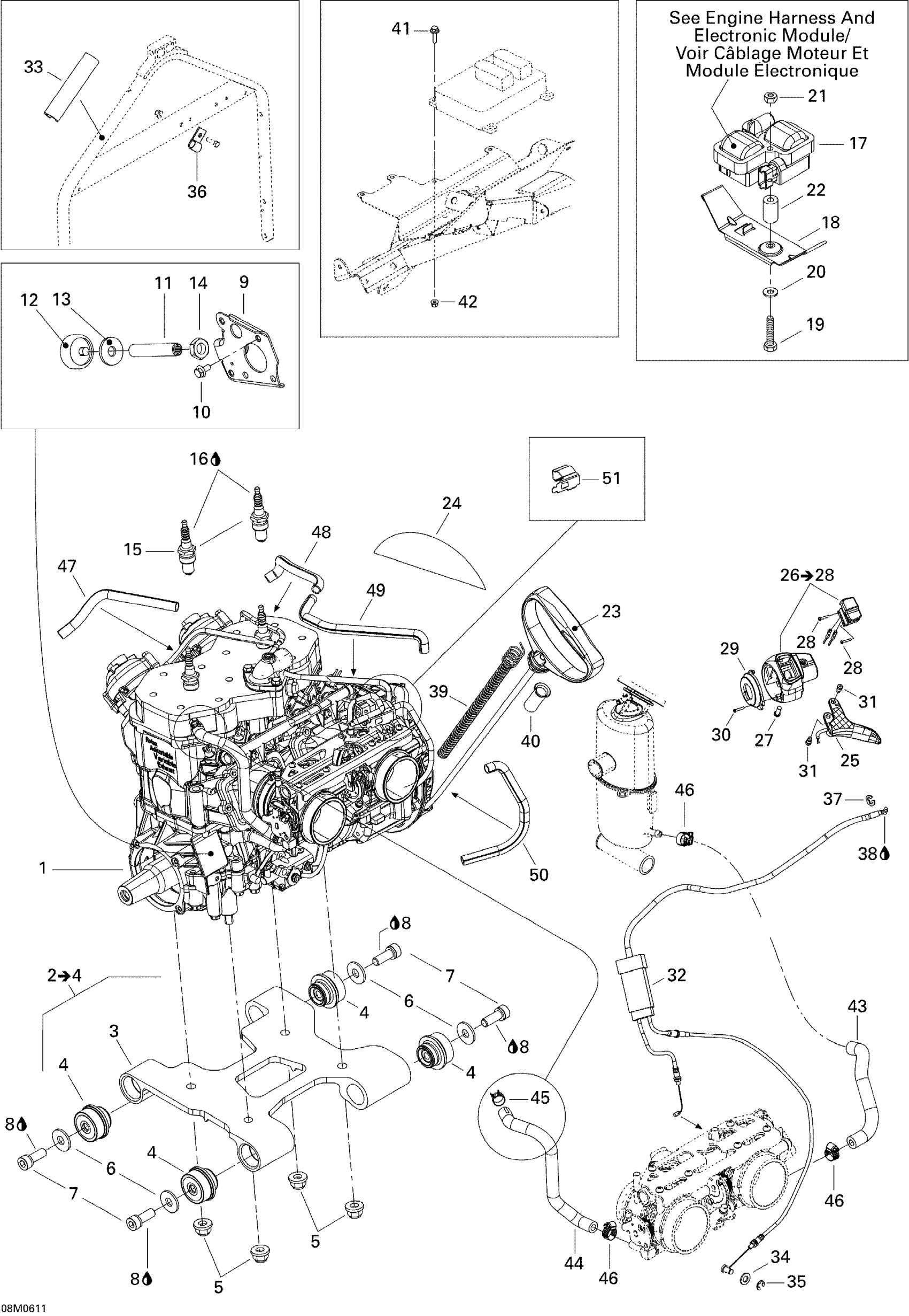

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine 593 HO SDI

400509768

Unavailable

2

Engine Support Ass'y | Includes 2 to 4

512060050

Unavailable

3

ENGINE SUPPORT - Call your local BRP dealership

512060051

Unavailable

4

Rubber Mount

512059691

$47.99

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

Flat Washer M10 | 4X4

250200014

$1.49

7

Socket Head Screw M10 X 25

205002544

$1.48

8

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

9

PLATE - Call your local BRP dealership

512059840

Unavailable

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

11

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

12

STOPPER - Call your local BRP dealership

512059610

Unavailable

13

WASHER - Call your local BRP dealership

512059057

Unavailable

14

Hex. Jam Nut M14

232170411

$1.48

15

Spark Plug NGK BR8ECS

512060029

$10.59

16

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

17

Ignition Coil

278001546

$158.99

18

COIL SUPPORT - Call your local BRP dealership

512059865

Unavailable

19

Hex. Screw M6 X 45

207064544

$2.11

20

Flat Washer 6 mm

234061410

$1.36

21

Elastic Stop Nut M6

232561414

$0.55

22

SPACER - Call your local BRP dealership

512059812

Unavailable

23

Starter Grip

572084400

$14.83

24

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

25

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

$38.99

27

Socket Head Screw M6 X 16

250000036

$9.00

28

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

29

COVER - Call your local BRP dealership

512059698

Unavailable

30

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

31

Flange Screw

732601143

$4.12

32

THROTTLE CABLE - Call your local BRP dealership

512060086

Unavailable

32

THROTTLE CABLE - Call your local BRP dealership

512060087

Unavailable

33

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

34

Flat Washer 8 mm, Nylon

234081100

$1.39

35

Circlip

414753500

$0.71

36

Open Clamp

414176000

$1.99

37

Circlip

414274500

$0.90

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

40

TUBE - Call your local BRP dealership

512059536

Unavailable

41

Hex.Flange Screw M5 X 20

207652044

$1.90

42

Hex. Flange Elastic Nut M5

233251414

$1.04

43

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

44

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

45

Universal Spring Clamp

513033029

$5.39

46

Tridon Gear Clamp

293650170

$1.99

47

Was 409901700 Tubing (9 mm)

219704399

$84.99

48

Was 409901700 Tubing (9 mm)

219704399

$84.99

49

Was 409901700 Tubing (9 mm)

219704399

$84.99

50

Was 409901700 Tubing (9 mm)

219704399

$84.99

51

Heating Element Bracket

512059809

Unavailable
