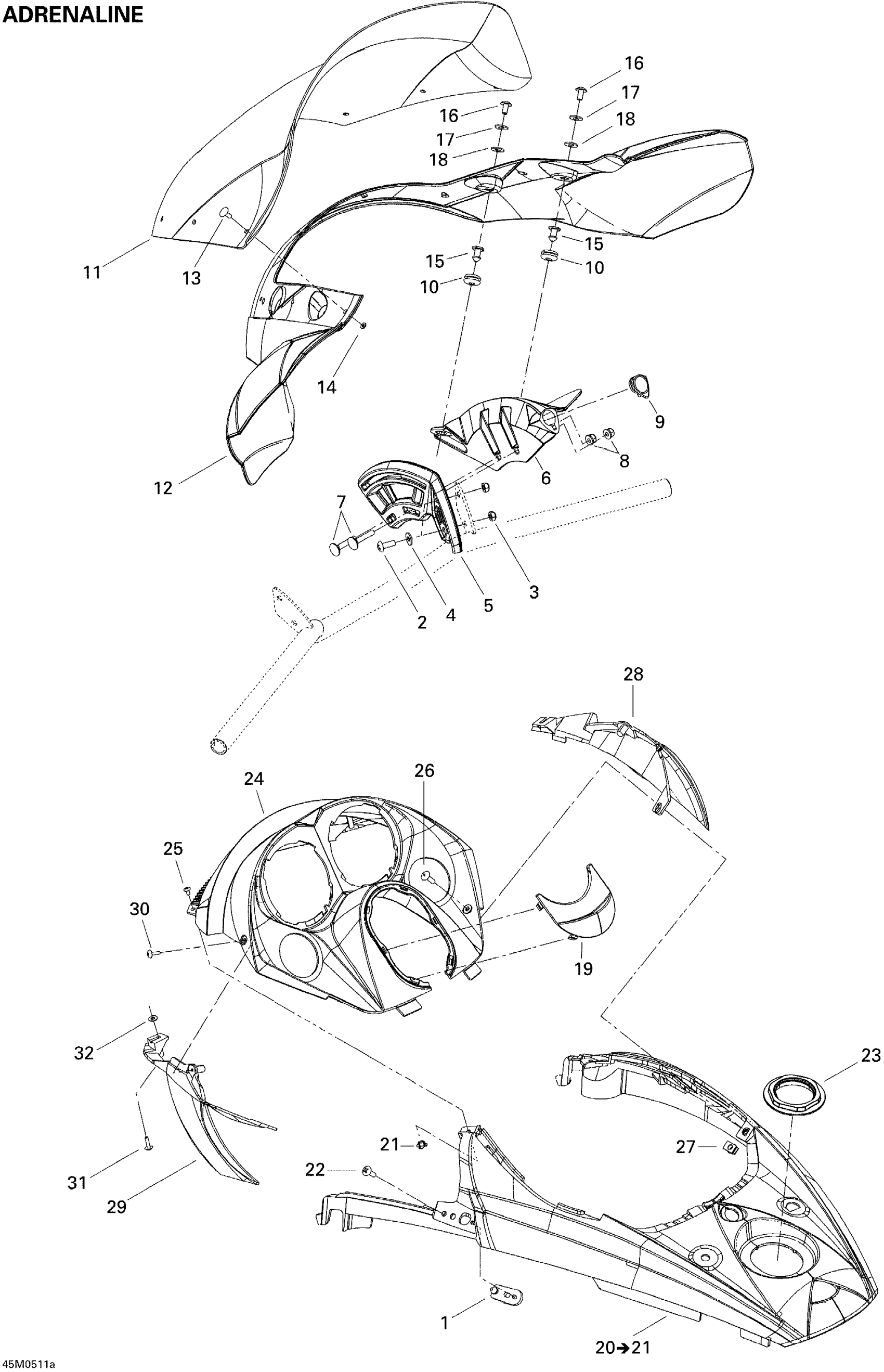

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 09- Windshield And Console Adrenaline Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Torx Truss Screw M6 X 16

250000721

$1.69

3

Hex. Nut M6

250000135

$0.51

4

Flat Washer 6 mm

234062100

$1.26

5

RH Fixing Plate

517303076

Unavailable

5

LH Fixing Plate

517303078

Unavailable

6

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303077

Unavailable

6

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303079

Unavailable

7

Carriage Bolt M6 X 35

207763554

$2.11

8

Hex. Flange Elastic Nut M6

233261494

$1.58

9

CAP - Call your local BRP dealership

517302806

Unavailable

10

Grommet

517302841

$7.89

11

Windshield, Medium

517302443

$122.49

12

Air Deflector

517302816

$99.99

13

Windshield Dart

517303070

$1.09

14

Push Nut

250100034

$1.29

15

Knob

517303439

$4.55

16

Torx Screw K50 X 16

250000720

$1.69

17

Washer M5

250200025

$0.74

18

Rubber Washer 5 mm

250200024

$2.19

19

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

20

Center Console | Includes 11 to 12

517303066

Unavailable

21

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

22

Torx Screw M6 X 20

250000722

$1.68

23

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

24

Indicator Support | Sport

517303471

Unavailable

25

Torx Screw M4 X 8

250000127

$1.15

26

Torx Screw M5 X 20

250000724

$1.69

27

Panel Nut M5 X 0.8

250000958

$4.23

28

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

Unavailable

29

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

30

Phillips Screw K40 X 16

250000723

$0.98

31

Screw M4 X 16

250000725

$3.49

32

Flat Washer 4 mm, Stainless

234042600

$1.15
