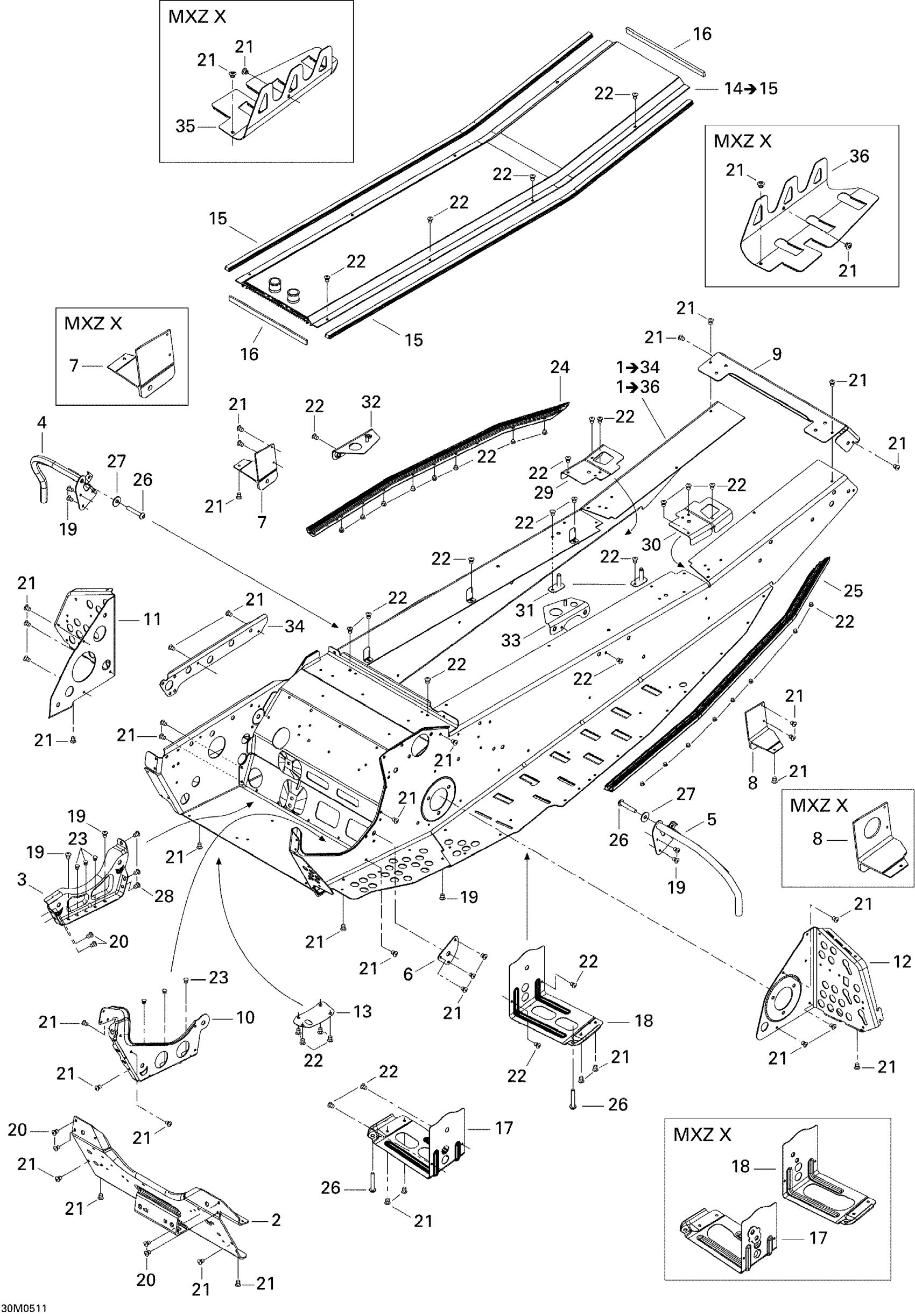

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 09- Frame Diagram

#

Description
Price

1

Frame | Includes 1 to 34

415128920

Unavailable

1

Frame | Includes 1 to 36 / X

415128921

Unavailable

2

FRONT PAN - Call your local BRP dealership

518323239

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH Slide Bracket

518323572

Unavailable

7

RH SLIDE BRACKET - Call your local BRP dealership

518324488

Unavailable

8

LH SLIDE BRACKET - Call your local BRP dealership

518323573

Unavailable

8

LH SLIDE BRACKET - Call your local BRP dealership

518324489

Unavailable

9

REAR CAP - Call your local BRP dealership

518324409

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

Rear Radiator | Includes 17 to 18

518324242

Unavailable

15

RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.

415012300

Unavailable

16

GASKET - Call your local BRP dealership

293200096

Unavailable

17

RH Reinforcement, Black

518323753

Unavailable

17

RH Reinforcement, Black

518324634

Unavailable

18

LH Reinforcement, Black

518323754

Unavailable

18

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

19

Avex Rivet

390909200

$0.30

20

Avex Rivet

390909100

$0.30

21

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402200

$0.35

22

Pop Rivet 3/16"

390402400

$0.35

23

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

24

RH Roller

518323551

Unavailable

25

LH Roller

518323552

Unavailable

26

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

27

Flat Washer 8 mm

234082410

$1.47

28

Hemlock Rivet, 6.5 mm

293150096

$3.27

29

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

30

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

31

Tank Bracket

518322791

Unavailable

32

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

33

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

34

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable

35

RH Tunnel Liner

518323307

Unavailable

36

LH Tunnel Liner

518325269

$48.99
