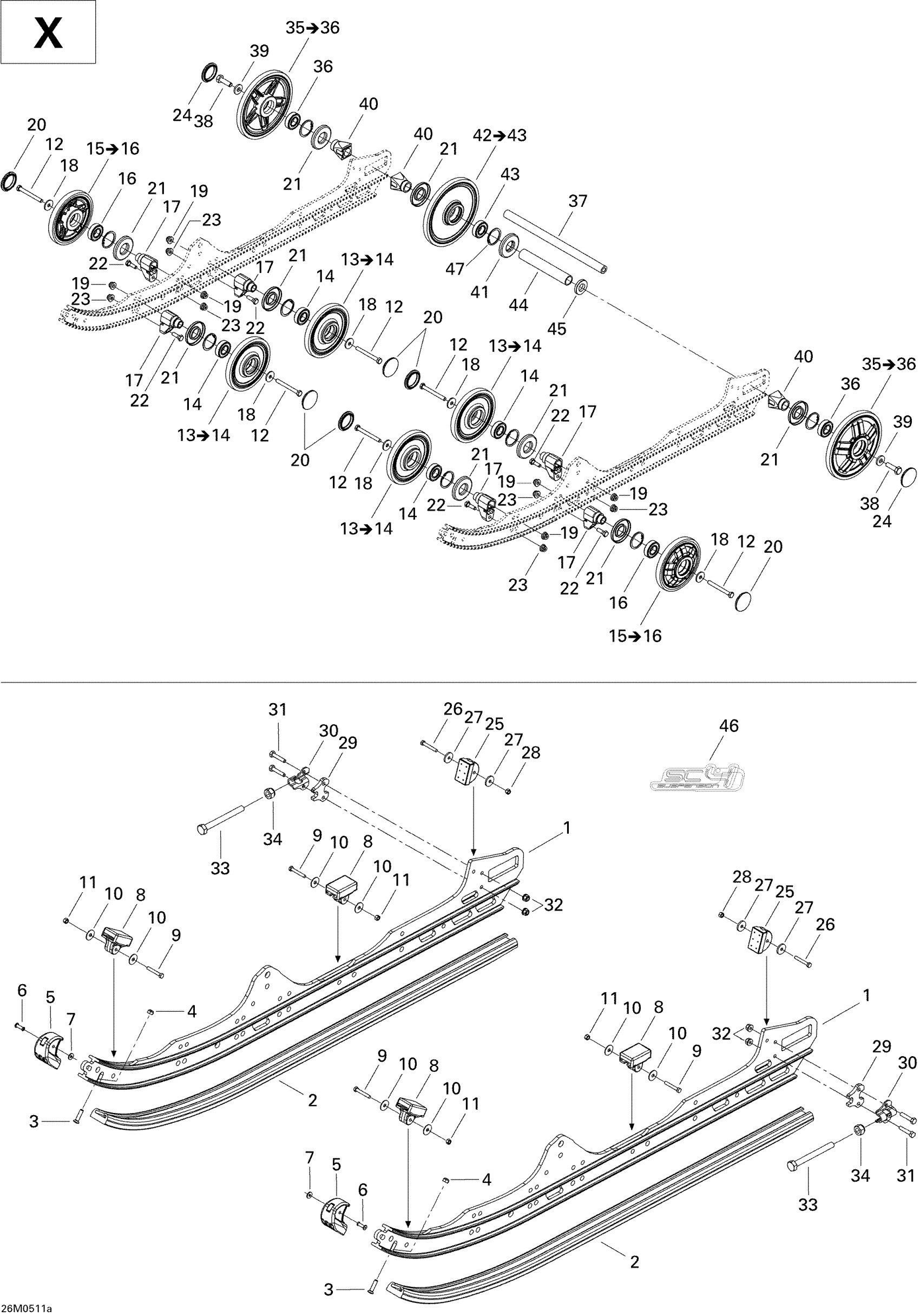

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 08- Rear Suspension X Diagram

#

Description
Price

1

Runner 121

503190571

Unavailable

2

Slider Shoe

503190573

$29.49

2

Slider Shoe

503190629

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503192299

$24.99

6

Pop Rivet 3/16”

293150087

$0.93

7

Washer

517124300

$0.19

8

Rubber Stopper

503190576

$12.99

9

Hex. Screw M5 X 30

207053044

$1.16

10

Washer

250200016

$0.74

11

Elastic Stop Nut M5

232551414

$0.87

12

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

13

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

14

Ball Bearing | Package-STD

503190396

$14.30

15

Wheel 141 With Pattern Ass'y, Yellow

503191312

$37.99

16

Ball Bearing | Package-STD

503190396

$14.30

17

Support

503190580

Unavailable

18

Washer

211200041

$3.17

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Wheel Cap

570063600

$3.49

21

Labyrinth Seal

503190434

$6.09

22

Hex. Screw M8 X 25

207182544

$0.90

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Wheel Cap

570063600

$3.49

25

Rubber Stopper

503191291

$19.99

26

Hex. Screw M5 X 30

207053044

$1.16

27

Washer

250200016

$0.74

28

Elastic Stop Nut M5

232551414

$0.87

29

Spacer

503193250

$16.49

30

Tensioner

503192583

$8.29

31

Hex. Screw M6 X 30

207063044

$1.26

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.69

35

Wheel 180 With Pattern Ass'y, Yellow | Includes 34 to 35

503190342

$51.99

36

Ball Bearing | Package-STD

503190396

$14.30

37

Rear Axle

503190429

$59.99

38

Hex. Screw With Nylon

250000019

$1.69

39

Washer

503190439

$5.93

40

Rear Wheel Spacer

503190428

$8.14

41

Labyrinth Seal

503190682

$6.19

42

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

43

Ball Bearing | Package-STD

503190396

$14.30

44

Spacer

503196317

$18.49

45

Washer

503190432

$14.22

46

SC4 Decal

516002615

Unavailable

47

CIRCLIP - Call your local BRP dealership

371901700

Unavailable
